3. Remove the one-way clutch and inspect both sides
of drive rollers
q
. Inspect the roller contact surface
w
inside the hub for wear, damage or uneven
surface.
4. Inspect drive surface of starter gear
e
and bushing
r
for wear, damage or uneven surface. If any starter
one-way clutch component is worn or damaged,
replace the clutch and starter gear as an assembly.
STARTER ONE-WAY CLUTCH ASSEMBLY
1. Install one-way clutch in clutch hub with flange of
clutch
q
engaged in recess.
2. Clean screw threads in flywheel to remove all oil or
grease.
3. Place one-way clutch on flywheel and install the
three screws. Torque screws to specification.
TORQUE
One-Way Clutch Retaining Screws:
106 in-lbs (12 Nm)

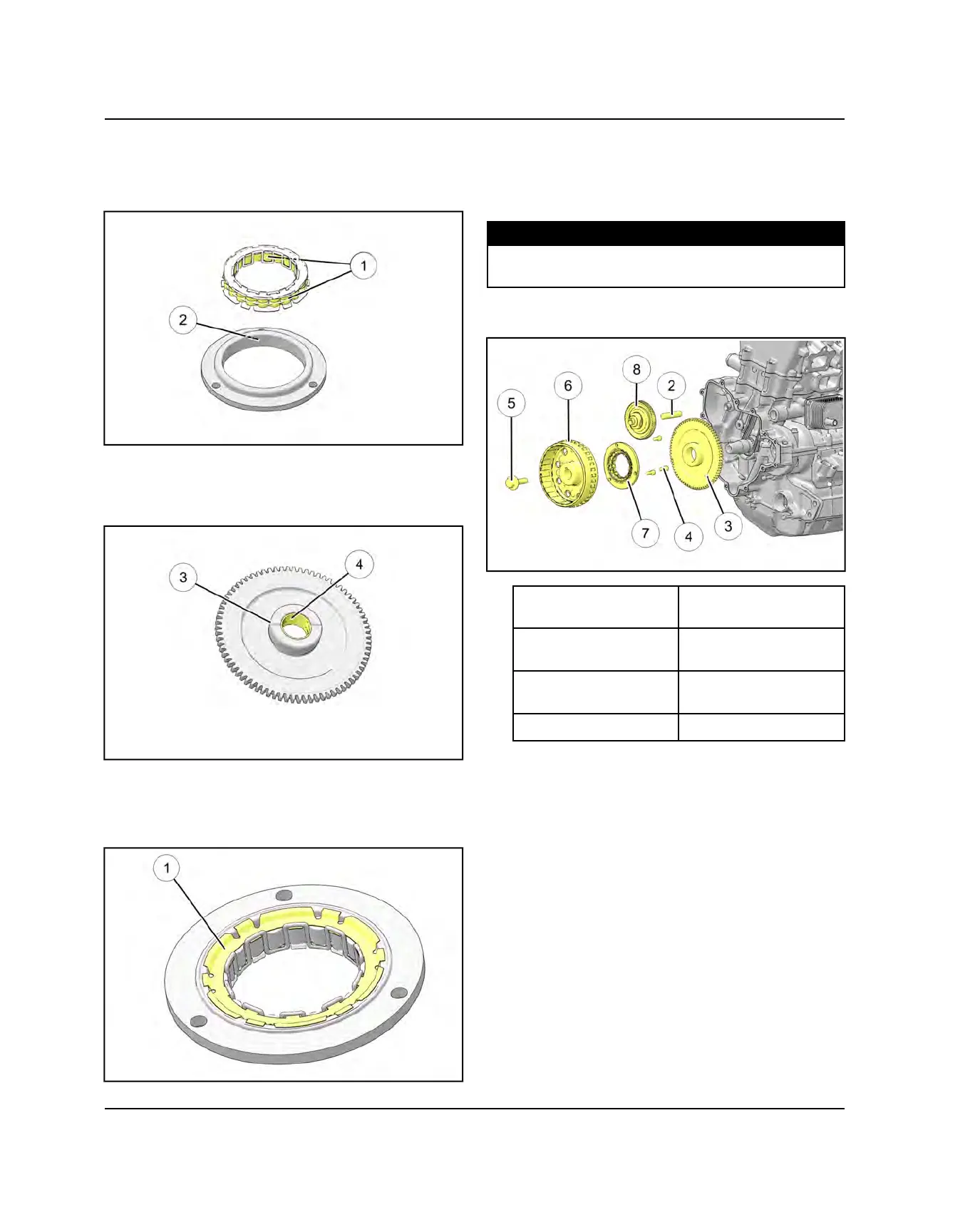

4. Reassemble starter one-way clutch and gear using
the following illustration.
w
Torque Limit Gear
Pin
y
Flywheel
e
Starter Gear
u
One-Way Clutch
Asm
r
Screws
i
Torque Limit Gear
Asm
t
Bolt
5. If starter gear was replaced, inspect the torque limit
gear.
