11
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
11.47

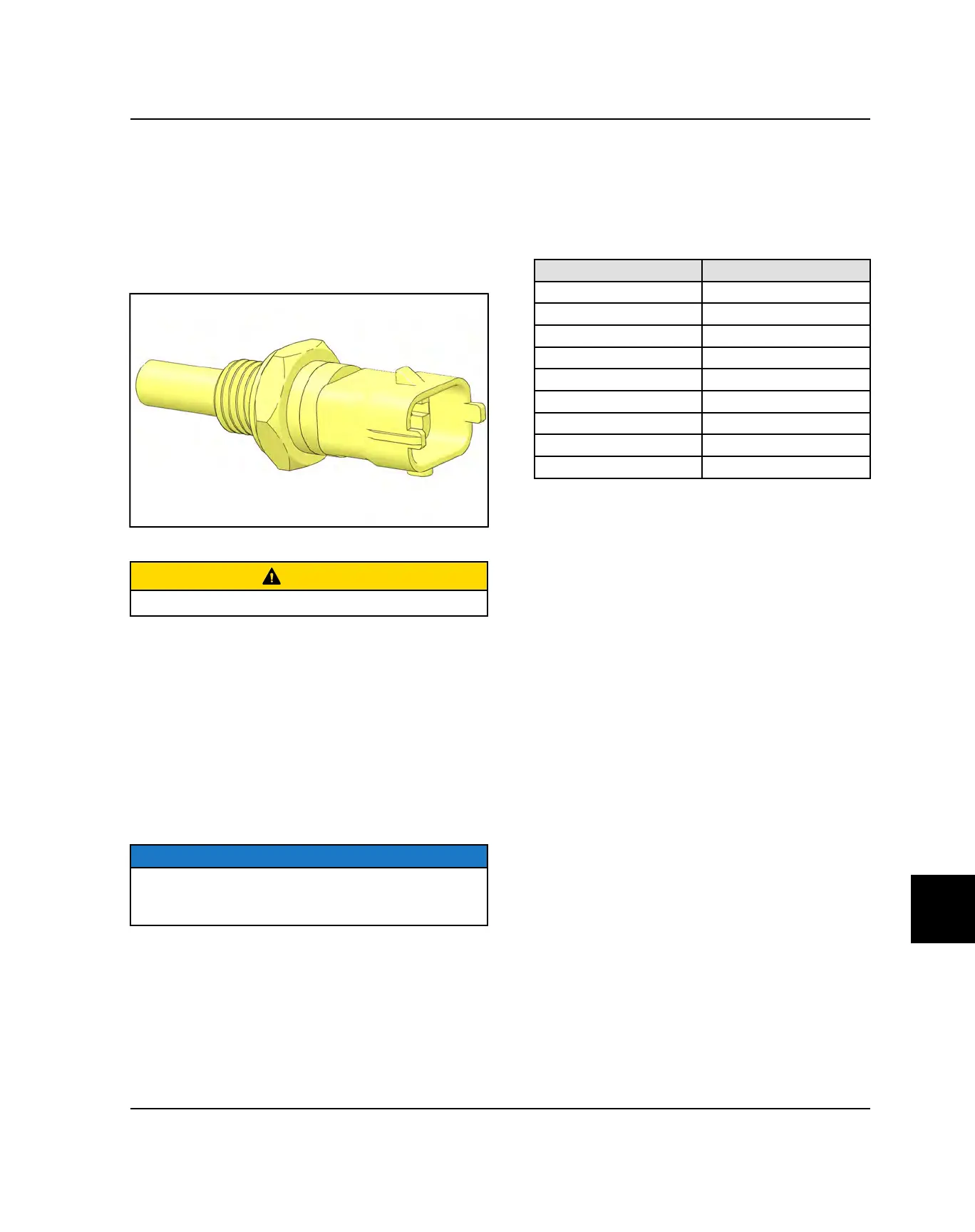

ECT SENSOR TEST
SYSTEM OPERATION TEST
To quickly rule out other components and wiring related
to the ECT, disconnect the harness from the ECT sensor
and start the engine. After a few seconds, the fan should
turn on and the “Check Engine” indicator should display
on the instrument cluster. This indicates all other
components are working properly.
RESISTANCE VS. TEMPERATURE TEST
CAUTION
Contact with boiling water or steam may cause burns.
1. Disconnect the ECT from the main harness.
2. Remove the ECT.
3. Fill a pot of water 1/2 way with water.
4. Place a pot of water on a hot plate.
5. Place the sensor / tip of a thermometer in the water,
ensure the display is legible as you will reference the
thermometer throughout the test.
6. Safely position the ETC so that the sensor is
submerged in water from the threads down and the
connector may be readily probed.
NOTICE
Use a wire or other type of prop to ensure the sensor is
properly supported and the tip of the sensor is touching
water only.
7. Prepare a table similar to the one below, then heat
the water and document the resistance measured
between pin 1 and pin 2 as the water and sensor
warm. If the Sensor tests out of tolerance, the sensor
should be replaced.
ECT Sensor Resistance Readings
TEMPERATURE °F (°C)
RESISTANCE
68 °F (20 °C)
2.5 k Ω ± 6%
86 °F (30 °C)
1.7 k Ω ± 6%
104 °F (40 °C)
1.2 k Ω ± 6%
122 °F (50 °C)
834 Ω ± 6%
140 °F (60 °C)
596 Ω ± 6%
158 °F (70 °C)
435 Ω ± 6%
176 °F (80 °C)
323 Ω ± 6%
194 °F (90 °C)
243 Ω ± 6%
212 °F (100 °C)
186 Ω ± 6%
ELECTRICAL
