9.12
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.

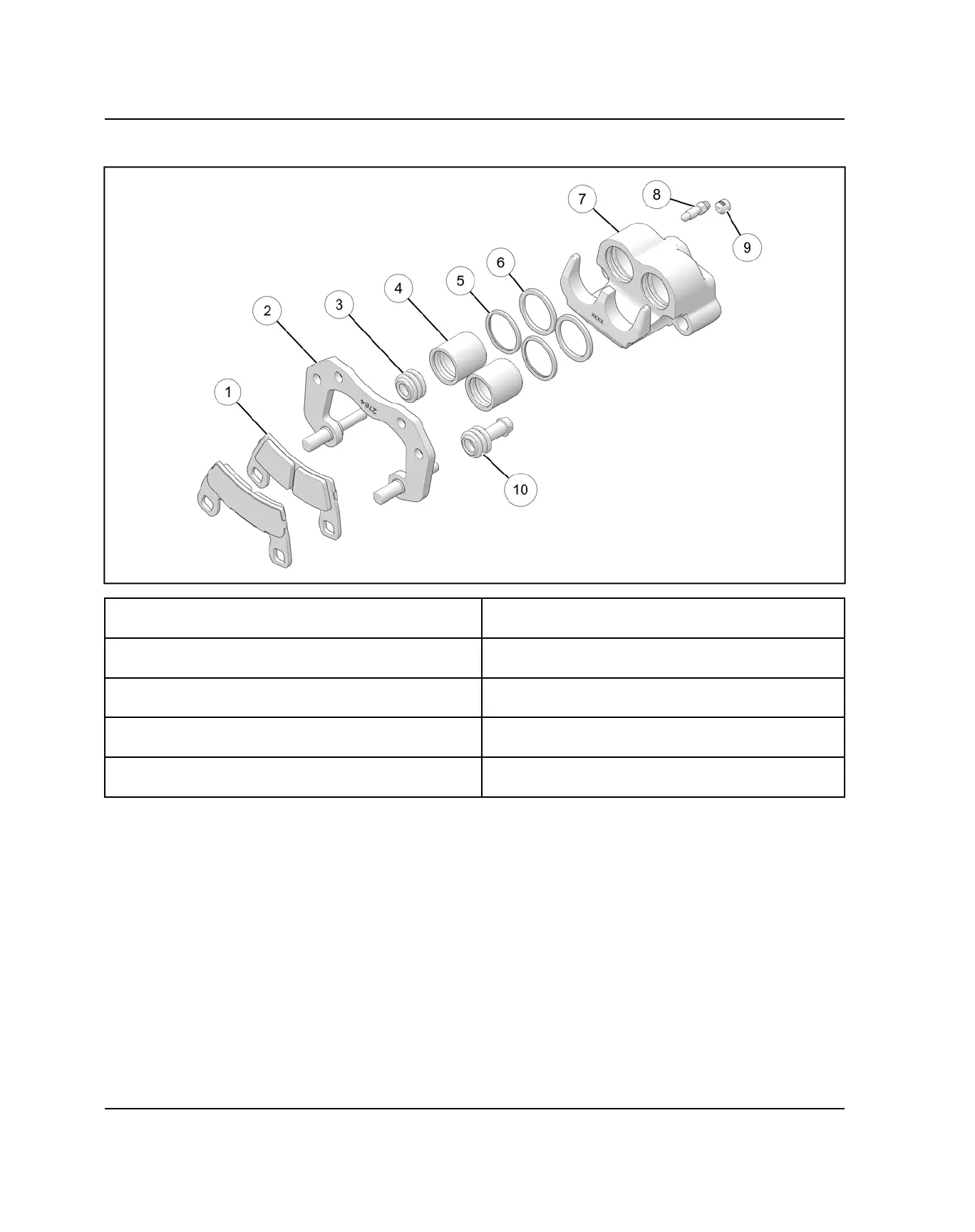

CALIPER EXPLODED VIEW
q
Brake Pads
y
Square Rings - .103 x .134
Replace with new parts. Apply DOT 4 Brake Fluid.
w
Caliper Mount
Apply silicone grease to pins.
u
Caliper Body
e
Bushing Pin Boot
i
Bleeder
44 in-lbs (5 Nm)
r
Pistons
Apply DOT 4 Brake Fluid.
o
Adjuster Screw
t
Square Rings -. 094
Replace with new parts. Apply DOT 4 Brake Fluid.
a
Pin/Boot
BRAKE SYSTEM
