9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
11.7
CHASSIS HARNESS

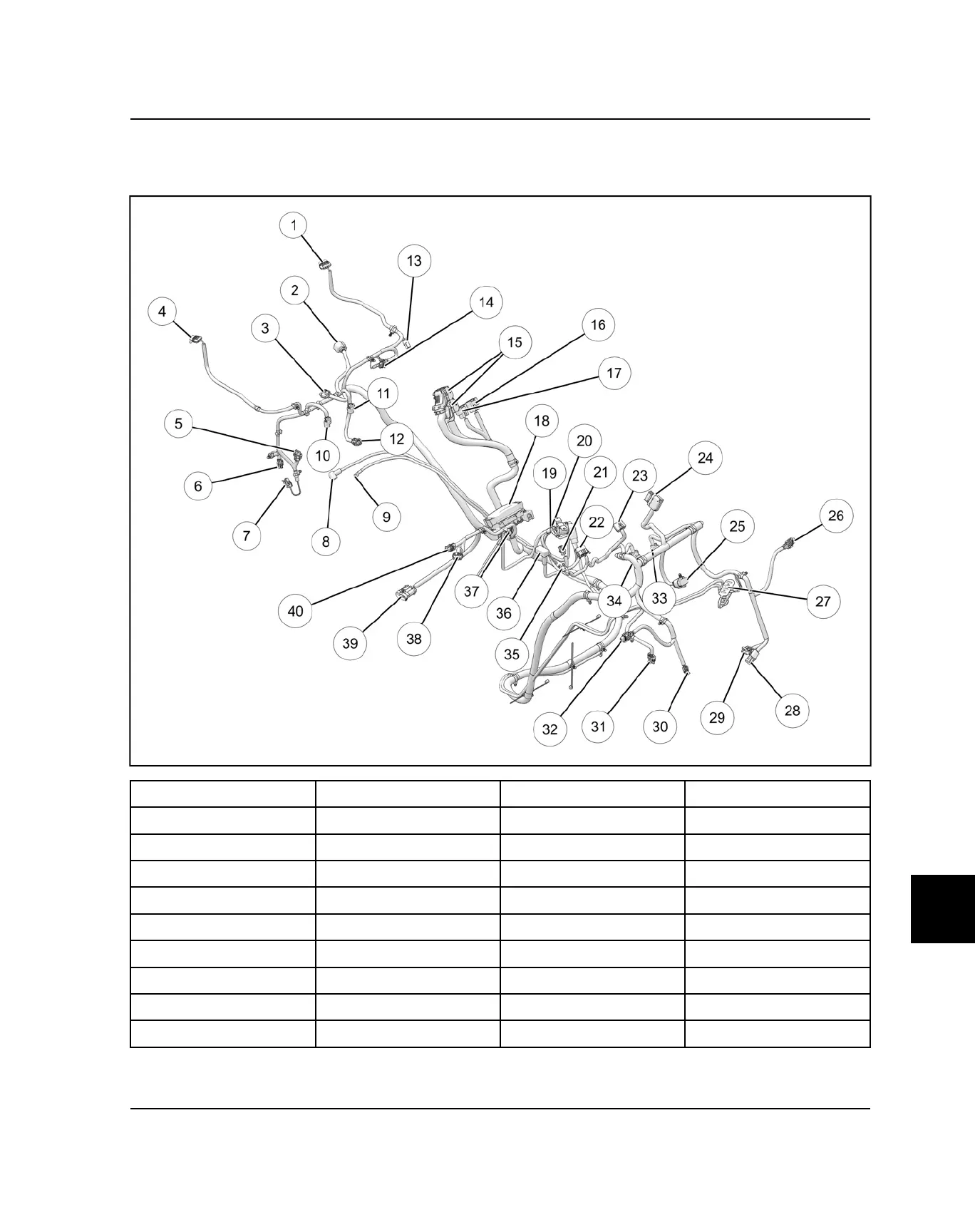

MAIN HARNESS COMPONENT LOCATIONS
q
LH Taillight
s
PTO Injector
2!
Start Solenoid
3!
PPS
w
Electronic Throttle Body
d
Coolant Temp Sensor
2@
AWD Switch
3@
RH Headlight
e
TMAP
f
Accessory Rear
2#
Key Switch
3#
EPS Signal
r
RH Taillight
g
Ignition Coil
2$
Instrument Cluster
3$
EPS Power
t
CPS
h
ECU
2%
Diagnostic
3%
12V Receptacle
y
Vehicle Speed Sensor
j
Voltage Regulator AC
2^
LH Headlight
3^
Battery (+)
u
Transmission Switch
k
Voltage Regulator DC
2&
Terminal Block
3&
Battery (-)
i
Starter (+)
l
Relay / Fuse Block
2*
Fan
3*
Fuel Pump / Level
o
Starter (-)
1(
Ground A
2(
AWD
3(
Stator AC
a
MAG Injector
2)
Ground B
3)
Brake Switch
4)
Seat Belt Switch
ELECTRICAL
