3.12
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
INTAKE / EXHAUST SYSTEM

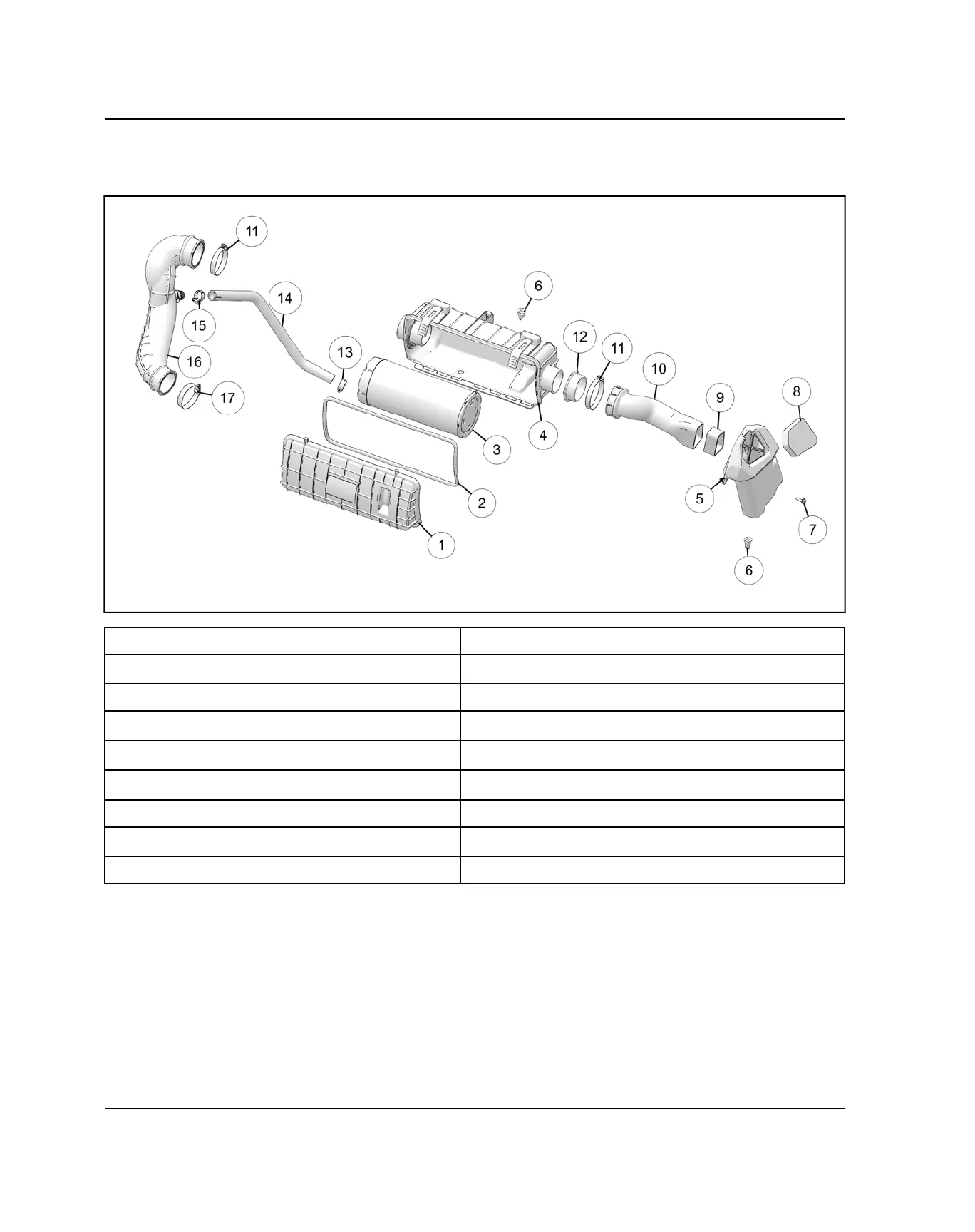

AIR BOX / AIR FILTER ASSEMBLY VIEW
q
Air Box Cover
a
Intake Duct — Airbox
w
Cover Seal
s
Gear Clamp 3.25
e
Air Filter
d
Intake Boot
r
Airbox
f
Spring Clamp
t
Intake Box
g
Hose Engine Vent
y
Drain Plugs
h
Small Gear Clamp
u
Bolt
j
Intake Duct
i
Pre-Filter
k
Gear Clamp 2.75
o
Seal Foam
