WALKER EVANS FRONT / REAR SHOCK COMPRESSION
The compression damping clicker knob
q
is located at the top of the shock reservoir. When the knob is turned
clockwise until it stops, the damping is in the fully closed position. When turned counter-clockwise until it stops, the
damping is in the fully open position.
1. Turn the clicker clockwise to increase compression damping.
2. Turn the clicker counter-clockwise to decrease compression damping.

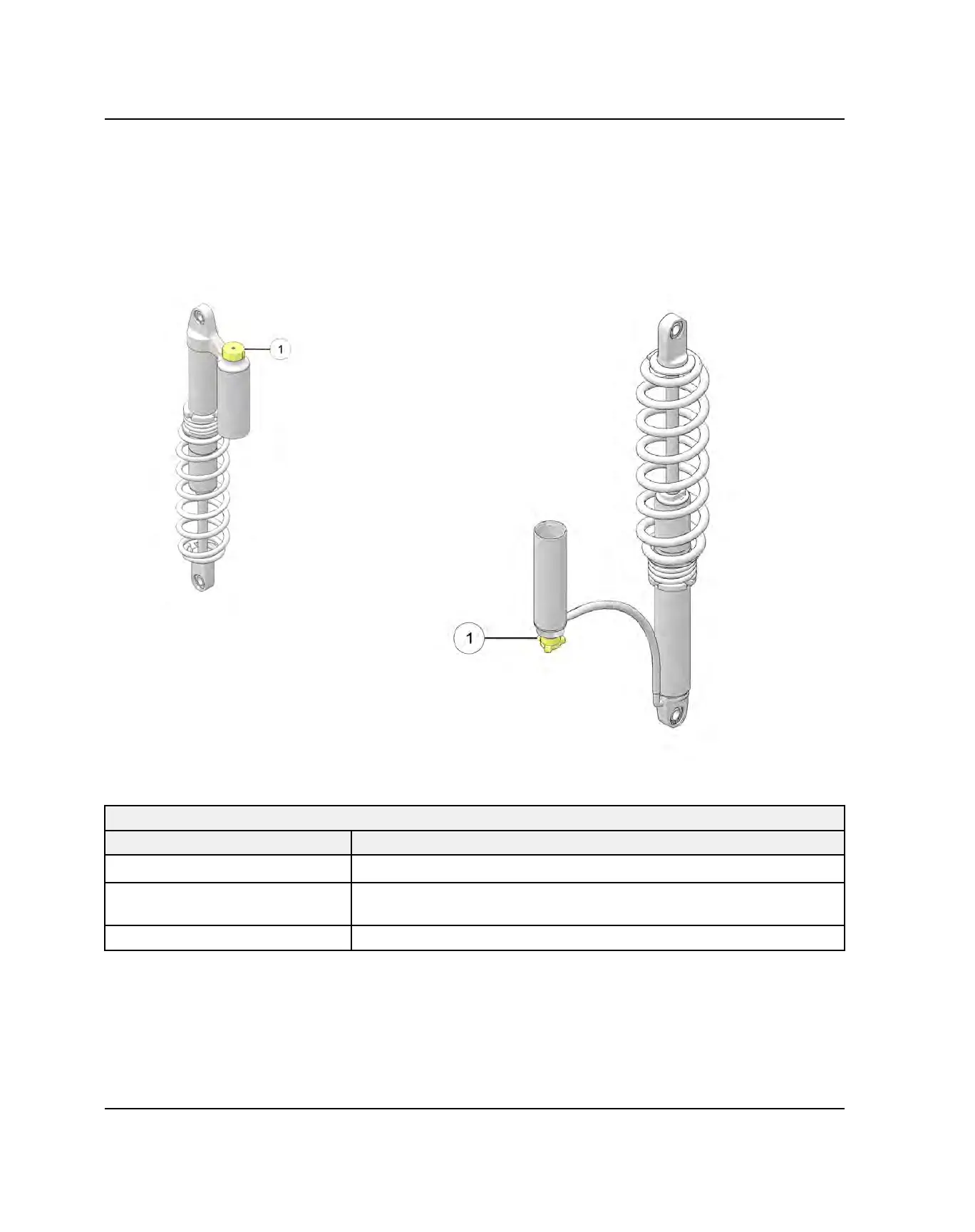

Front Shock
Rear Shock
WALKER EVANS SHOCKS
SETTING COMPRESSION DAMPING
Softest
Clicker knob in fully open position
Factory
Front: 5-7 clicks from fully open position
Rear: 5-7 clicks from fully open position
Firmest 1 click from closed
MAINTENANCE
