9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
4.45

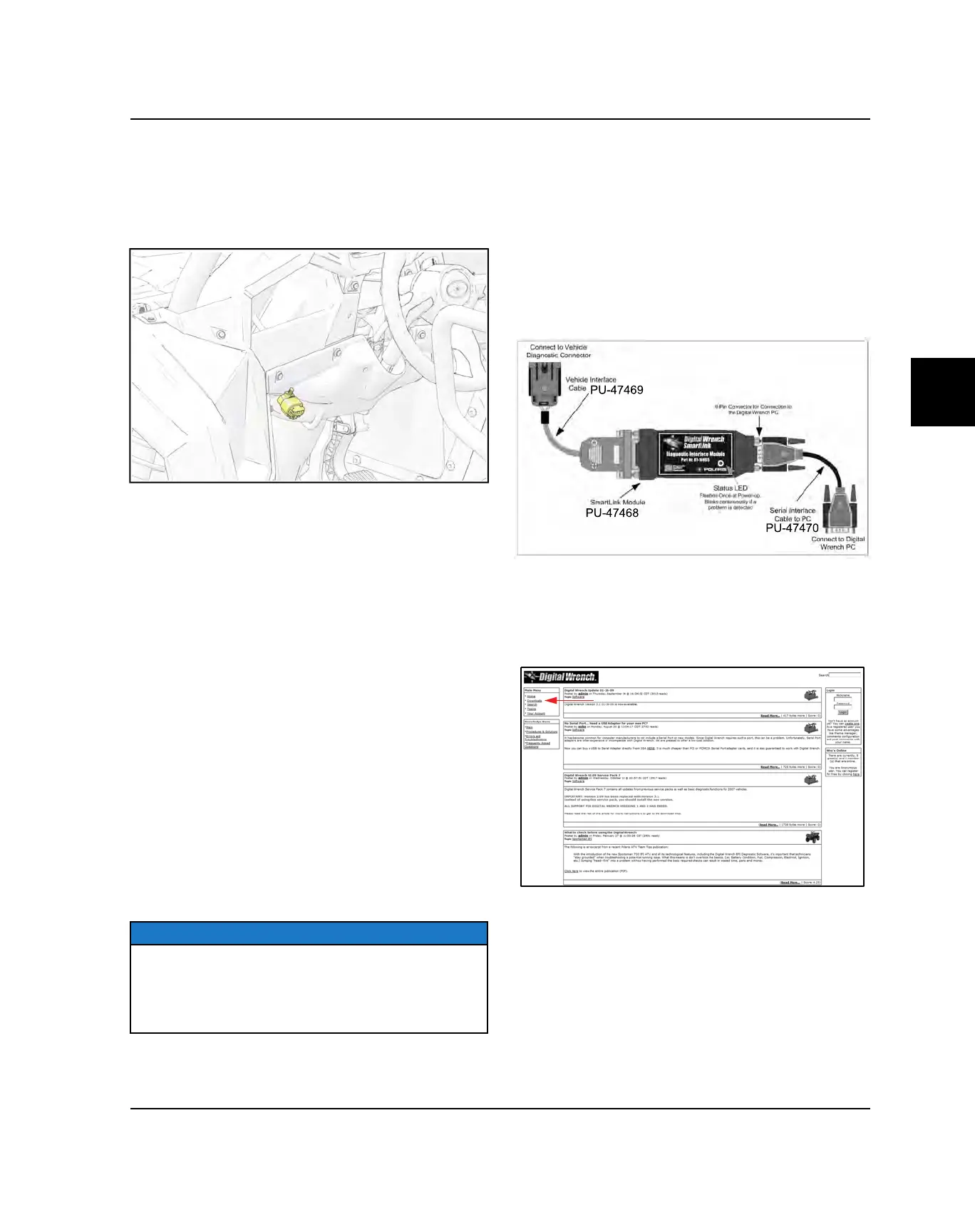

DIGITAL WRENCH® OPERATION
DIGITAL WRENCH® - DIAGNOSTIC
CONNECTOR
The diagnostic connector is located under the upper floor
board, under the steering column as shown.
Follow these steps to connect the diagnostic interface
cable to the vehicle to allow Digital Wrench® use:
1. Assemble the SmartLink Module and attach the PC
Interface Cable to your laptop (see page 3.3).
2. Remove the protective cap from the Digital Wrench®
connector.
3. Connect the Vehicle Interface Cable to the Digital
Wrench® diagnostic connector.
4. Turn the ignition key to the ‘ON’ position, select the
appropriate vehicle and wait for the status to display
‘Connected’ in the lower left corner of the screen.
5. Once connected, proceed with using Digital
Wrench®.
DIGITAL WRENCH® DIAGNOSTIC
SOFTWARE
PU-47063-B
This dealer-only software installs on laptop computers
equipped with a CD drive and is designed to replace
multiple shop tools often used to test EFI components. It
also includes step-by-step diagnostic procedures to aid
technician repair and troubleshooting.
NOTICE
If the PC you are using is not equipped with a 9 pin
serial port, a USB to serial port adaptor will be
necessary. It is recommended to use the DSA USB to
serial port adaptor which can be purchased through
DSA at: www.diagsys.com
DIGITAL WRENCH® SMARTLINK MODULE
KIT
PU-47471
This module kit contains the necessary cables and
hardware to communicate between the vehicle ECU and
the Digital Wrench® diagnostic software. Polaris dealers
can also order the following separately: SmartLink
Module PU-47468, Vehicle Interface Cable PU-47469
and PC Interface Cable PU-47470.
DIGITAL WRENCH® - DOWNLOAD
WEBSITE
Located at: www.polaris.diagsys.com
Download Digital Wrench® Updates:
FUEL SYSTEM
