9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
10.3
GENERAL INFORMATION

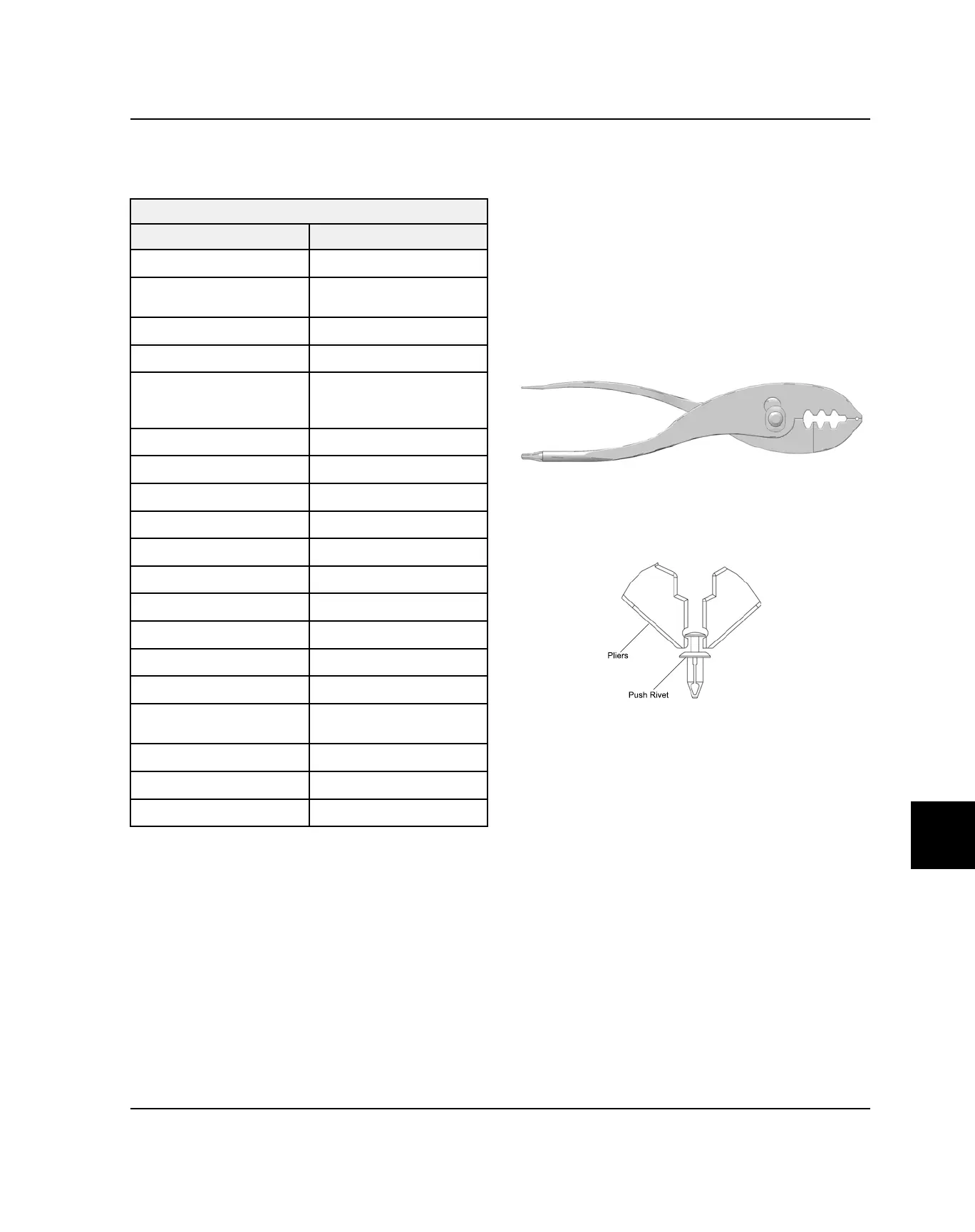

TORQUE SPECIFICATIONS - BODY
BODY / FRAME
ITEM
TORQUE
Body Fasteners 8 ft-lbs (11 Nm)
Upper Instrument Panel
Fasteners
24 in-lbs (2.7 Nm)
Rear Bumper Fasteners 14 ft-lbs (19 Nm)
ROPS Fasteners
30 ft-lbs (41 Nm)
Lower Front ROPS
Fasteners
Built 10/17/2016 or After
42 lb-ft (57 Nm)
Side Bolster Fastener
14 ft-lbs (19 Nm)
Airbox Support 14 ft-lbs (19 Nm)
Rear Bracket
14 ft-lbs (19 Nm)
Rear Chassis Brace
14 ft-lbs (19 Nm)
Door Hinge Screws 8 ft-lbs (11 Nm)
Door Panel Screws
22 In-lbs (2 Nm)
Door Latch Screws
8 ft-lbs (11 Nm)
Latch Bracket Screws
12 ft-lbs (16 Nm)
Skid Plate Fasteners
8 ft-lbs (11 Nm)
Winch Mount Fasteners
8 ft-lbs (11 Nm)
Seat Belt Retractor /
Buckle Fasteners
42 ft-lbs (57 Nm)
Seat to Frame Fasteners
27 in–lbs (3 Nm)
Seat Slider Fasteners
11 ft-lbs (15 Nm)
Seat Base Fasteners
30 ft-lbs (41 Nm)
PLASTIC PUSH RIVET REMOVAL
Using the “Multi-Function Pliers” eases removal and
prevents from damaging the push rivets and body
components.
Included in the tool kit, the multi-function pliers are
designed to remove the plastic push rivets used to fasten
body components.
Bosch Automotive Service Solutions 1-800-345-2233
or https://polaris.service-solutions.com
