11.44
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
LIGHTING SYSTEM

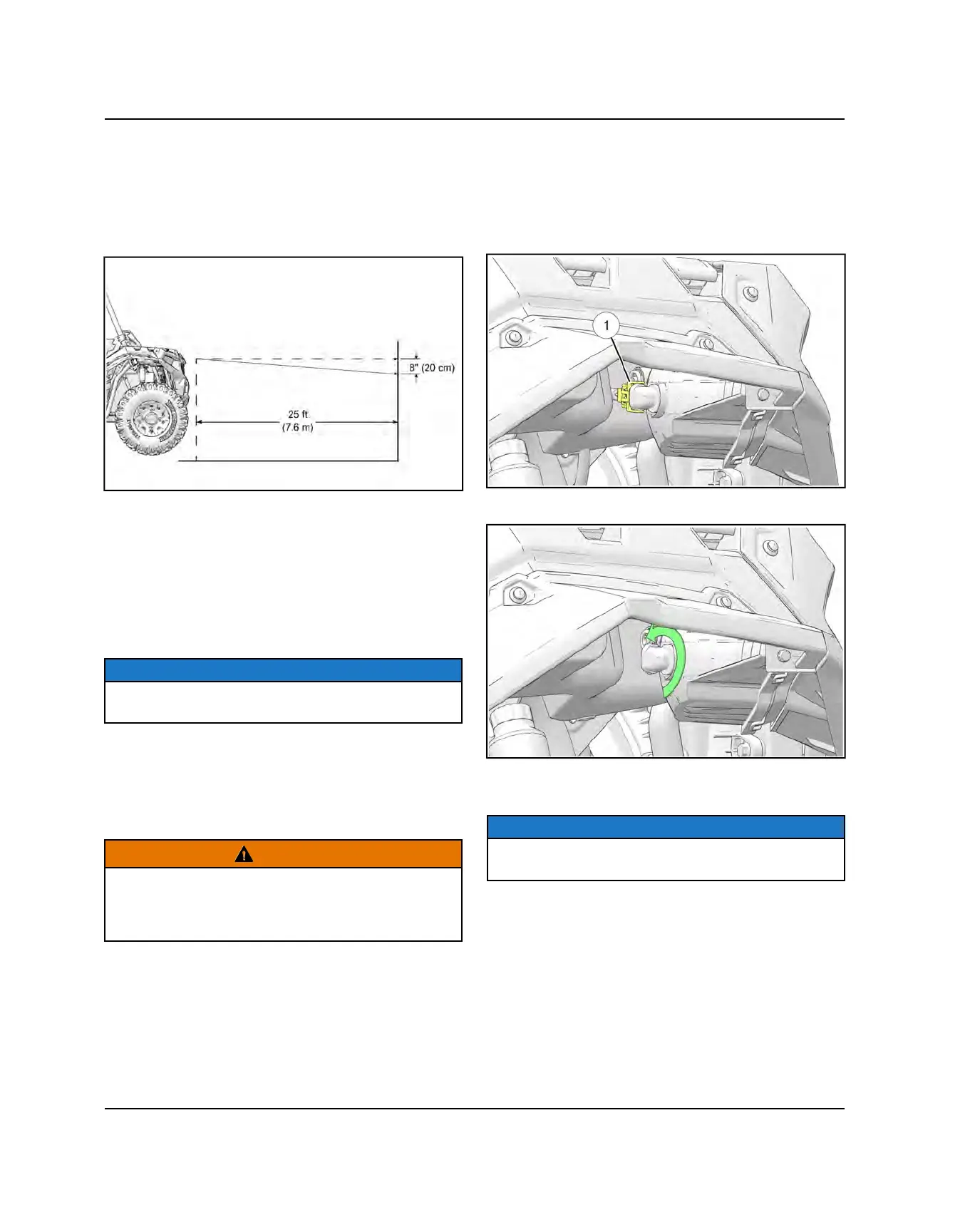

HEADLIGHT ADJUSTMENT
The headlight beams are adjustable.
1. Place the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall.
2. Measure the distance from the floor to the center of
the headlight and make a mark on the wall at the
same height.
3. With the machine in Park, start the engine and turn
the headlight switch to the LOW position.
4. The most intense part of the LOW beam headlight
beam should be aimed 8 in. (20 cm) below the mark
placed on the wall in Step 2.
NOTE
Rider weight must be included in the seat while
performing this procedure.
5. Adjust the beam to the desired position by loosening
the adjustment screw and moving the lamp to the
appropriate height.
6. Adjust the beam to desired position. Repeat the
procedure to adjust the other headlight.
WARNING
Due to the nature of light utility vehicles and where they
are operated, headlight lenses become dirty. Frequent
washing is necessary to maintain lighting quality. Riding
with poor lighting can result in severe injury or death.
HEADLIGHT BULB REPLACEMENT
1. Disconnect the wire harness
q
from the headlamp
bulb. Be sure to pull on the connector, not on the
wiring.
2. Turn the bulb counterclockwise to remove it.
3. Insert new bulb. Reinstall the wire harness onto the
headlamp assembly.
NOTE
Make sure the tabs on the bulb locate properly in the
housing.
