7
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
7.41
WHEEL HUBS

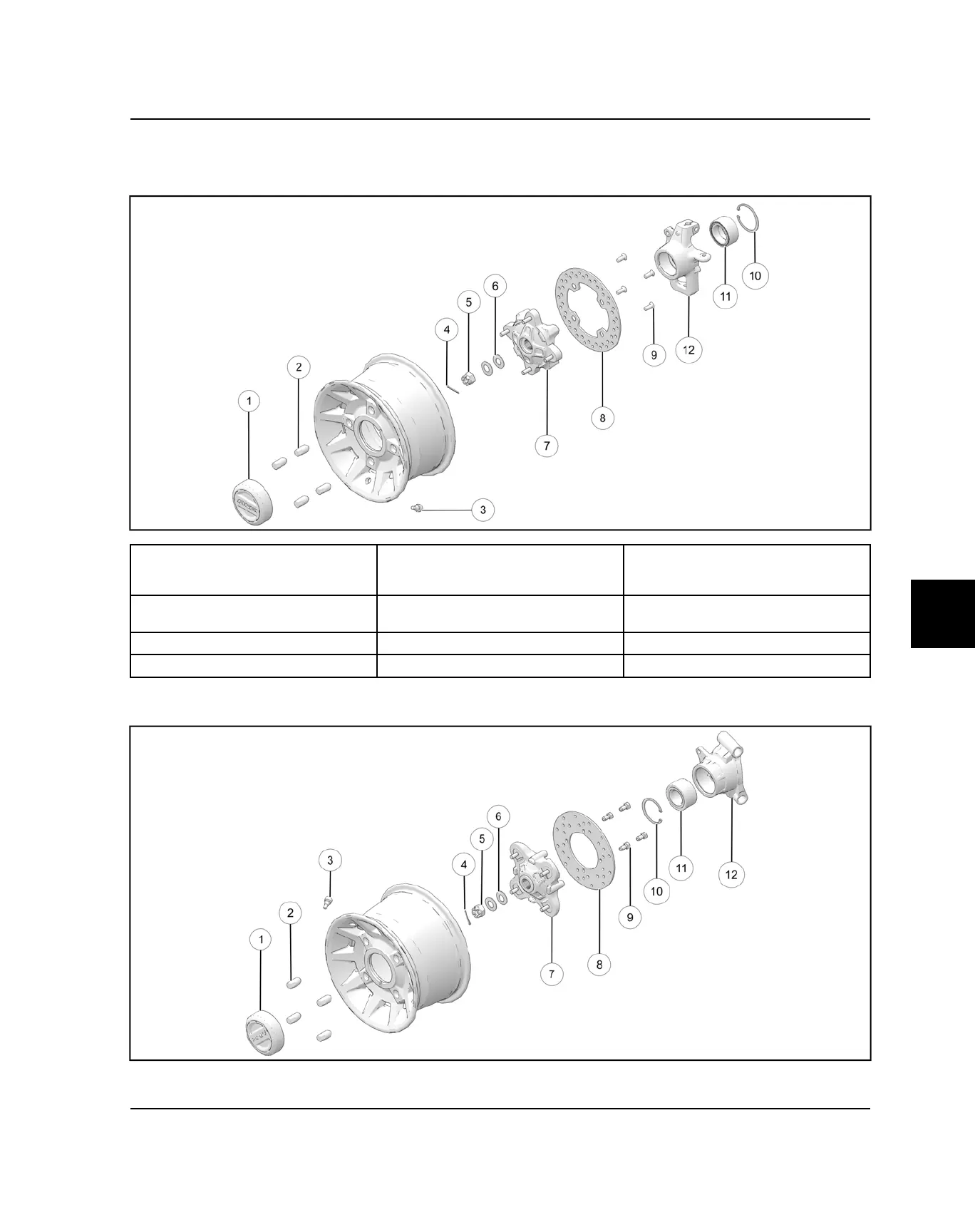

FRONT HUB ASSEMBLY VIEW
q
Hub Cover
t
Hub Castle Nut
Front: 110 ft-lbs (149Nm)
Rear: 110 ft-lbs (149Nm)
o
Brake Disc Fasteners
Front: 18 ft-lbs (24 Nm)
Rear: 28 ft-lbs (38 Nm)
w
Wheel Lug Nut
30 ft-lbs + 90° (41 Nm)
y
Washer
a
Snap Ring
e
Valve Stem
u
Wheel Hub
s
Wheel Bearing
r
Cotter Pin
i
Brake Disc
d
Bearing Carrier
REAR HUB ASSEMBLY VIEW
FINAL DRIVE
