4.4 The Agent menu
SCALANCE X-300 / X-400
126 Configuration Manual, 10/2014, C79000-G8976-C187-22
Command
Description
Comment
date <yyyy> <start
date> <end date>
Creates an entry of the type "Date".
For the <start date> and <end date> parame-
ters, enter the month, day and hour in the
following form:
• mmddhh
Administrator only
Example:
date 2010 040102 100103
delete <index> Deletes an entry. The index of the entry to be
deleted must be obtained with the "info"
command.
Administrator only
4.4.11
Agent PNIO Configuration
Settings for PROFINET IO
Here, the PROFINET IO device name is set as it was assigned for the IE switch during
PROFINET IO hardware configuration with NCM.

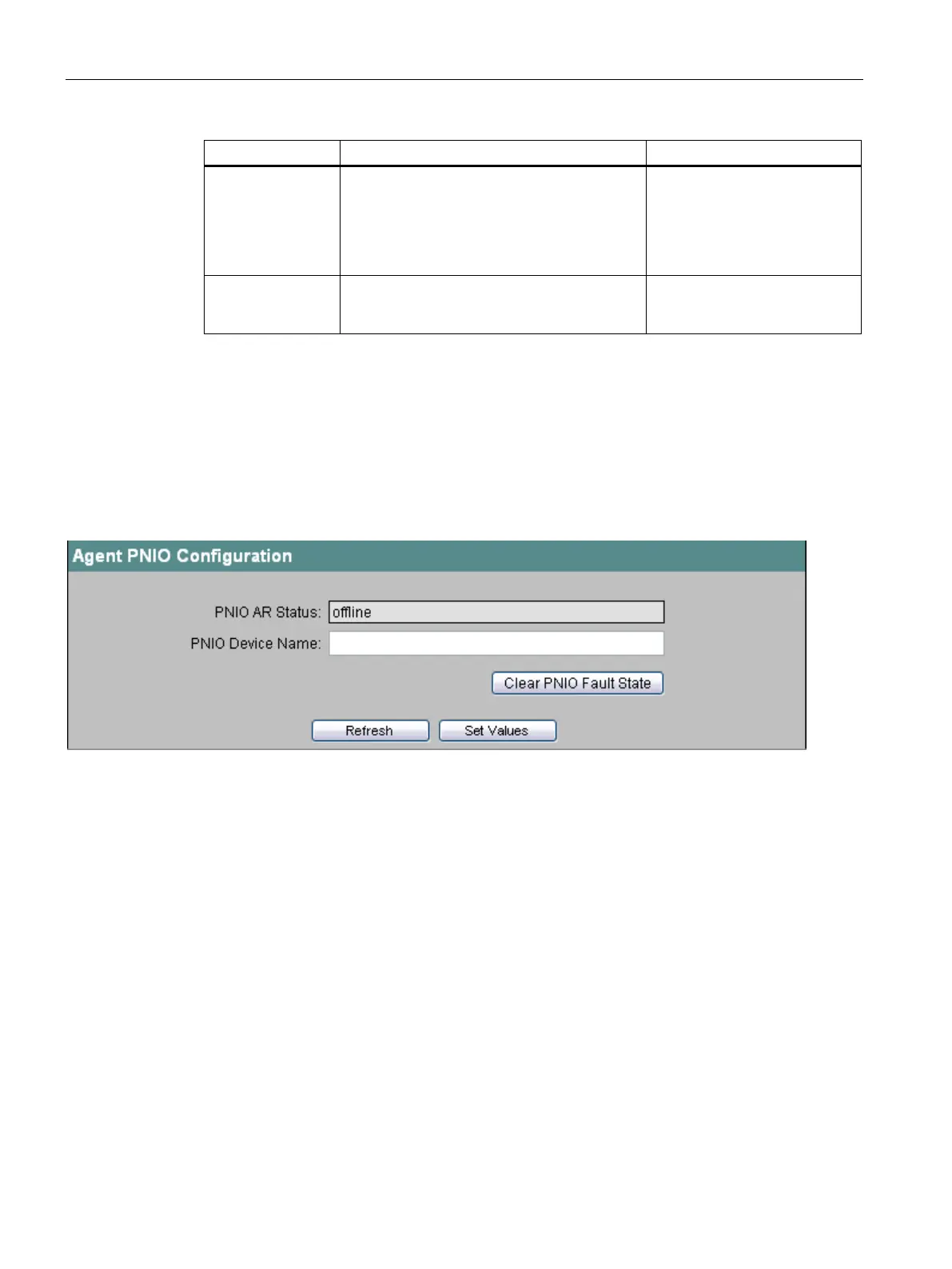

Figure 4-45 Agent PROFINET IO Configuration
PNIO AR Status
This box shows the PROFINET IO application relation status; in other words, whether or not
the IE switch is connected "online" or "offline" with a PROFINET Controller.
In this context, online means that a connection to a PROFINET IO controller exists, that the
controller has downloaded its configuration data to the IE switch and that the device can
send status data to the PROFINET IO controller. In this status known as "in data exchange",
the parameters set with the PROFINET IO controller cannot be configured on the IE switch.
PNIO Device Name
Here, you enter the PROFINET IO device name (Name of Station) according to the
configuration in HW Config.
Clear PNIO Fault State
If the IE switch was integrated in a PROFINET IO environment (with controller) and is then
removed from PROFINET IO mode, the fault LED signals that the controller is missing. This
fault display can be cleared with this button.
