FM Diagnostics
Requirement
On this page, you run independent error diagnostics for each individual port. This test is
performed without needing to remove the cable, connect a cable tester or install a loopback
module at the other end.
You can only use FMP diagnostics with transceivers capable of diagnostics. Devices and
modules with transceivers capable of diagnostics have the supplement "FM" in the name.

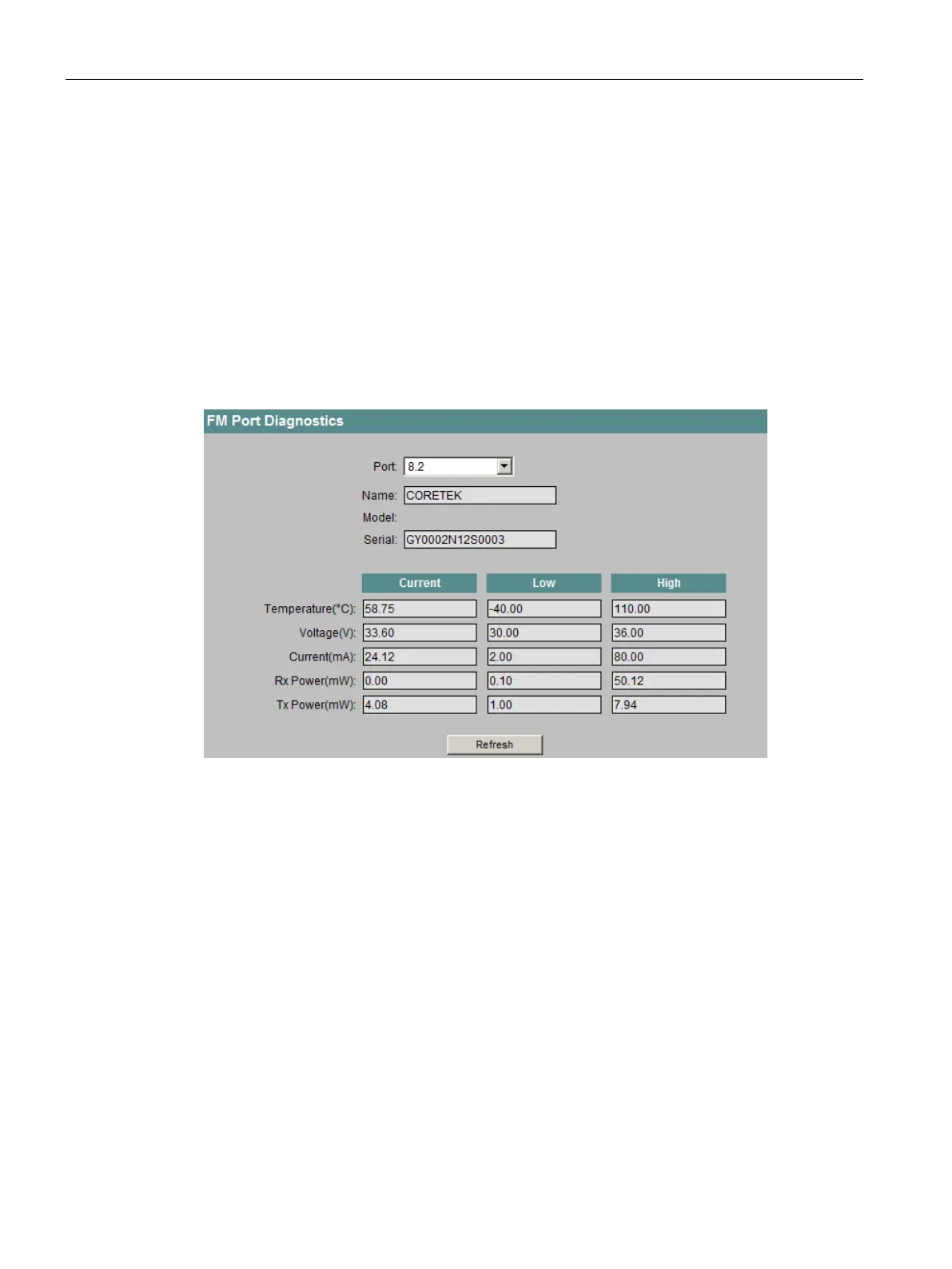

The port to be tested is specified here.
The following is displayed depending on the selection:
● Name (read only)
The name of the port
● Model (read only)
The FM transceiver used
● Serial (read-only)
The serial number of the FM transceiver
The table is structured so that the latest (Current), the lowest (Low) and the highest (High)
value is always shown for the following parameters.
(read only)
The temperature of the port.
(read only)
The voltage applied to the port.
