Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
Configuration Manual, 10/2014, C79000-G8976-C187-22
269
Packet Size Statistic
Received frames sorted by length
The "Packet Size Statistic" page displays how many frames of which size were received at
each port.
If you click the "Reset Counters" button, you reset the counters for all ports.

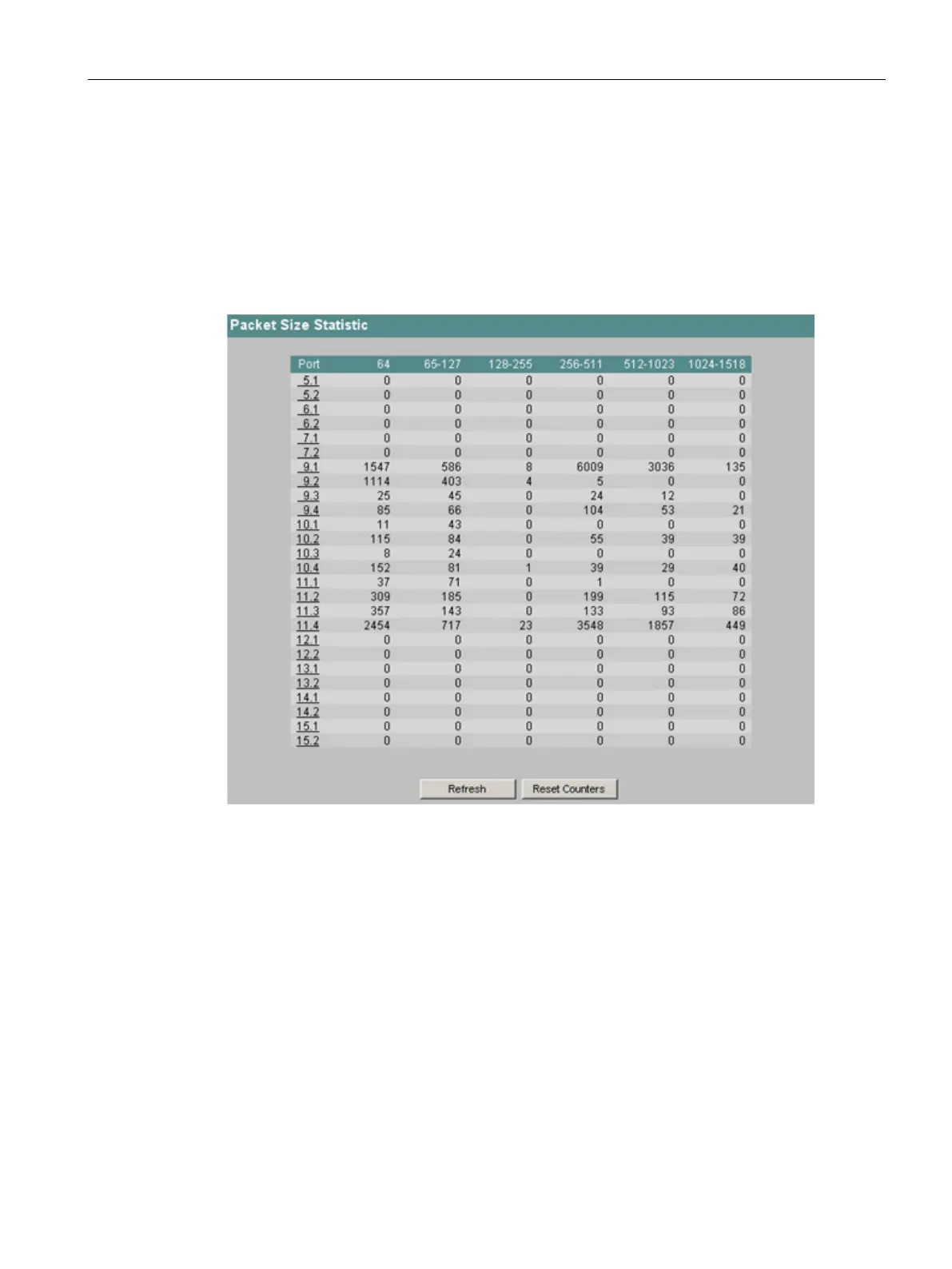

Figure 4-119 Packet Size Statistic
If you click on an entry in the Port column, the "Packet Size Statistics graphic" is displayed
for the selected port. You then see a configurable graphical representation of the counter
value.
