Configuration using Web Based Management and Command Line Interface
4.7 The Router menu (SCALANCE X414-3E)
SCALANCE X-300 / X-400
318 Configuration Manual, 10/2014, C79000-G8976-C187-22
VRRP Statistics
Introduction
In this menu, you can view the statistics of the VRRP protocol and all configured virtual
routers.
You can reset these statistics to 0 with the "Reset Counters" button.

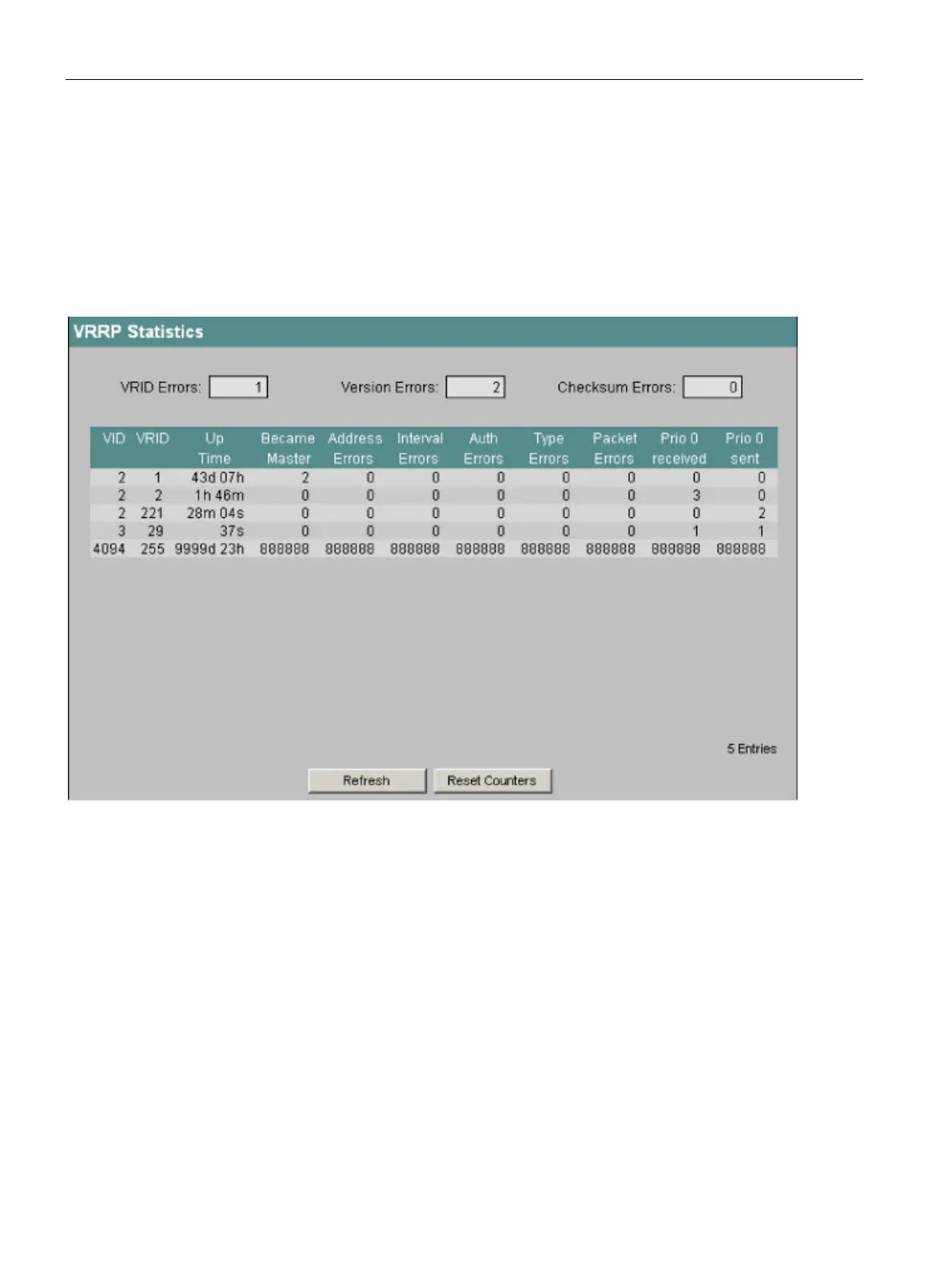

Figure 4-151 VRRP Statistics
Shows the number of received VRRP packets containing an unsupported VRID.
Shows the number of received VRRP packets containing an invalid version number.
Shows the number of received VRRP packets containing an invalid checksum.
VLAN ID of the subnet. The IP addresses set up for this and all subnet parameters can be
found in the "Router Subnets" menu.
The ID of the virtual router is displayed in this column. This assigned ID must be unique for
this VLAN. Valid values are 1 through 255.
