Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
216 Configuration Manual, 10/2014, C79000-G8976-C187-22
Syntax of the Command Line Interface
Table 4- 66 MSTP Instances Configuration - CLI\SWITCH\MSTP\MSTI>
MSTP Instance Configuration - CLI\SWITCH\MSTP\MSTI>
Shows information on the MSTP instances.
add <MST ID> <brgPrio>
<vlans (1-4094)>
Generates and modifies an MSTP instance. Administrator only.
Deletes the MSTP instance.
Multiple Spanning Tree Port Configuration
(Multiple) Spanning Tree Ports
The "MSTP Ports" screen appears if you click the "MST Ports" submenu.
In this screen, you set the parameters for the ports of the configured Multiple Spanning Tree
instances.

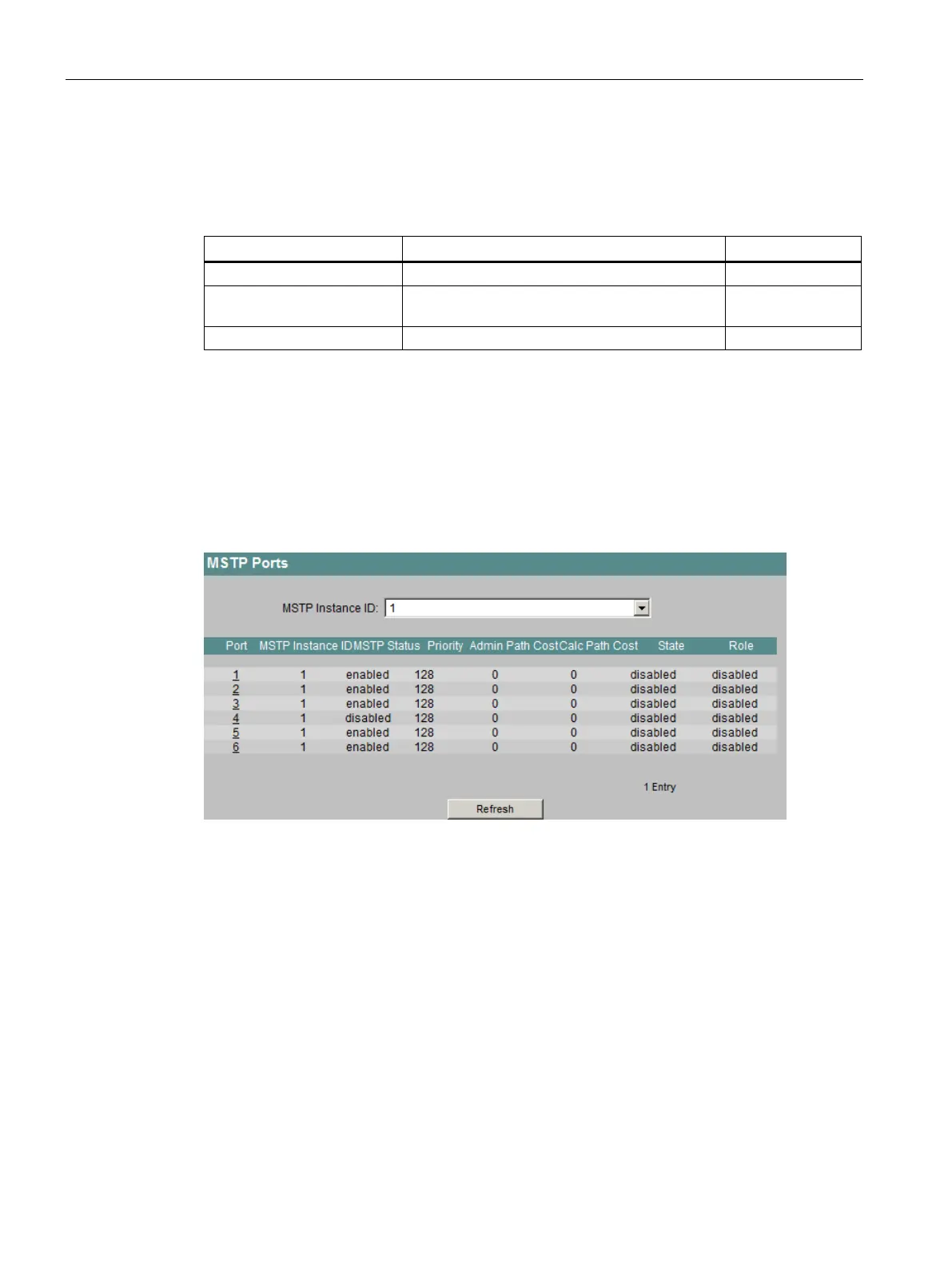

Figure 4-92 MSTP Ports
The page contains the following box:
●
In the "MSTP Instance ID" drop-down list, select the ID of the MSTP instance.
The table has the following columns:
●
The "Port" column shows the ports to which the information relates.
●
The "MSTP Instance ID" column shows the number of the MSTP instance.
●
The "MSTP Status" column shows whether multiple spanning tree is enabled or disabled
for the port.
