Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
254 Configuration Manual, 10/2014, C79000-G8976-C187-22

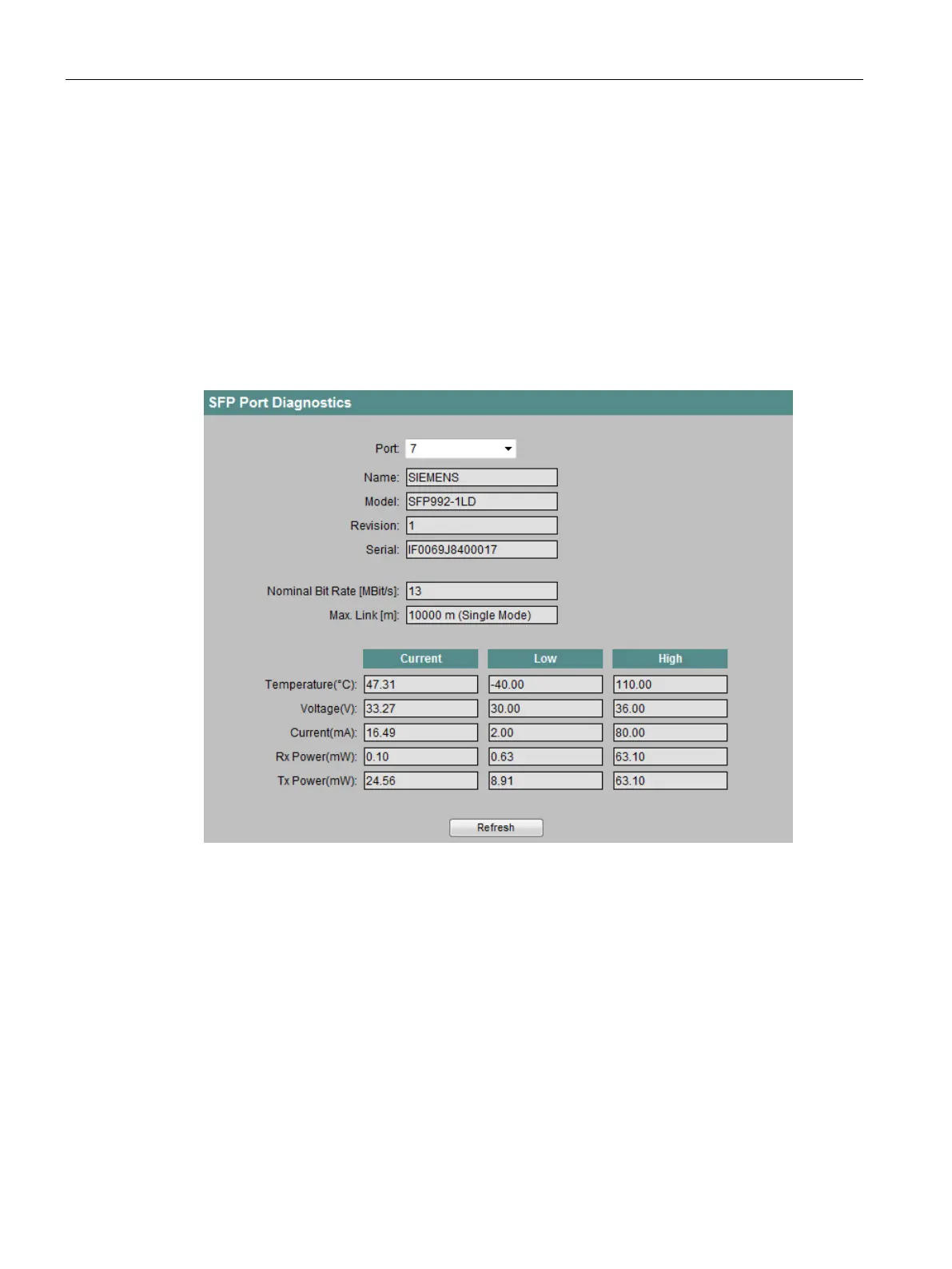

SFP diagnostics
Requirement
On this page, you run independent error diagnostics for each individual SFP port. This test is
performed without needing to remove the cable, connect a cable tester or install a loopback
module at the other end.
You can only use SFP diagnostics with transceivers capable of diagnostics.
The SFP port to be tested is specified here.
The following is displayed depending on the selection:
● Name (read only)
The name of the SFP port
● Name (read only)
The name of the SFP transceiver being used
● Revision (read-only)
The hardware version of the SFP transceiver
● Serial (read only)
The serial number of the SFP transceiver
