Siemens SCALANCE X-400 Configuration Manual

Configuration using Web Based Management and Command Line Interface
4.7 The Router menu (SCALANCE X414-3E)
SCALANCE X-300 / X-400
280 Configuration Manual, 10/2014, C79000-G8976-C187-22
4.7
The Router menu (SCALANCE X414-3E)
Note
The routing function is available only with the SCALANCE X41
4-3E.
Introduction to the procedure
To set up a SCALANCE X414-3E as a router, first create at least two subnets and assign
each subnet to a previously defined VLAN. You can then enter the static routes and/or
enable the router protocols RIP or OSPF.
For information on configuring VLANs, refer to the section "Current VLAN Configuration
menu item".
4.7.1
Router Configuration
Introduction
The "Router Configuration" screen appears if you click the Router folder icon. In this screen,
you can set up the SCALANCE X414-3E as an IPv4 router.
To distribute the routing information in the network, you can use the RIPv2 and OSPFv2
protocols that you can select here. You can see the detailed settings for the protocols in the
relevant sub-dialogs.

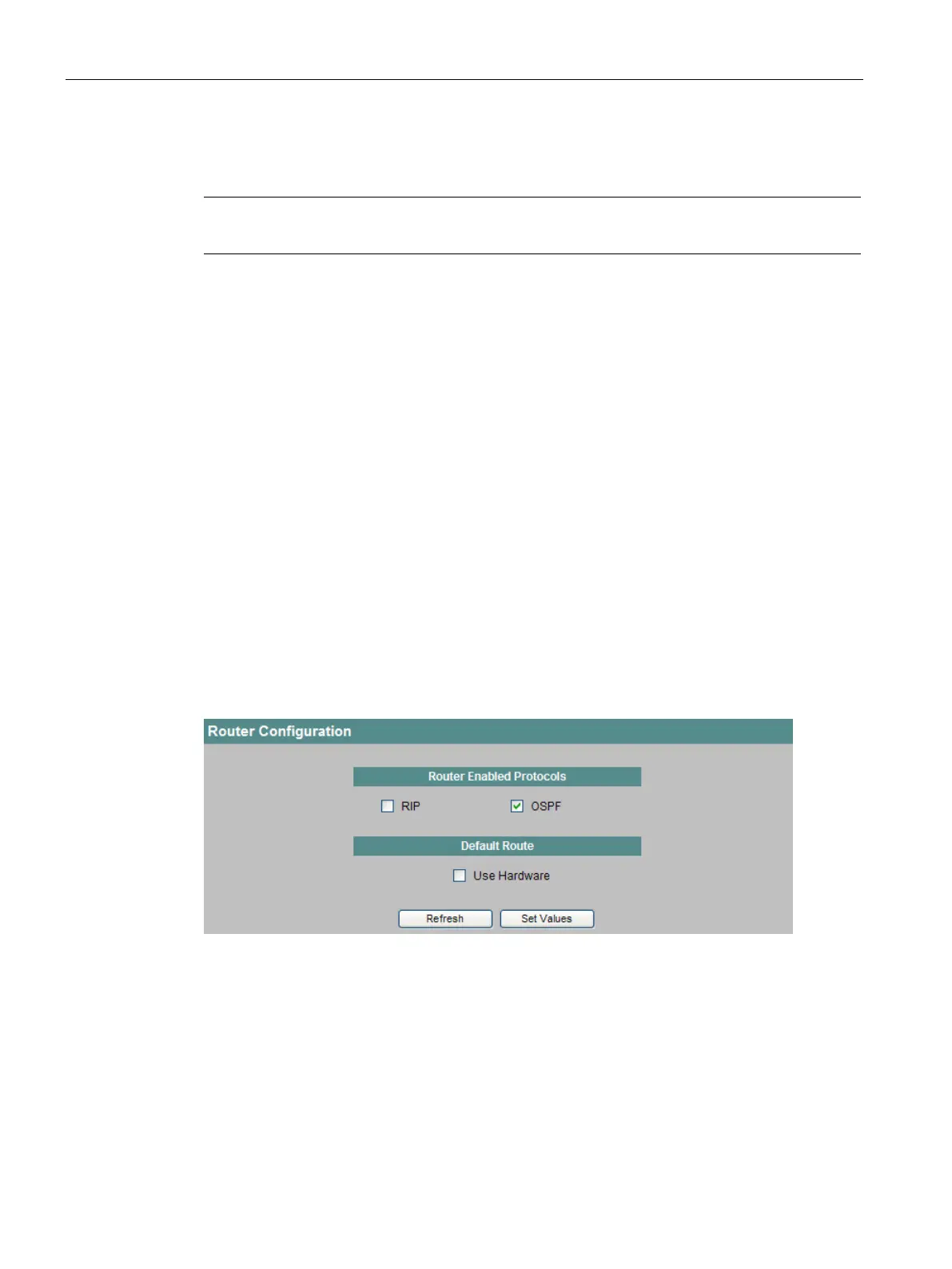

Figure 4-127 Router Configuration
