Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
272 Configuration Manual, 10/2014, C79000-G8976-C187-22
Packet Type Statistic
Received frames sorted by type
The "Packet Type Statistic" page displays how many frames of the type "unicast",
"multicast", and "broadcast" were received at each port.
If you click the "Reset Counters" button, you reset the counters for all ports.

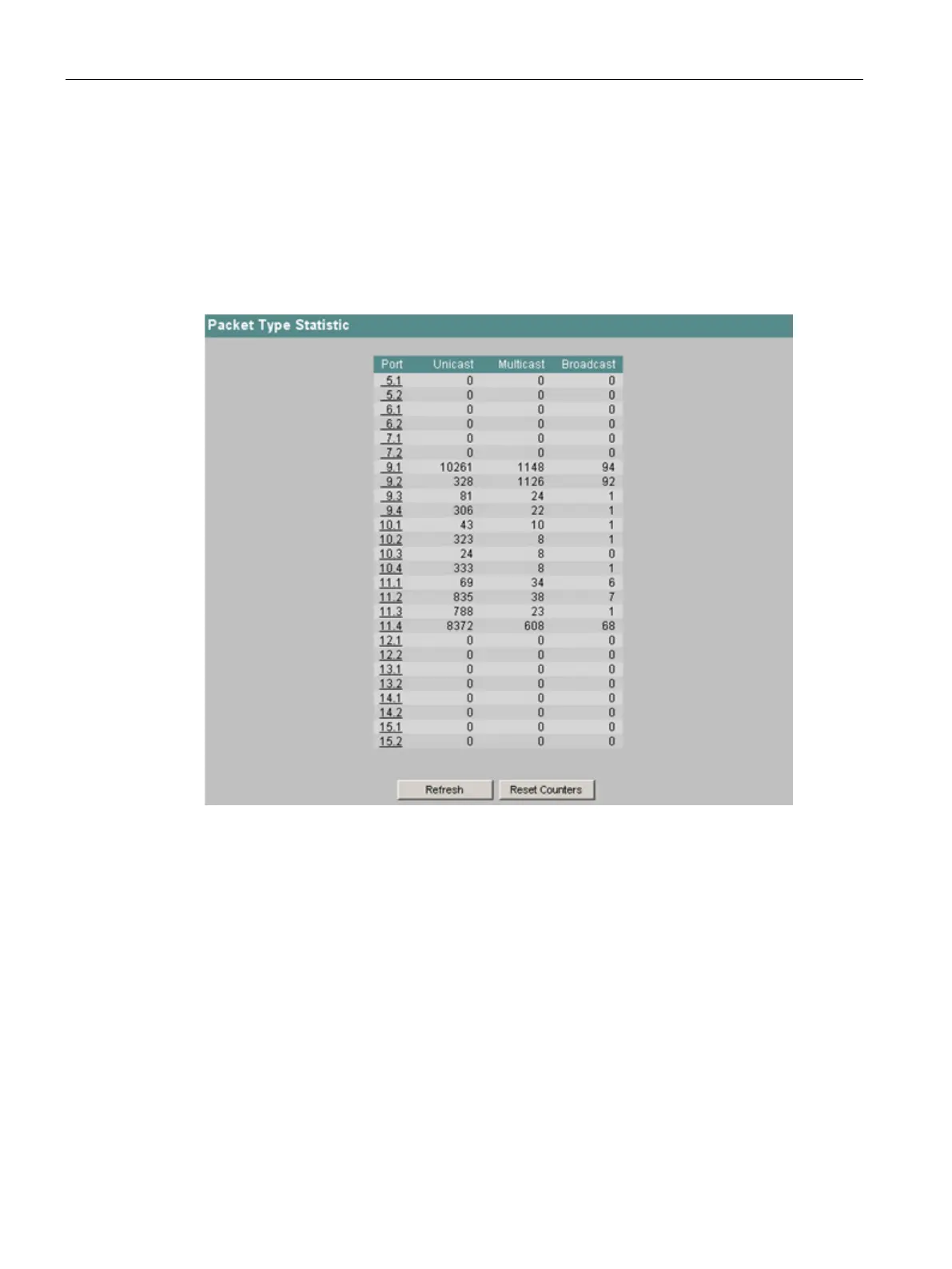

Figure 4-121 Packet Type Statistic
If you click on an entry in the Port column, the "Packet Type Statistics graphic" is displayed
for the selected port. You then see a configurable graphical representation of the counter
value.
Graphic representation of the statistics
This page displays the number of frames received at each port graphically. The display
depends on the frame type. There is a separate element in the graphic for each of the
following ranges:
● Unicast
● Multicast
● Broadcast
