Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
Configuration Manual, 10/2014, C79000-G8976-C187-22
159
Unicast Filter (ACL)
4.5.6.1
Current Unicast Filter (Access Control List)
Address filtering
This menu displays the current content of the filter table. This table lists the source
addresses of unicast address frames. Entries can be made either dynamically when a node
sends a frame to a port or statically by the user setting parameters.

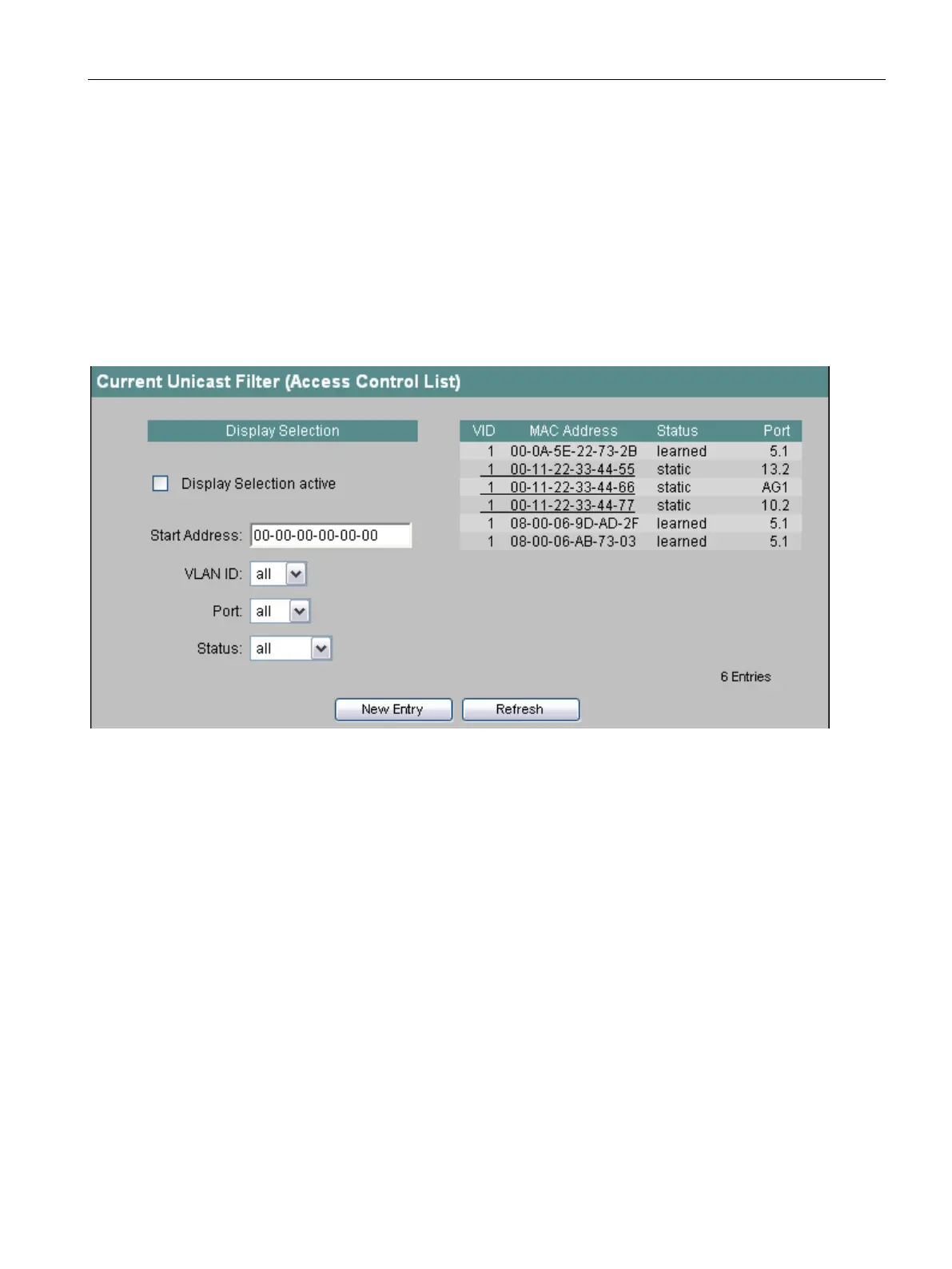

Figure 4-59 Current Unicast Filter
Selecting the displayed addresses
Display Selection active
The display is only restricted to selected elements when this check box is selected,
otherwise all addresses are displayed.
This parameter specifies the address in the filter table starting at which stored MAC
addresses are displayed. If nothing is entered here, the display begins at the VLAN ID. If you
enter a specific value here, only addresses with a corresponding VLAN ID are displayed.
Valid values for a VLAN ID are between 1 and 4096. If you do not want to make a selection
for the VLAN ID, select the "all" entry.
Here, you can restrict the display to addresses of nodes at particular ports. If you select the
"all" entry, addresses at all ports are displayed.
