Configuration using Web Based Management and Command Line Interface
4.7 The Router menu (SCALANCE X414-3E)
SCALANCE X-300 / X-400
282 Configuration Manual, 10/2014, C79000-G8976-C187-22
Router Subnets
Creating subnets
To operate the SCALANCE X414-3E as an IPv4 router, you need to create several (at least
two) subnets.
The agent configuration corresponds to the first subnet (see section "Agent menu"). The
data can only be modified there.
All other subnets can be created here ("New Entry" button). A subnet always relates to a
VLAN ID that was created previously in the VLAN dialog.

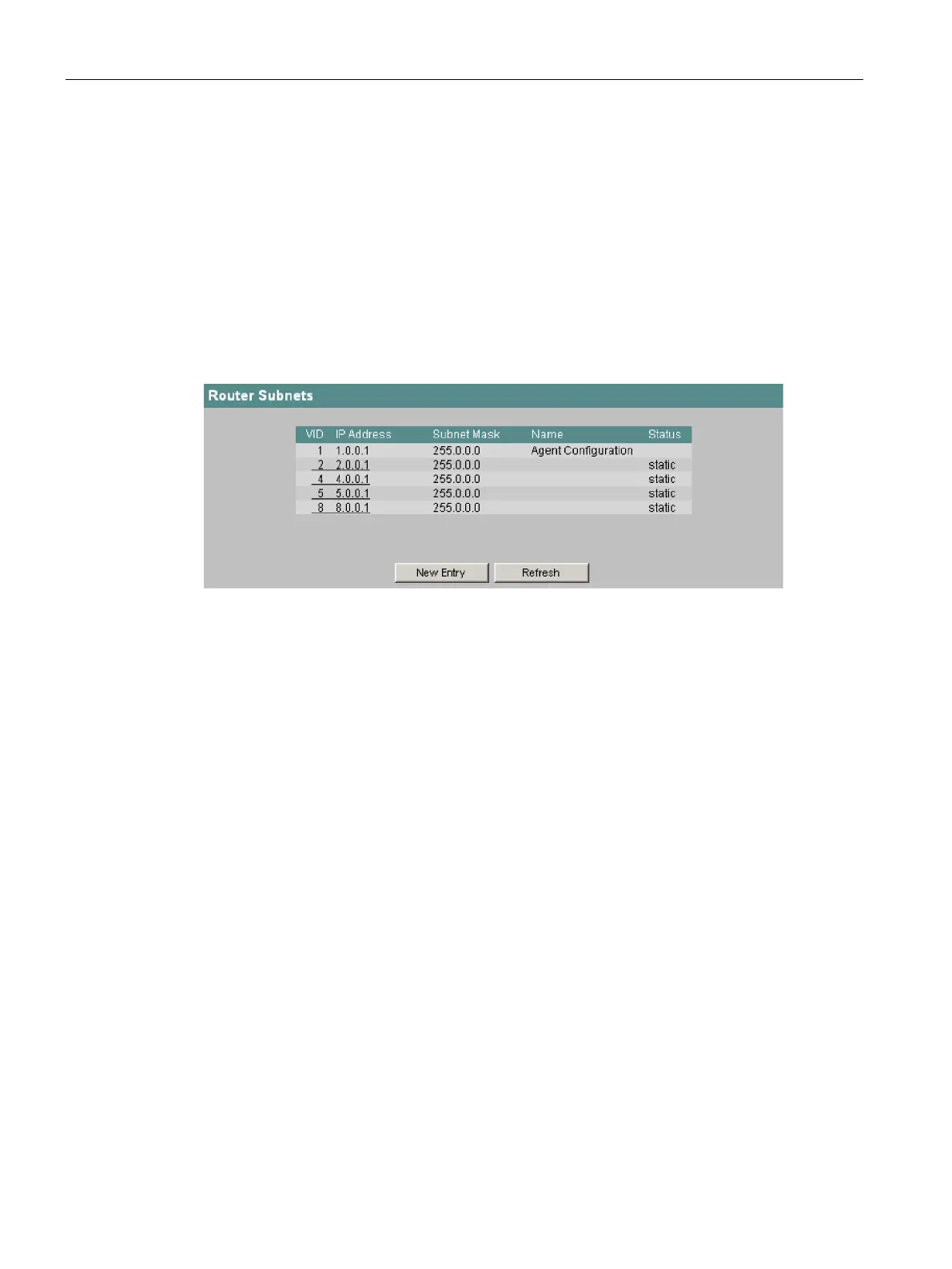

Figure 4-128 Router Subnets
VLAN ID of the IP subnet.
IP address of the subnet (must be unique).
Subnet mask of the IP subnet. The "ones" entered left justified in the bit representation of the
subnet mask specify the network ID of the IP address.
Freely selectable name for the subnet. The predefined name of the first subnet that must
match the agent configuration is called "Agent Configuration".
Status of the subnet. The following statuses are possible:
● Static
● invalid
A subnet with the "invalid" status indicates a configuration error that must be eliminated.
● RIP
● OSPF
