Configuration using Web Based Management and Command Line Interface
4.7 The Router menu (SCALANCE X414-3E)
SCALANCE X-300 / X-400
Configuration Manual, 10/2014, C79000-G8976-C187-22
301
edit <AreaID> <SNAddr>
Modifies an area range. Administrator
delete <AreaID> <SNAddr>
Deletes an area range. Administrator
OSPFv2 Interfaces
Overview
In this dialog, you can monitor all the IP interfaces configured for OSPF. Apart from the
configuration parameters, some statistical values can also be monitored in the double-page
display.
Click on the ">>" or "<<" buttons to page backwards and forwards.

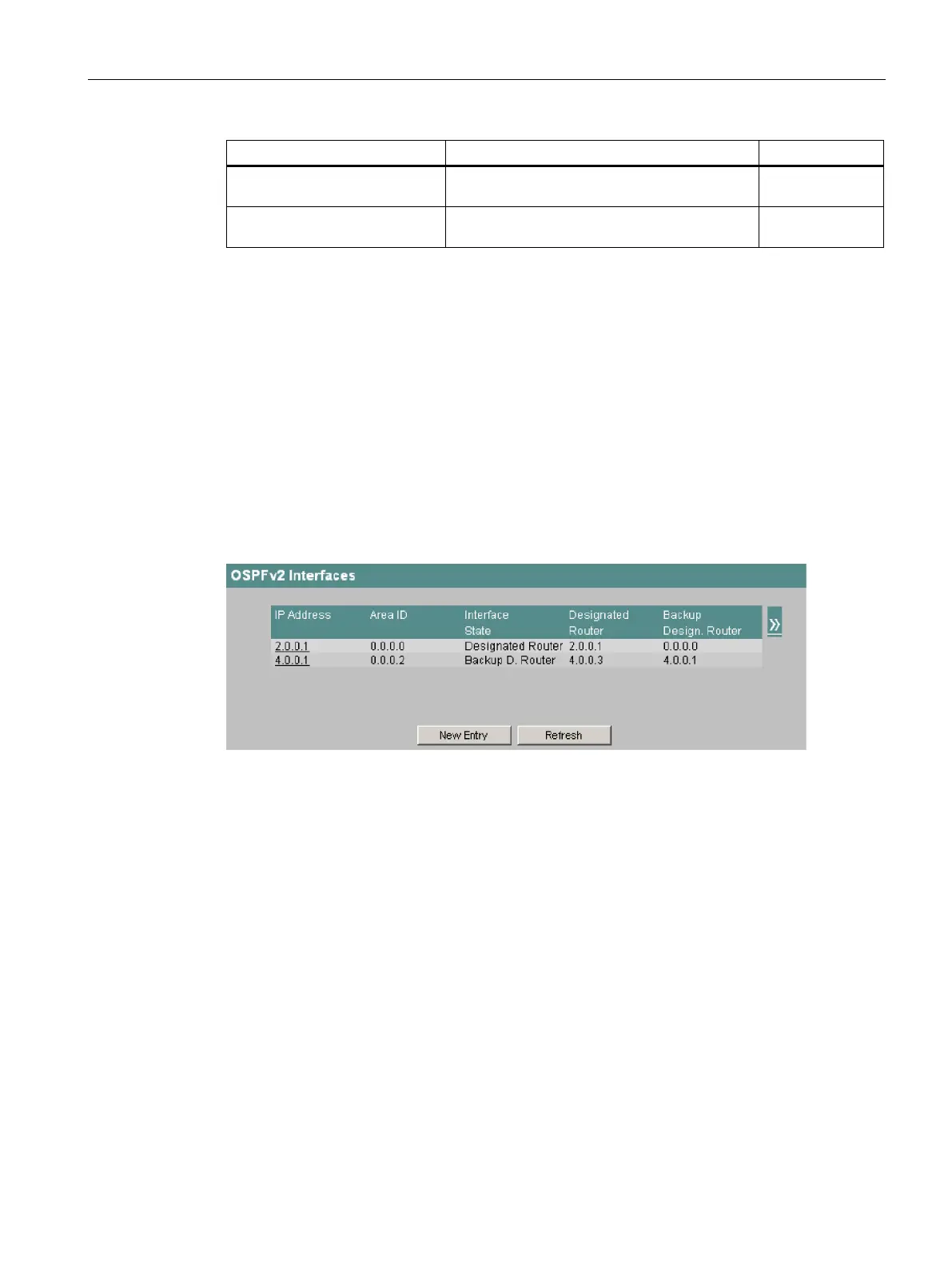

OSPFv2 Interfaces: 1st Page
Figure 4-140 OSPFv2 Interfaces page 1
IP address of the configured OSPF interface.
Specifies the area that belongs to this interface.
Indicates the state of the interface. This can be:
● Down: Nothing is connected to the interface
● Waiting: Starting up and negotiating the interface
● Designated Router: The router has the main responsibility for this network and the
network LSA will be created
● Backup D. Router: The router is backup for the designated router
● Other: The interface has started up and the router is neither designated nor backup
designated router.
