Siemens SINUMERIK 804D sl Function Manual

Detailed Description
2.4 Tool: Tool radius compensation 2D (TRC)
Tool Compensation (W1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-67
,QWHUVHFWLRQV
6DQG6DUH
QRWDSSURDFKHG
66
6

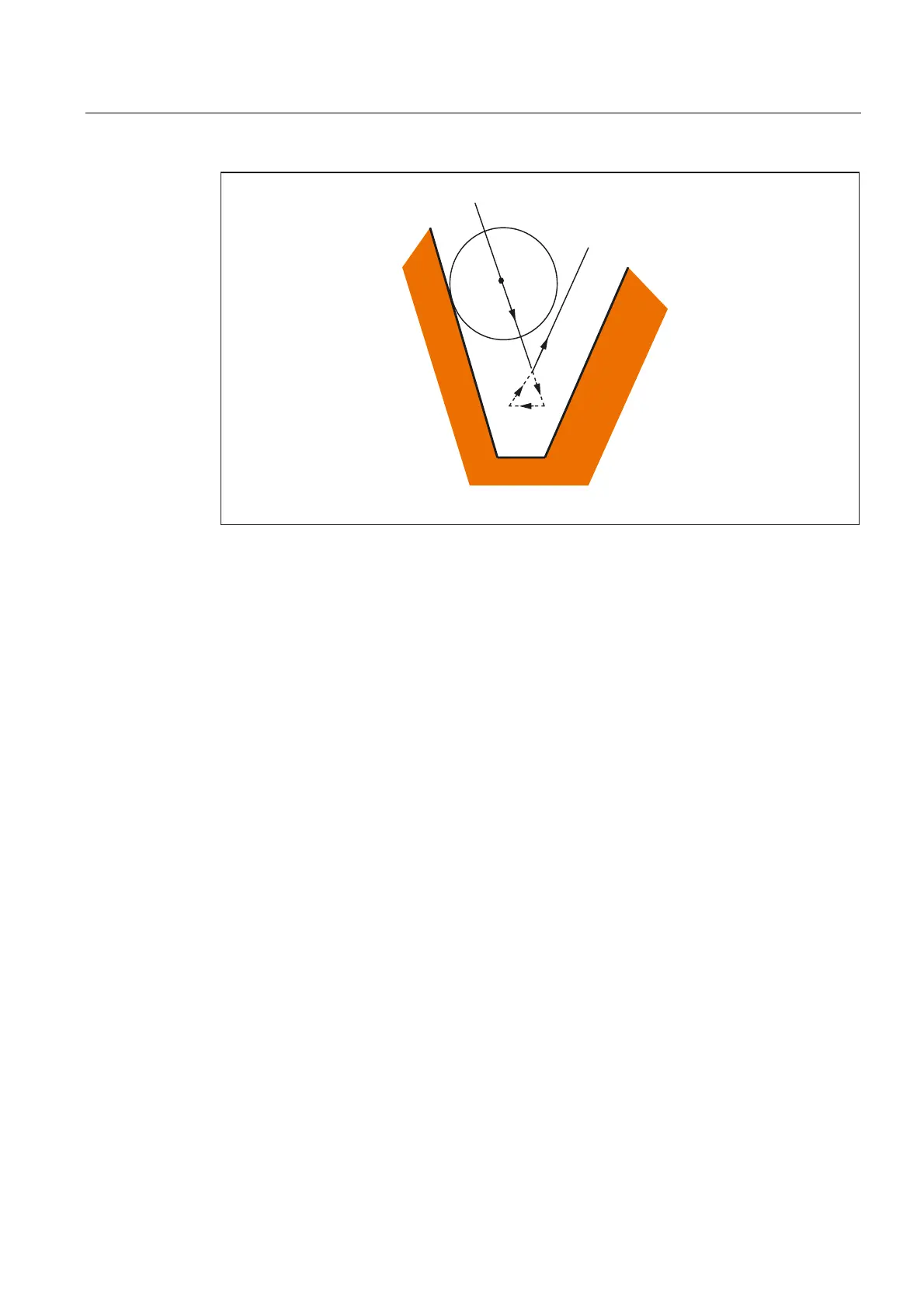

Fig. 2-33 Example: Inside corner with TRC without contour violation (predicting 3 blocks)
Special points to be noted
Where multiple intersections with the next block are found, the intersection nearest the start
of the next block applies.
2.4.8 Collision detection and bottleneck detection
Collision detection
Collision detection (bottleneck detection) examines whether the equidistant paths of non-
consecutive blocks intersect. If an intersection is found, the response is the same as for
inside corners with multiple intersections: The last intersection to be found is valid:
The maximum number of blocks used for the predictive check can be entered in machine
data:
MD20240 $MC_CUTCOM_MAXNUM_CHECK_BLOCKS
(blocks for predictive contour calculation with TRC).
