2.4 Tool: Tool radius compensation 2D (TRC)
Tool Compensation (W1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-69
2IIVHWFXUYHZKHQ',6&!
FRQLFVHFWLRQ
2IIVHWFXUYHZKHQ
',6& FLUFOH

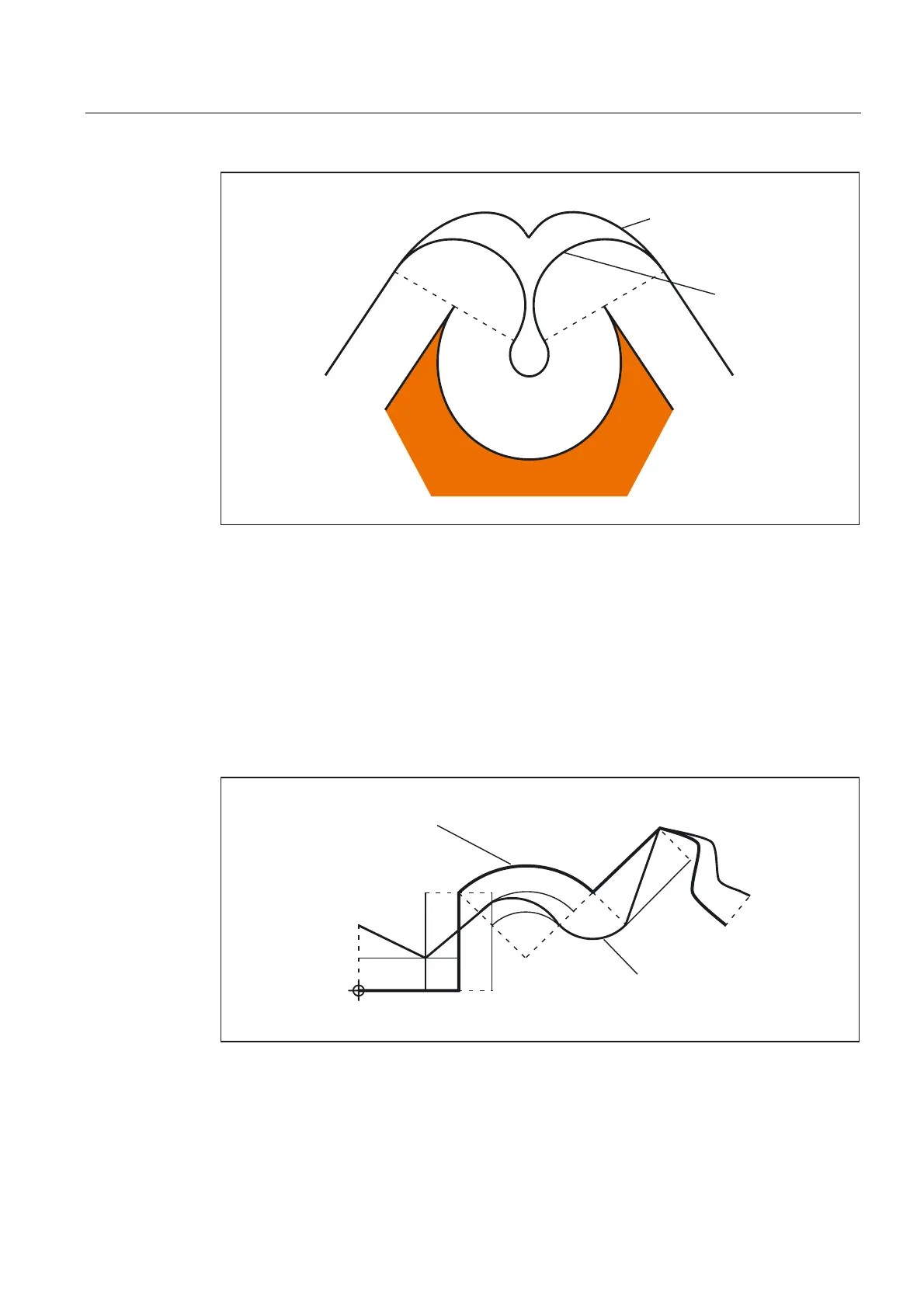

Fig. 2-34 Bottleneck detection and outside corners
2.4.9 Blocks with variable compensation value
Supplementary conditions
A variable compensation value is permissible for all types of interpolation (including circular
and spine interpolation).
It is also permitted to change the sign (and, therefore, the compensation side).
7RROFHQWHUSDWK
3URJUDPPHGFRQWRXU
1
1
1
1
1
Fig. 2-35 Tool radius compensation with variable compensation value
