Chapter
80
Selecting Signals
Overview
You can select a signal using the cross-point button rows
in the cross-point control block or AUX bus control block
(AUX bus operation mode) of each switcher bank.
ICP-X7000 cross-point control block
The number of buttons in a b
utton row varies depending
on the modules used.
• MKS-X7017: 36 buttons
• MKS-X7018: 28 buttons
• MKS-X7019: 20 buttons

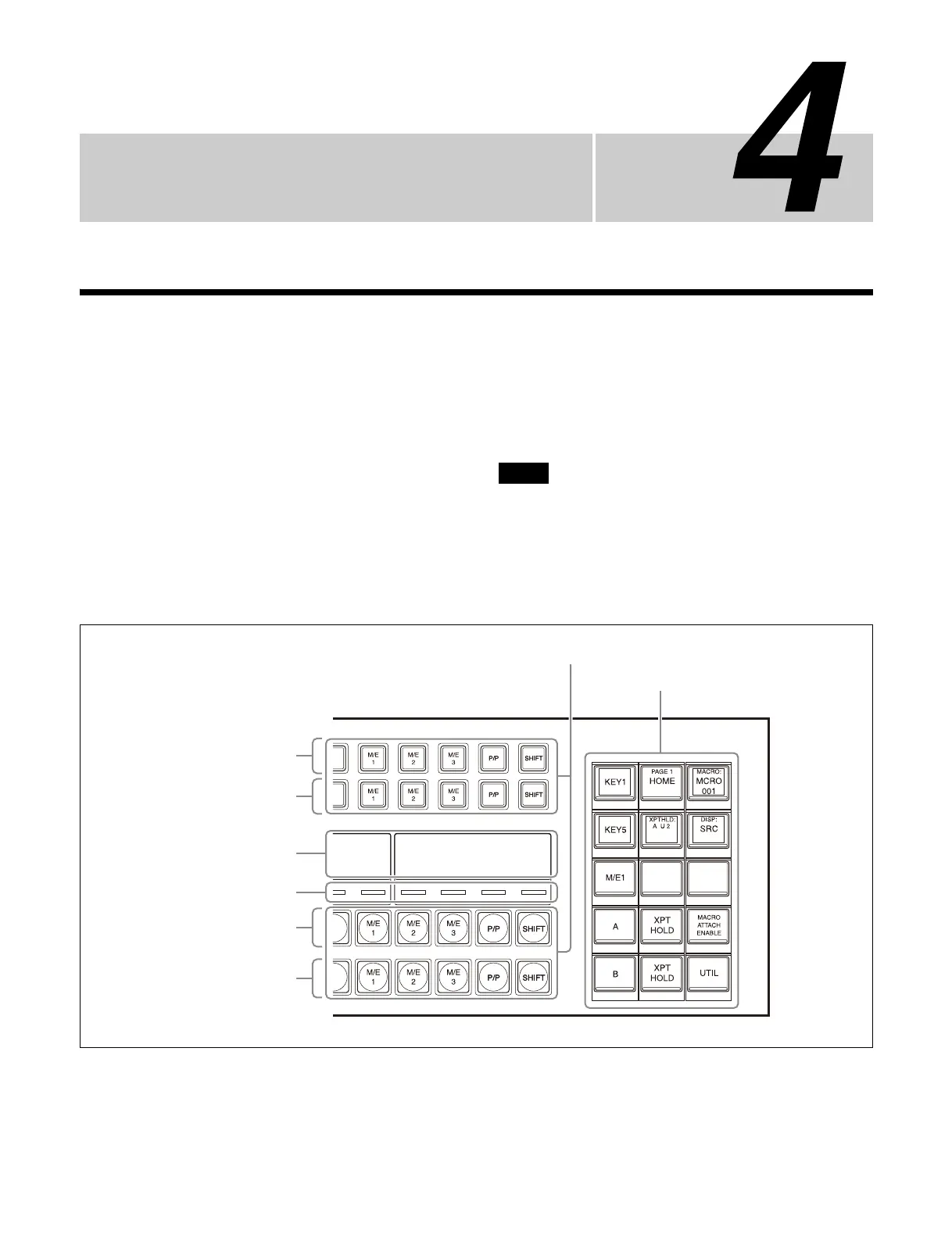

The illustration below shows a
36-button cross-point
control block (key bus mode).
When the button row operation mode is key/AUX bus
deleg
ation mode, the 1st row becomes a delegation button
row.
For details, see “Operation Mode of a Button Row”
(page 83).
Note
Cross-point button rows
Display
Cross-point indicators
Cross-point pad
1st row
2nd row
3rd row
4th row
To Next Page
