Suzuki DF 50 - Removal; Installation

ELECTRICAL 4-4

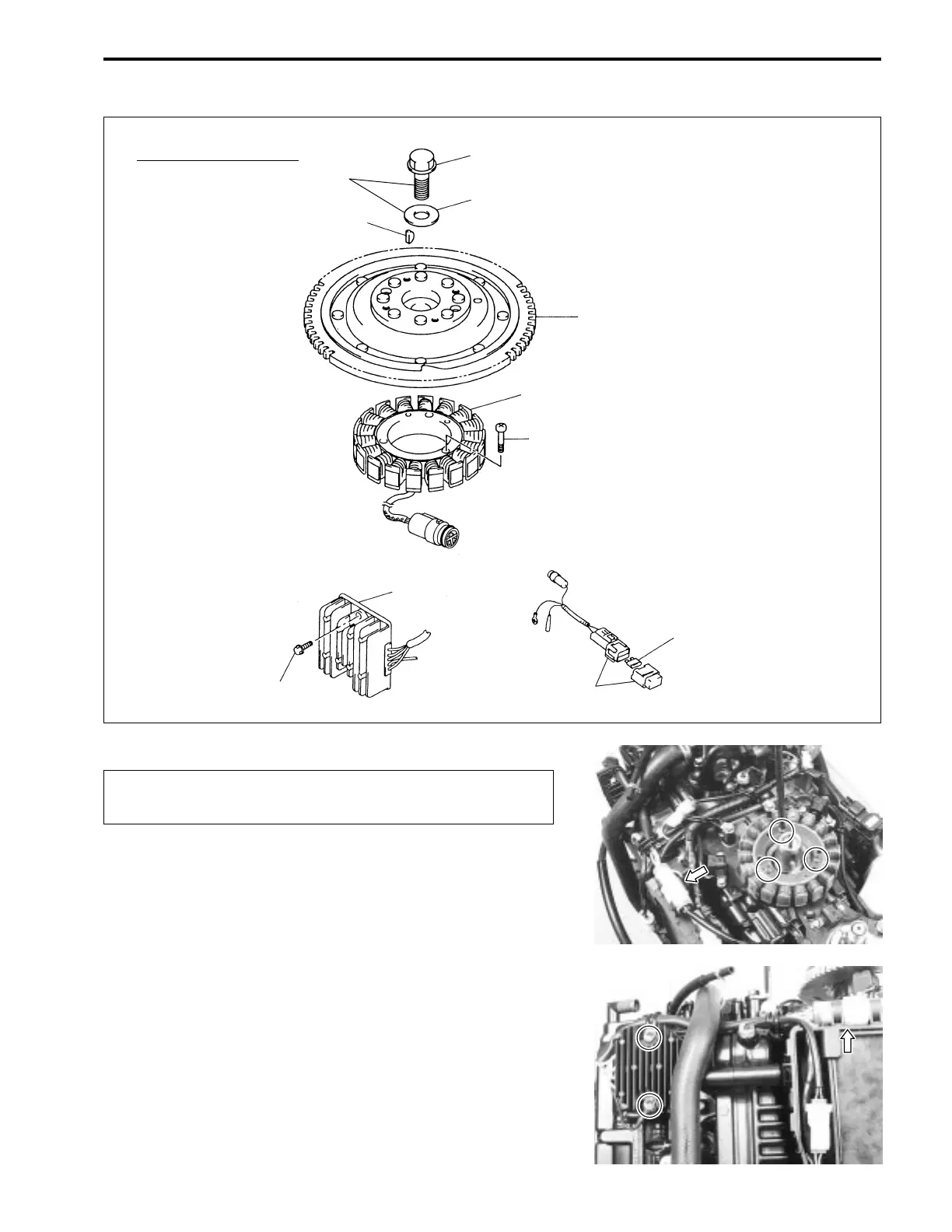

REMOVAL / INSTALLATION
REMOVAL
Prior to removing electrical parts :
• Disconnect battery cables from battery.
Battery charge coil
• Remove flywheel. (See page 3-48.)
• Remove three screws securing the battery charge coil.
• Disconnect battery charge coil lead wire connector from rec-
tifier & regulator.
Rectifier & regulator
• Remove two bolts securing the Rectifier & regulator.
• Disconnect lead wire connectors.
1 1
1 1
1 Bolt (1)
2 2
2 2
2 Washer (1)
3 3
3 3
3 Key (1)
4 4
4 4
4 Flywheel (1)
5 5
5 5
5 Battery charge coil (1)
6 6
6 6
6 Screw (3)
7 7
7 7
7 Rectifier & regulator (1)
8 8
8 8
8 Bolt (2)
9 9
9 9
9 Fuse case (1)
0 0
0 0
0 30A fuse (1)
@
1
200 N
.
m
(20.0 kg-m, 145 Ib.-ft.)
2
3
4
5
6
7
8
9
0
h
o
System construction
