Suzuki DF 50 Service Manual

24 DF40QH / DF50QH
9
11
10
32
31
1
2
14
13
12
15
20
21
19
23
23
16
17
18
22
24
25
5
4
33
27
29
30
26
28
25
30
3
6
8
7
ASSEMBLY
Assembly is reverse order of disassembly.

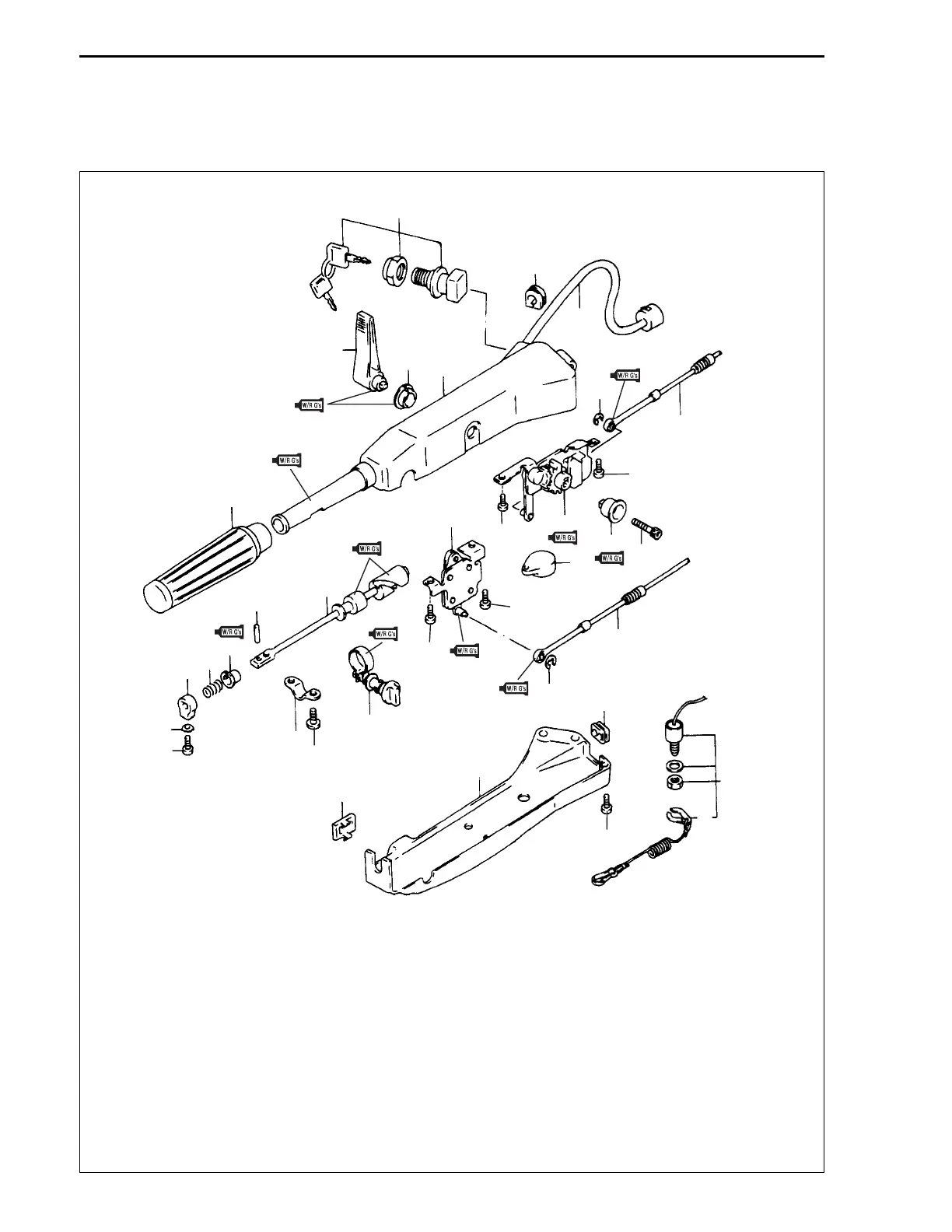

When reassembling tiller handle, refer to the construction diagram below .
1.Tiller handle housing
2.Handle grip
3.Lower cover
4.Screw
5.Cable grommet
6.Switch cover
7.Emergency switch
8.Lock plate
9.Ignition switch
10.Handle wire harness
11.Grommet, Handle wire
23.Screw
24.Throttle cable
25. E-ring
26.Bolt
27.Spacer,shift link
28.Shift cable
29.Shift link
30.Bolt
31.Bush
32.Shift lever
33.Buzzer
12.Screw
13.Washer
14.Handle rod stopper
15.Spring
16.Bush
17.Pin
18.Handle rod
19.Handle grip adjuster
20.Plate
21.Screw
22.Throttle link

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
