30 DF40QH / DF50QH

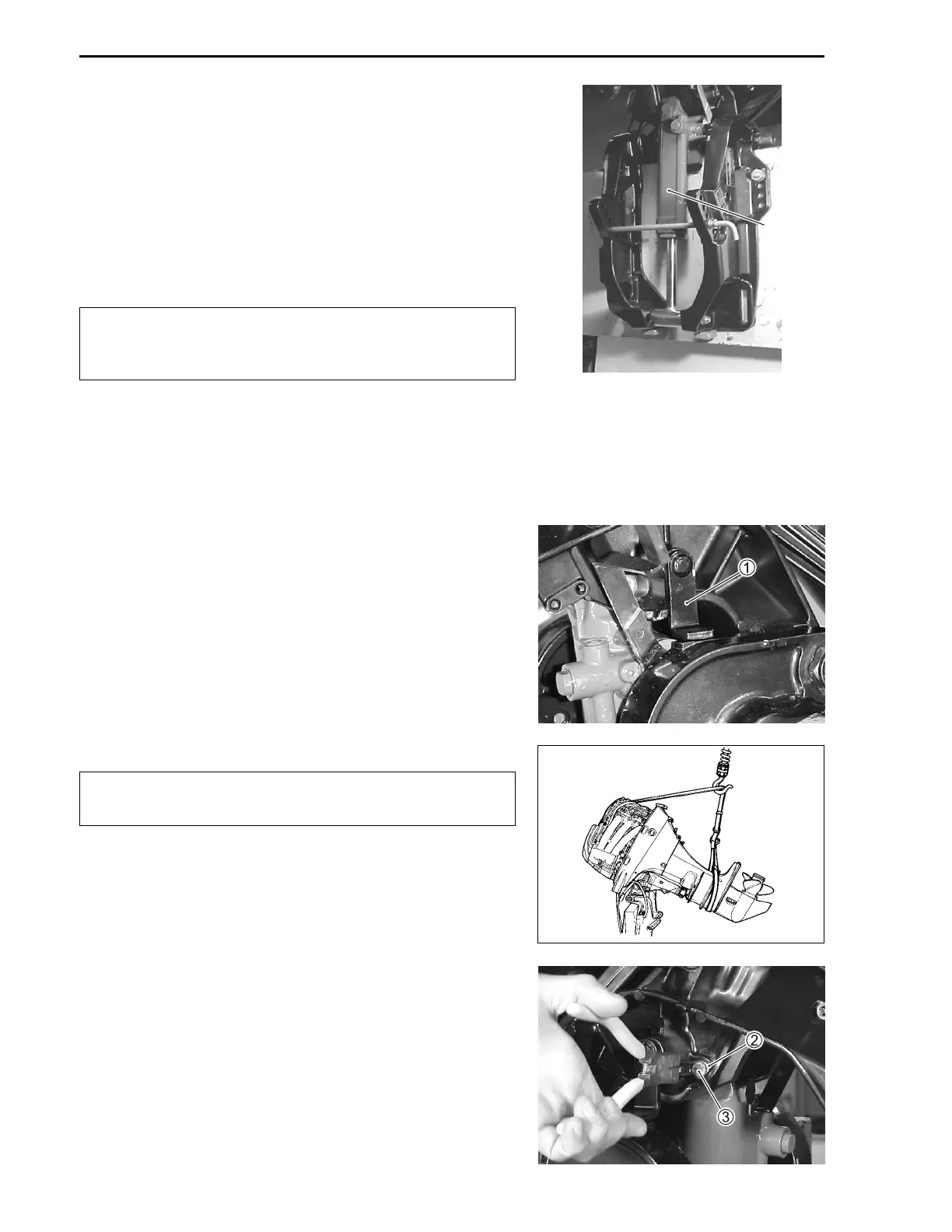

TILT AID SYSTEM
The DF40QH/50QH models are equipped with a tilt aid cylin-
der assembly located between the PORT and STBD clamp
brackets.
This mechanism helps decrease the manual effort required
to tilt the motor. The nitrogen gas sealed in the cylinder ex-
pands as the cylinder rod extends, thereby assisting the
manual tilting process.
AA
AA
A
This unit contains high pressure gas and it must not
be disassembled, punctured, incinerated or exposed
to heat.
REMOVAL
Tilt engine fully up and lower the manual tilt lock levers 1.
AA
AA
A
During the following procedure, firmly secure the
engine and support its weight. (see right)
Remove the snap ring 2 and push tilt cylinder upper shaft
pin 3 out.
11
1. Tilt aid cylinder assembly1. Tilt aid cylinder assembly

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
