Suzuki DF 50 Service Manual

5-4FUEL SYSTEM

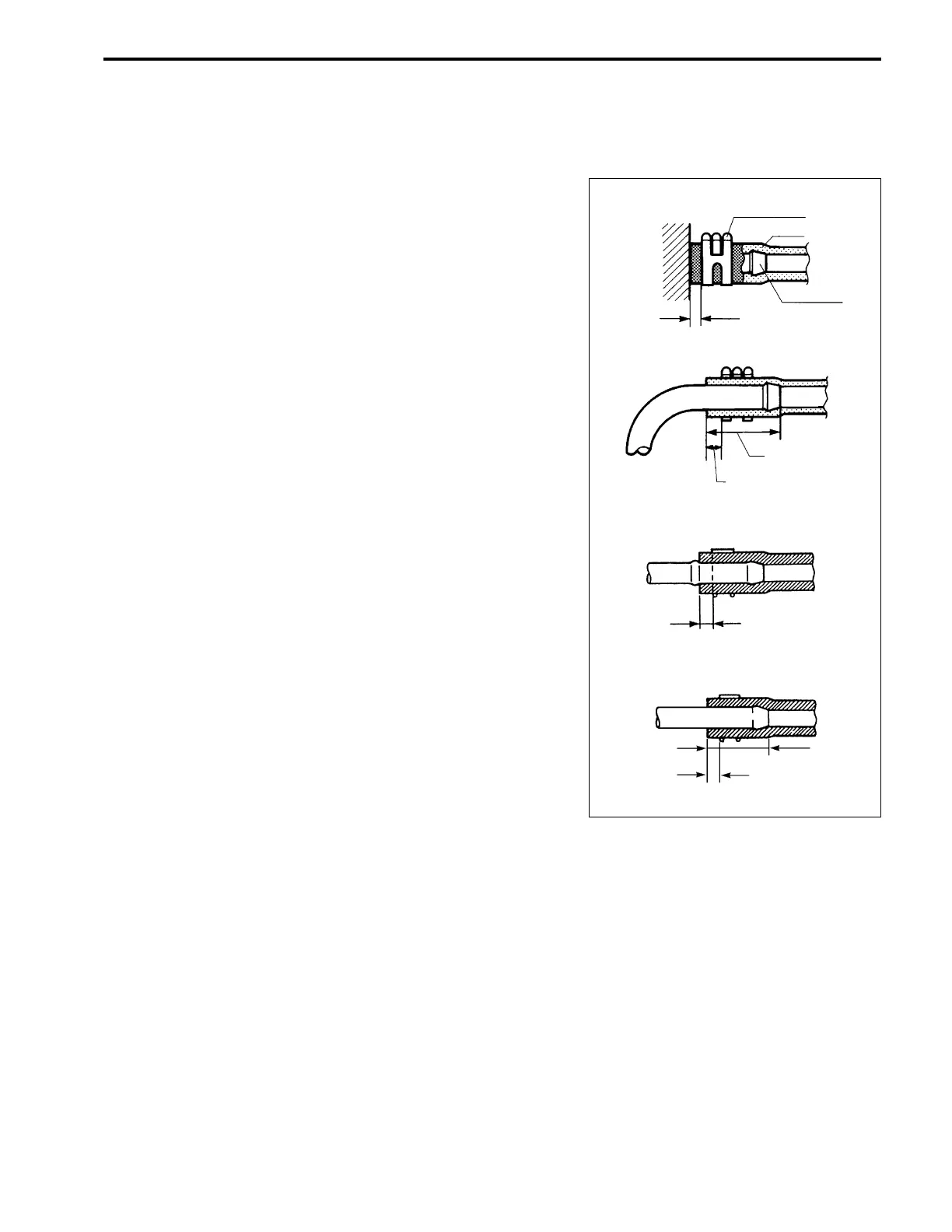

FUEL HOSE CONNECTION
Note that fuel hose connection varies with each type of pipe. Be
sure to connect and clamp each hose correctly by referring to
the figure.
• For type “A” (short barbed end) pipe, hose must completely
cover pipe.
Clamp (Clip)
Hose
Joint piep
3 – 7 mm
(0.1 – 0.3 in)
3 – 7 mm
(0.1 – 0.3 in.)
20 – 30 mm
(0.8 – 1.2 in.)
3 – 7 mm (0.1 – 0.3 in.)
3 – 7 mm
(0.1 – 0.3 in.)
20 – 30 mm
(0.8 – 1.2 in.)
• For type “B” (bent end) pipe, hose must cover straight part of
pipe by 20 – 30mm (0.8 – 1.2in.).
• For type “C” pipe, hose must fit up against flanged part of
pipe.
• For type “D” pipe, hose must cover pipe by 20 – 30mm (0.8 –
1.2 in.).
“A”
“B”
“C”
“D”

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
