9-1 LOWER UNIT

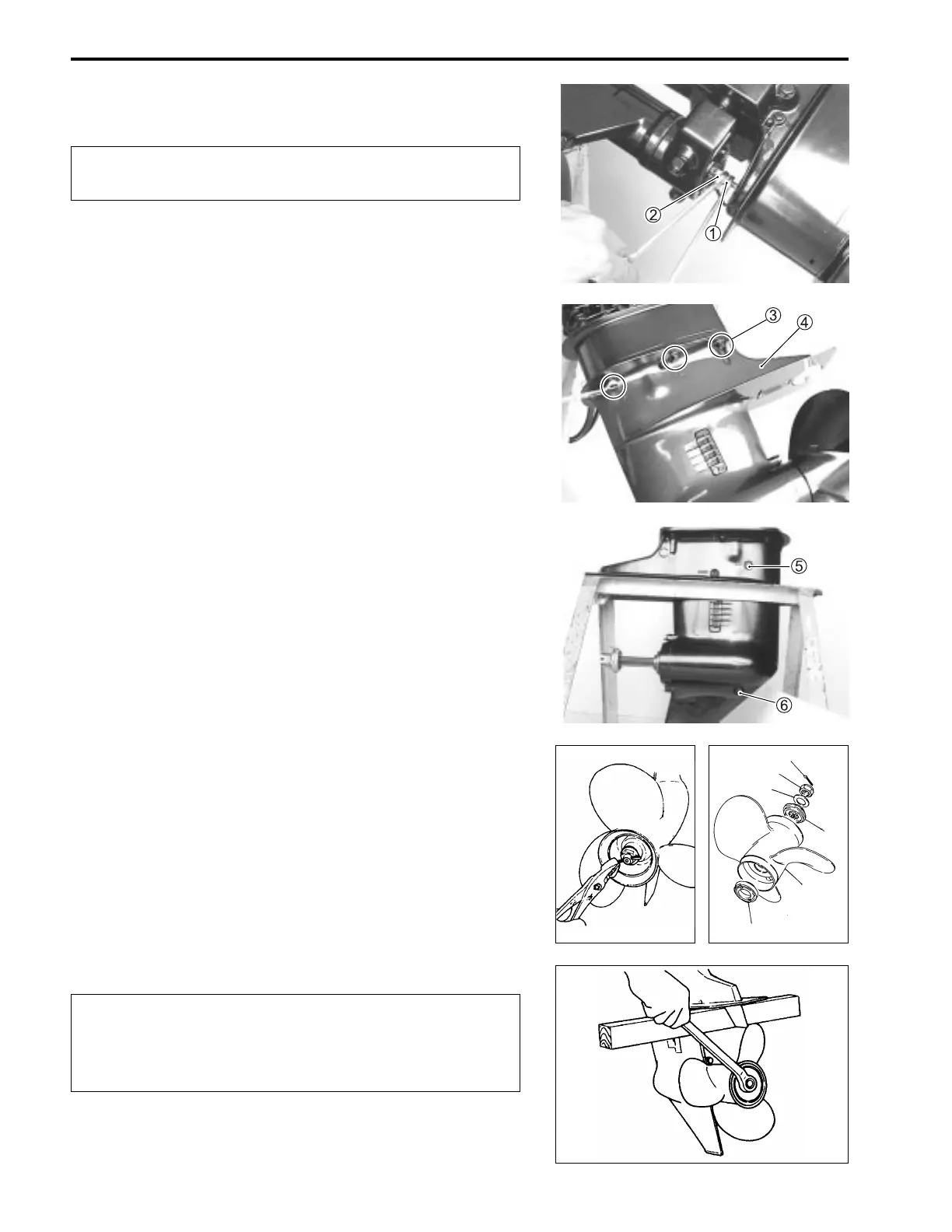

REMOVAL & DISASSEMBLY
A
Always disconnect the battery cable, before removing
lower unit.
To separate the clutch rod from the shift rod, loosen the clutch
rod lock nut 1, then unscrew the turnbuckle 2.
Remove six(6) bolts 3 and separate gearcase 4 from driveshaft
housing.
Place a drain pan under the oil drain plug.
Remove oil drain plug first 6 then oil level plug 5 and allow
gear oil to drain.
Remove cotter pin 7 from propeller nut and remove propeller
nut 8.
Remove washer 9, spacer 0, propeller A and stopper B from
the propeller shaft.
7
8
9
0
A
B
A
To prevent injury from propeller blades, wear gloves
and place a block of wood between the anti - cavitation
plate and the propeller blade tips to lock the propeller
in place.

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
