Suzuki DF 50 - Oil Pump and Case Service

POWER UNIT 6-10
OIL PUMP / CASE

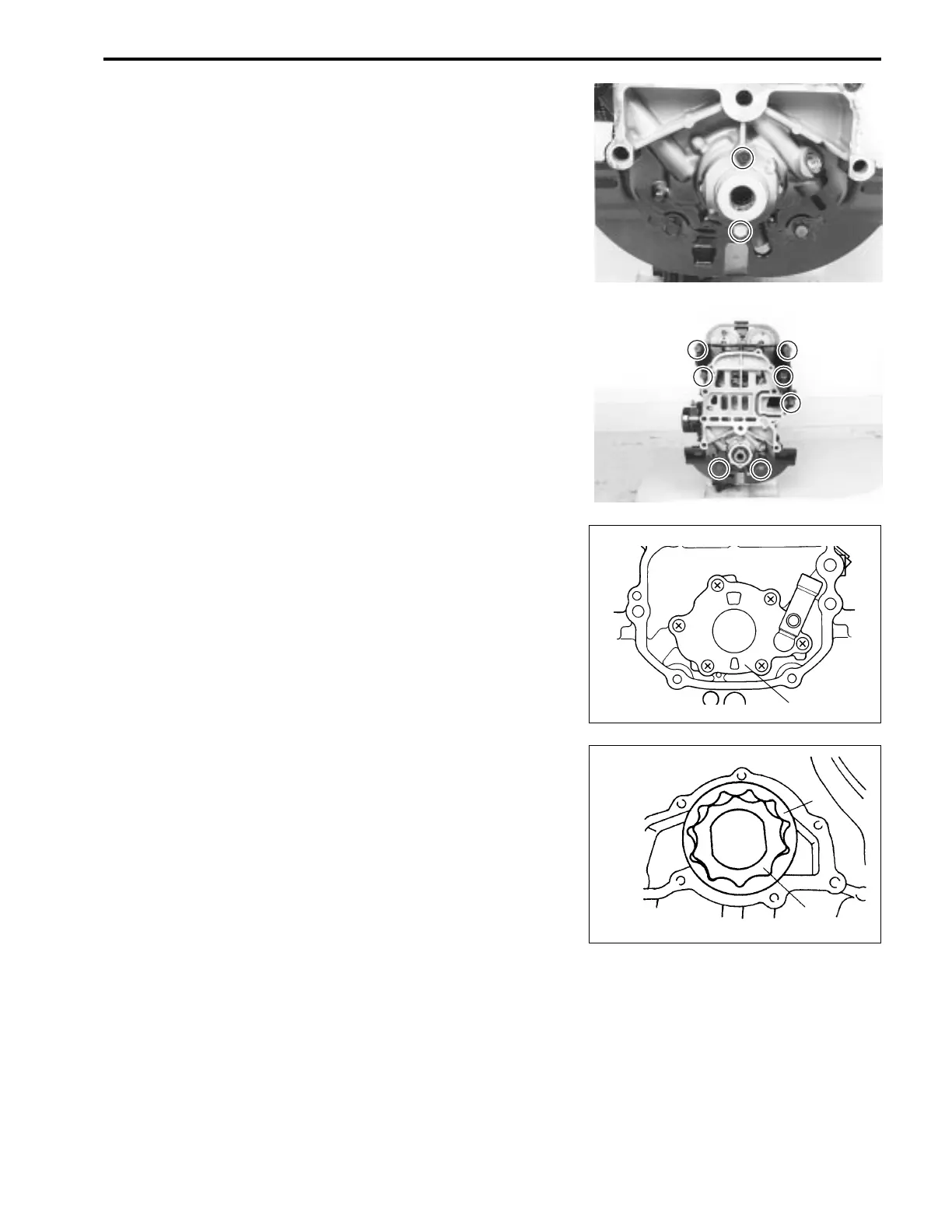

REMOVAL
1. Remove the power unit.
(see page 6-3 to 6-6)
2. Remove the two (2) bolts securing the under oil seal hous-
ing to oil pump case, then remove the under oil seal hous-
ing.
3. Remove the seven (7) bolts securing the oil pump case to
cylinder block, then remove oil pump case with oil pump.
DISASSEMBLY
1. Remove the screws securing oil pump rotor plate to the oil
pump case, then remove the oil pump rotor plate.
2. Take out inner rotor and outer rotor.
Rotor plate
1
2
1. Outer rotor 2. Inner rotor
