Suzuki DF 50 Service Manual

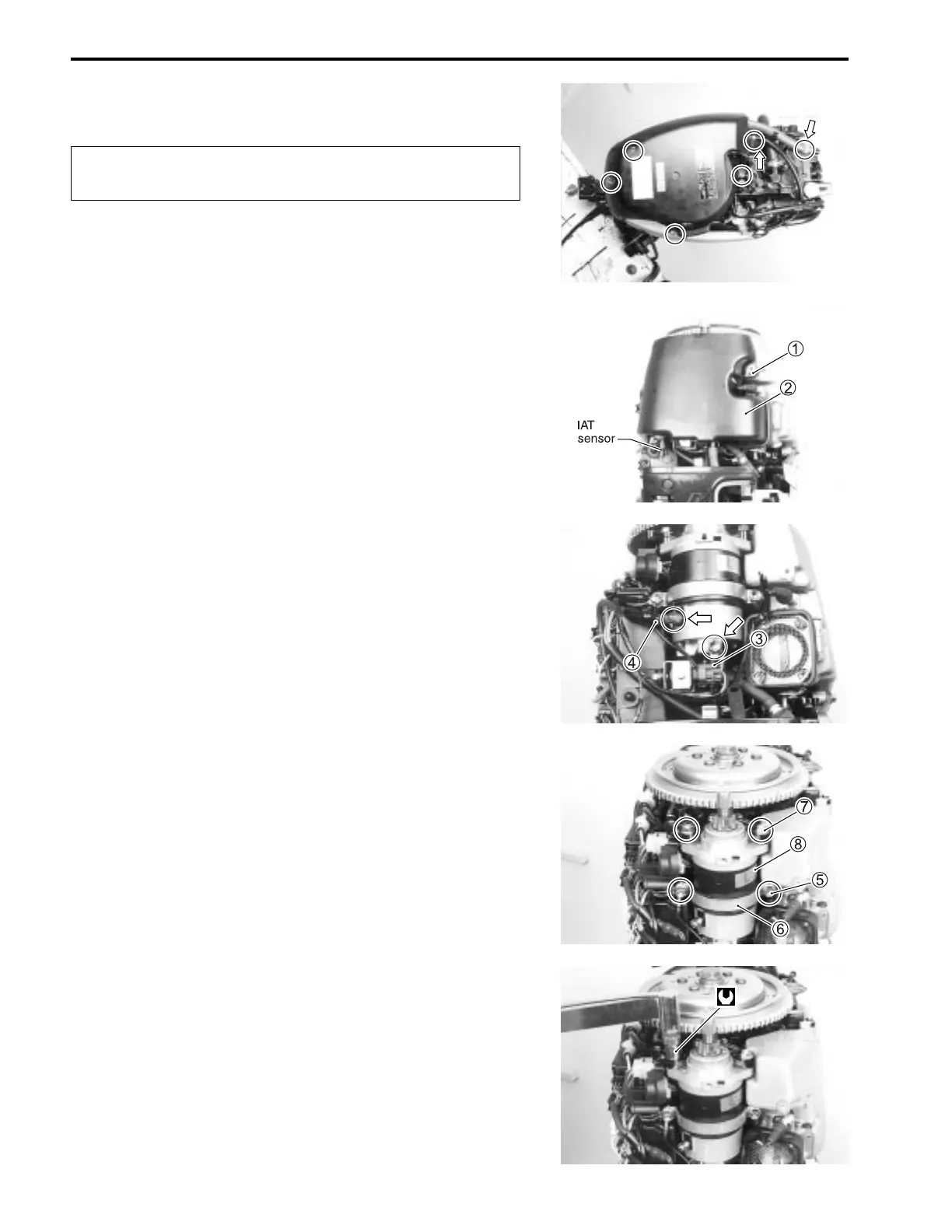

4-11 ELECTRICAL
STARTING MOTOR
REMOVAL
Prior to removing starter motor :
• Disconnect battery cables from battery.
1. Remove four bolts and flywheel cover.
2. Remove bolt 1 and silencer case 2.
3. Disconnect lead wire connector from IAT (Intake air tem-
perature) sensor.
4. Remove bolt and negative - battery cable 3.
5. Remove starter motor sub cable 4.
6. Remove two bolts 5 and starter motor band 6.
7. Remove two bolts 7 and starter motor 8.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Install starter motor and tighten starter motor mounting bolts
securely.
Starter motor mounting bolt :
23 N
.
m (2.3 kg-m, 16.5 Ib.-ft.)
@

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
