16 DF40/50 “K7” (’07) MODEL
TILLER HANDLE (DF40QH, DF50QH AND DF50WQH)

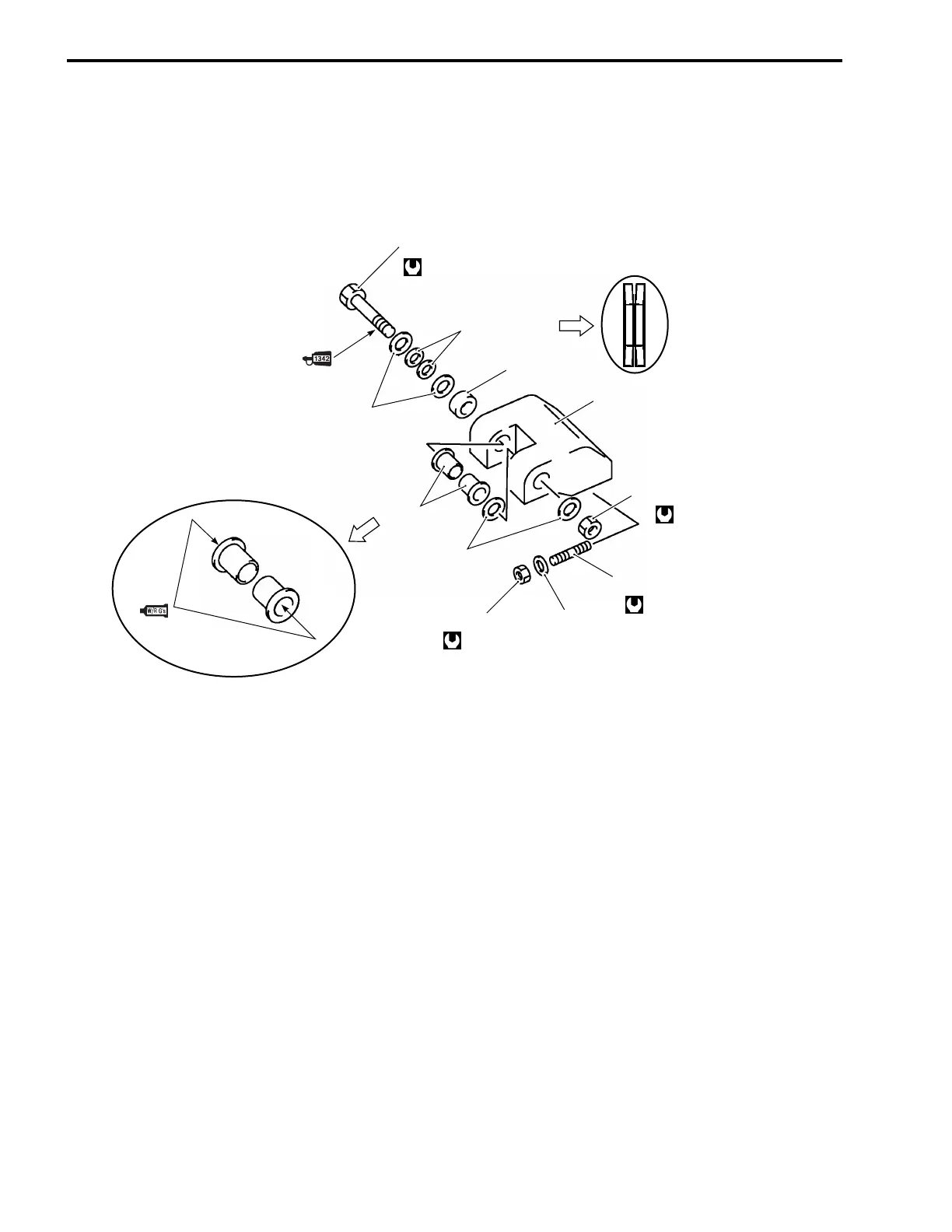

TILLER HANDLE BRACKET
The tiller handle bracket has been changed in shape and related parts.
Install the spring washers with direction as shown in figure.
Installation
1. Install the tiller handle bracket and related parts in position.
NOTE:
• Apply the thread lock to the tiller handle pivot bolt.
! 99000-32050: THREAD LOCK “1342”
• Apply the water resistant grease to the bush.
" 99000-25160: SUZUKI WATER RESISTANT GREASE
2. The tiller handle pivot bolt is tightened first to the specified
torque.
# 25 N·m (2.5 kg-m, 18.0 lb-ft)
3. Then the tiller handle pivot nut is tightened to the specified
torque.
# 45 N·m (4.5 kg-m, 32.5 lb-ft)
Tiller handle pivot bolt
25 N
.
m
(2.5 kg-m, 18.0 lb-ft)
Spring washer
Spacer
Washer
Direction of spring washers
Tiller handle bracket
Tiller handle pivot nut
45 N
.
m
(4.5 kg-m, 32.5 lb-ft)
50 N
.
m
(5.0 kg-m, 36.0 lb-ft)
25 N
.
m
(2.5 kg-m, 18.0 lb-ft)
No change
Stud bolt
Washer
Washer
Lock nut
Bush

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
