3-1 ENGINE CONTROL SYSTEM
ENGINE CONTROL SYSTEM STRUCTURE
The DF40 / DF50 models employ an integrated control system which performs the control functions for fuel
injection, ignition, idle / trolling speed (idle air), etc. through the ECM (Engine control module).

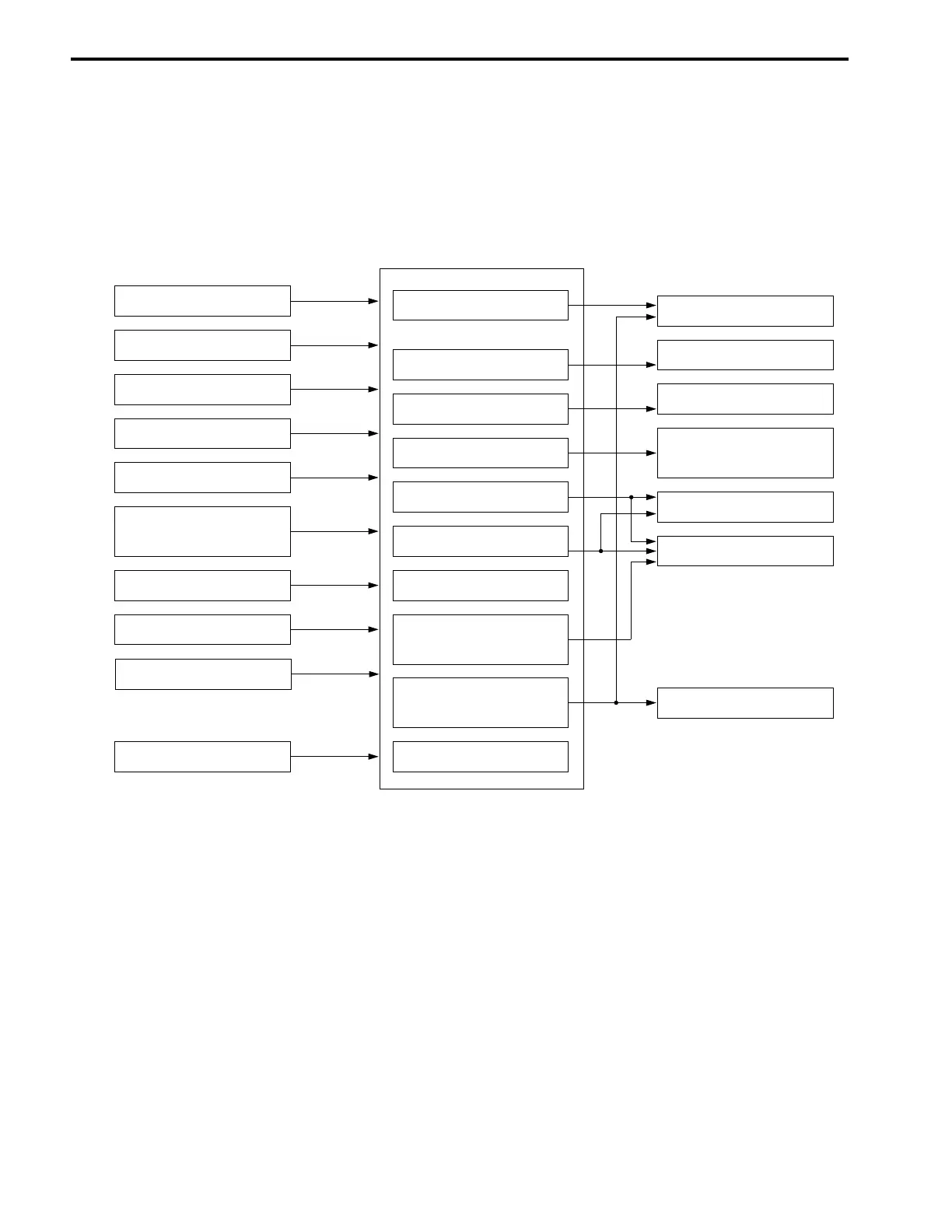

SYSTEM STRUCTURE 1
[Abbreviation]
ECM (Engine control module)
CKP (Crankshaft position sensor)
CMP (Camshaft position sensor)
MAP (Manifold absolute pressure sensor)
IAT (Intake air temperature sensor)
CTP (Close throttle position switch)
IAC (Idle air control valve)
INPUT
(sensor / switch)
CONTROL
(ECM)
OUTPUT
(actuator etc.)
Fuel injection system
IAT sensor
Cylinder temp. sensor
Exhaust manifold
temp. sensor
CTP switch
Neutral switch
O
2
sensor (optional)
MAP sensor
CMP sensor
CKP sensor
Ignition system
Idle air system
Fuel pump system
Caution system
Self-diagnostic system
Fail-safe system
Operating hour
indication system
Start-in-gear protec-
tion system
O
2
feedback system
Ignition coil
IAC valve
High pressure fuel
pump
Caution buzzer
Monitor-tachometer
Fuel injector
Starter motor
Oil pressure switch

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
