POWER TRIM AND TILT 8-14

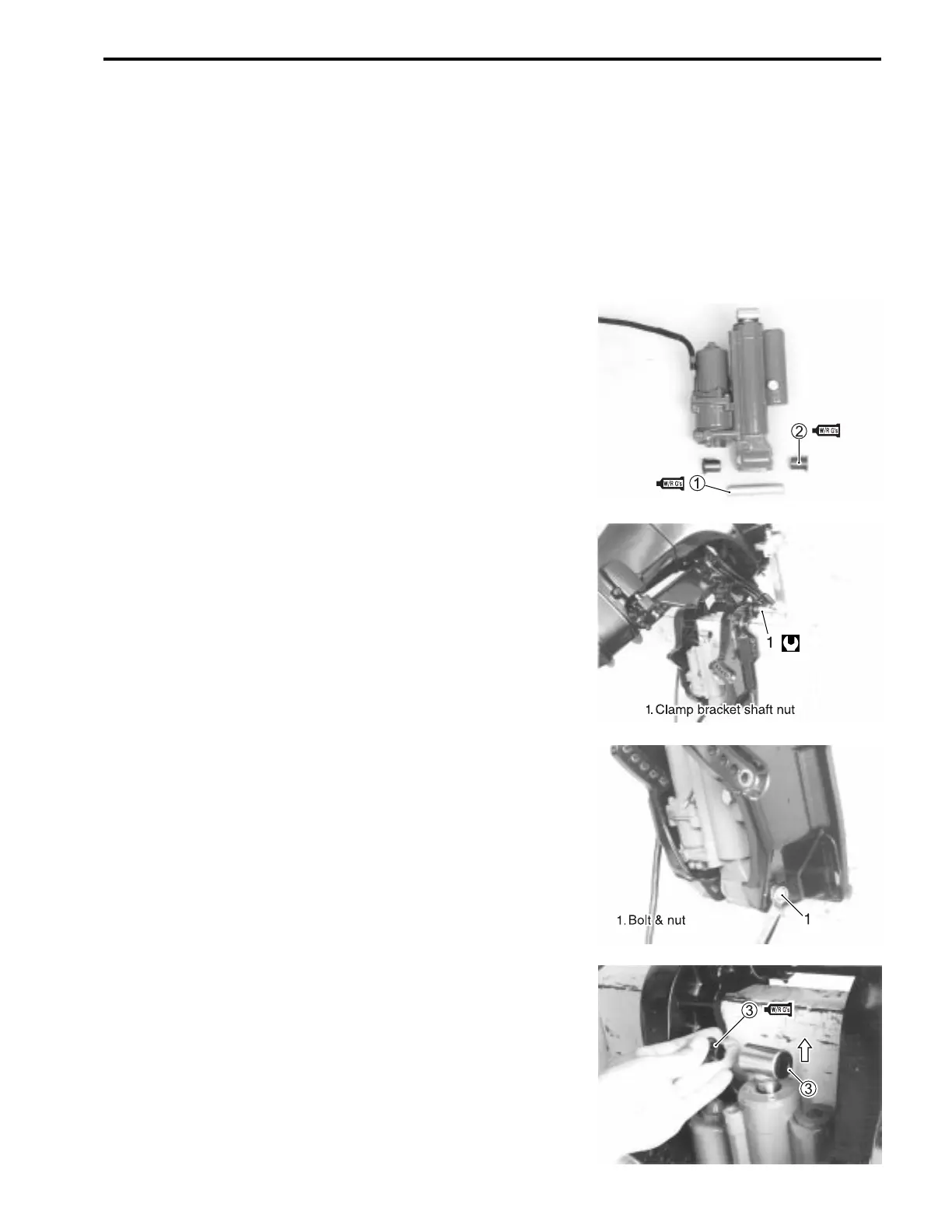

INSTALLATION
Installation is reverse of removal with special attention to fol-
lowing steps.
Lower tilt rod full down position.
Apply Water Resistant Grease to the tilt cylinder lower shaft 1
and lower shaft bushes 2.
Install lower shaft and bushes into position in the lower eyelet.
99000-25160 : Water Resistant Grease
Place the PTT unit in position between the clamp brackets.
Tighten the clamp bracket shaft nut to specified torque.
Clamp bracket shaft nut :
43 N
.
m (4.3 kg-m, 31.0 lb.-ft.)
Slide the PTT cylinder lower shaft bolt through the clamp bracket
and lower shaft, then secure with the nut.
Apply Water Resistant Grease to tilt rod upper bushes 3, then
install bushs in tilt rod.
Operate the PTT motor to extend the PTT rod upward.
Align the tilt rod with the hole in the swivel bracket as the tilt rod
extends.
99000-25160 : Water Resistant Grease
l
l
@

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
