Suzuki DF 50 Service Manual

18 DF40/50 “K7” (’07) MODEL

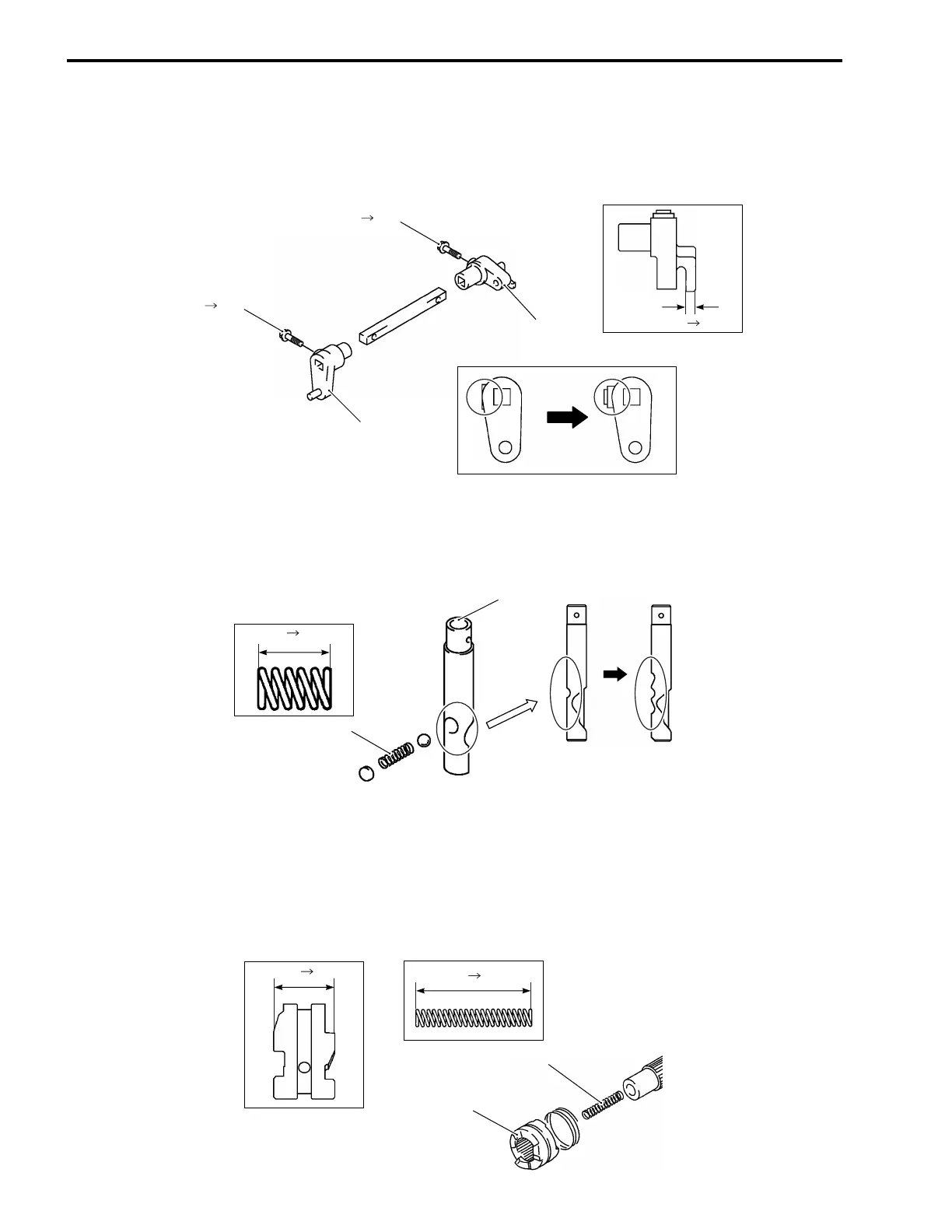

CLUTCH SHAFT ARM AND CLUTCH SHAFT SIDE ARM
The clutch shaft arm and clutch shaft side arm have been changed in shape.
The screw has been changed to bolt.
DETENT SPRING AND SHIFT CAM
The free length of detent spring has been changed.
Two detent notches at forward and reverse positions are added to the shift cam.
CLUTCH DOG SHIFTER AND RETURN SPRING
The width of clutch dog shifter has been changed.
The free length of return spring has been changed.
Return spring free length
Standard: 57.0 mm (2.24 in)
Service limit: 55.0 mm (2.17 in)
4 mm 6 mm
Screw Bolt
Screw Bolt
Clutch shaft side arm
Clutch shaft arm
11 mm 14 mm
Shift cam
Detent spring
30 mm 28 mm
62 mm 57 mm
Clutch dog shifter
Return spring

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
