DF40QH / DF50QH 17
EMERGENCY STOP SWITCH
Lock plate IN RUN Lock plate OFF STOP
IGNITION SWITCH
BATTERY 12V 70Ah.
STARTER MOTOR RELAY
CTP SWITCH
IAT SENSOR
IAC VALVE
STARTER MOTOR
(ENGINE CONTROL MODULE)
ECM
ECM MAIN RELAY
RECTIFIER & REGULATOR
IGNITION COILS
EX-MANI, TEMP. SENSOR
FUEL INJECTOR
CMP SENSOR
FUSE
HIGH PRESSURE FUEL PUMP
CYLINDER TEMP. SENSOR
MAP SENSOR
ALTERNATOR
FUSE
COMMUNICATION CONNECTOR
CAP
TILLER HANDLE
1CKP SENSOR No.1 2CKP SENSOR No.2 3CKP SENSOR No.3 4BATTERY CHARGE COIL
5CAUTION BUZZER (OVERHEAT / OIL PRESSURE / BATTERY VOLTAGE / DIAGNOSIS) 6NEUTRAL SWITCH N ® ON F,R ® OFF
7OIL PRESSURE SWITCH 1.0 kgf/cm
2
or less ® ON

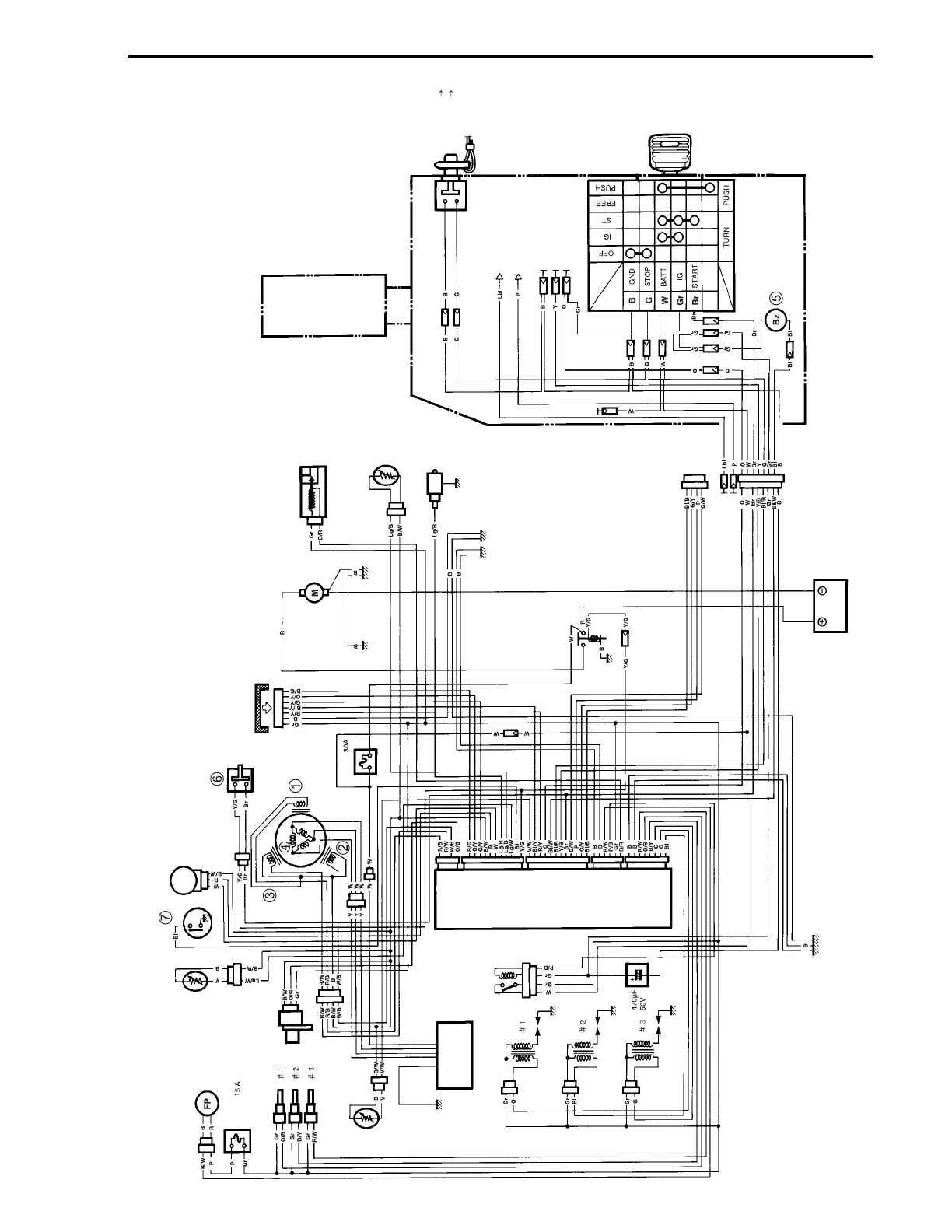

WIRING DIAGRAM
DF40QH/DF50QH

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
