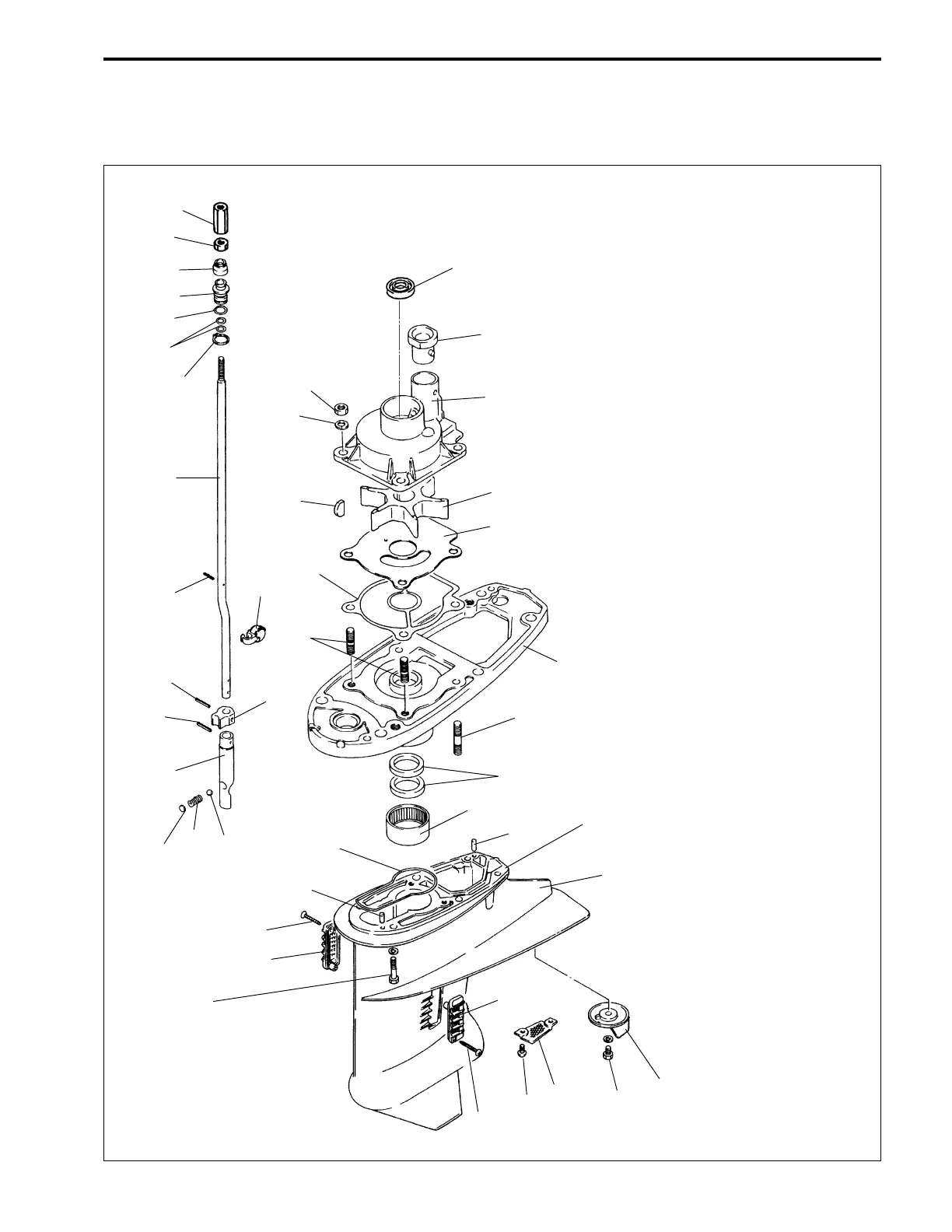

LOWER UNIT 9-12
G
F
1
2
3
4
5
6
7
8
9
A
0
B
C
D
E
H
I
L
N
Q
R
S
T
U
V
W
X
Y
Z
[
Y
Z
\
]
^
a
23 N
.
m
(2.3 kg-m, 16.6 lb.-ft.)
@
k
k
k
l
l
l
l
j
J
K
M
O
P
ASSEMBLY & INSTALLATION
Assembly & Installation are reverse of disassembly with spe-
cial attention to following steps.
1 Dust boot
2 Shift rod guide
3 O-ring
4 O-ring
5 Circlip
6 Shift rod
7 Pin
8 Magnet set
9 Pin
0 Shift rod lower guide
A Pin
B Shift cam
C Ball
D Spring
E Notch plate
F Nut
G Turnbuckle
H Grommet
I Water pump case
J Nut
K Lock washer
L Water pump impeller
M Key
N Pump case under panel
O Gasket
P Stud bolt
Q Driveshaft bearing housing
R Stud bolt
S Oil seal
T Bearing
U Seal ring
V Pin
W Pin
X Gear case
Y Screw
Z Water filter
[ Bolt w/washer
\ Screw
] Sub water filter
^ Bolt
a Trim tab
Oil seal

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
