Suzuki DF 50 Service Manual

POWER UNIT 6-12
ASSEMBLY
(1) Wash, clean and then dry all disassembled parts.
(2) Apply thin coat of engine oil to inner and outer rotors, oil
seal lip and inside surfaces of oil pump case and plate.
(3) Install outer and inner rotor to pump case.
(4) Install outer plate.
Tighten six (6) screws securely.
After mounting the outer plate, check to be sure that each
rotor turns smoothly by hand.
INSTALLATION
Installation is reverse of removal with special attention to fol-
lowing steps.
1. Check for proper timing chain installation.
(see page 6-20)
2. Install two (2) dowel pins to cylinder block.
Before fitting the pump case, oil the oil seal lip.
1
2

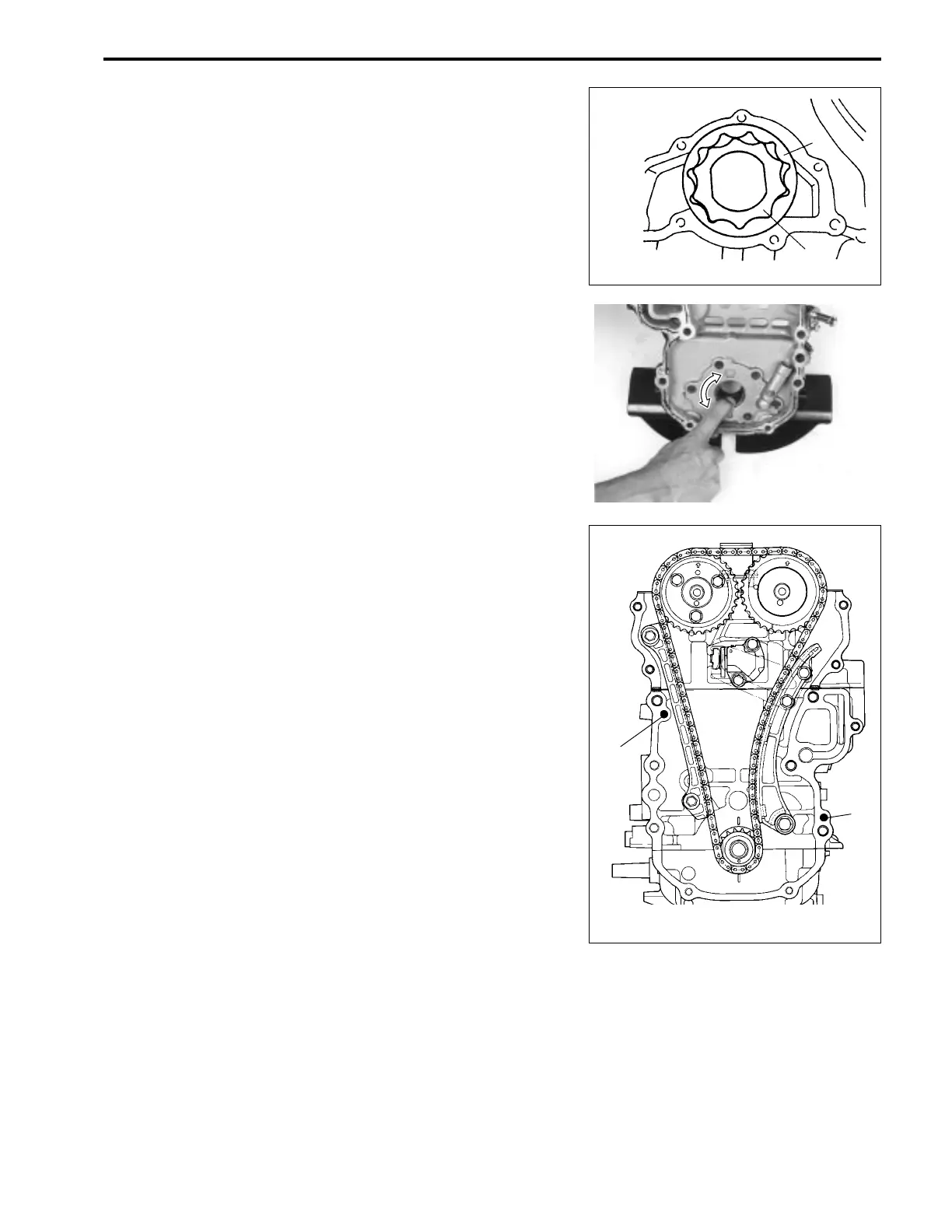

1. Outer rotor 2. Inner rotor
1
1
1. Dowel pin

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
