20 DF40QH / DF50QH
MID UNIT

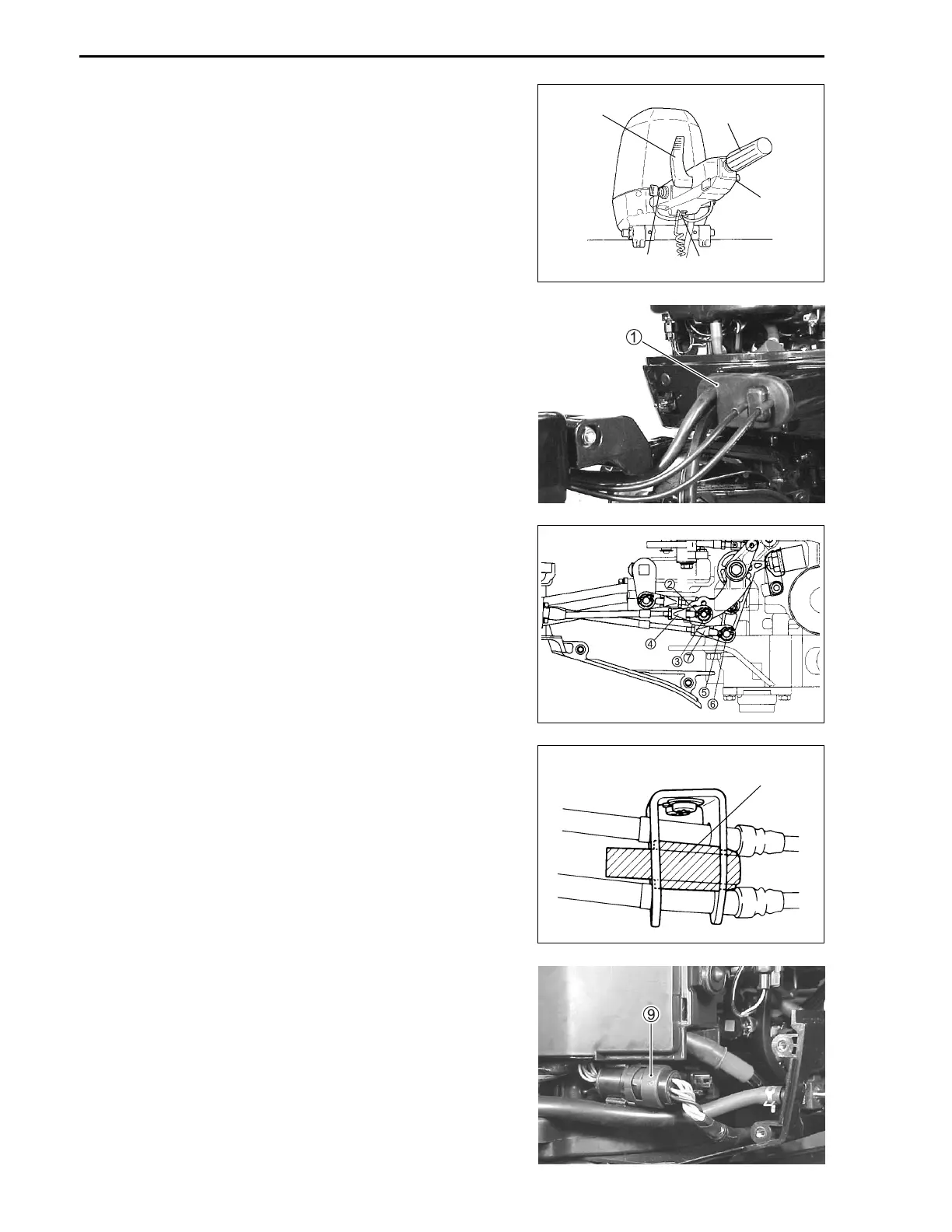

TILLER HANDLE
Functions
The tiller handle is equipped with the following centralized
component parts necessary for proper operation and han-
dling.
1Ignition switch 2Emergency stop switch
3Shift lever 4Throttle control grip
5Throttle friction adjust knob
REMOVAL
1. Remove the rigging port grommet 1 from front panel.
Remove both lower side covers.
2. Remove snap pin 2, washer 3 and throttle cable con-
nector 4 from throttle control arm.
Unthread connector from throttle cable.
3. Remove snap pin 5, washer 6 and shift cable connec-
tor 7 from clutch control lever.
Unthread connector from shift cable.
4. Remove cable stopper 8 from between cables.
5. Disconnect handle wire harness connector 9 from en-
gine wiring harness.
8
3
4
5
1
2

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
