Suzuki DF 50 Service Manual

5-3 FUEL SYSTEM
FUEL LINE
REMOVAL / INSTALLATION
Pay special attention to the following steps when removing or
installing fuel hoses.
A
The components after the high pressure fuel pump
remain pressurized at all times.
To protect against fuel spray, relieve fuel line pressure
before disconnecting or removing components.
B
• Do not over bend (kink) or twist hoses when install-
ing.
• When installing hose clamps, position tabs to avoid
contact with other parts.
• Be sure hoses do not contact rods, levers or other
components with engine either operating or at rest.
• Extreme care should be taken not to cut, abrade or
cause any other damage to hoses.
• Use care not to excessively compress hoses when
tightening clamps.
NOTE:
• Check fuel hose routing. (See page 10-7 and 10-9)
• Check for fuel leakage.
OFF
ON

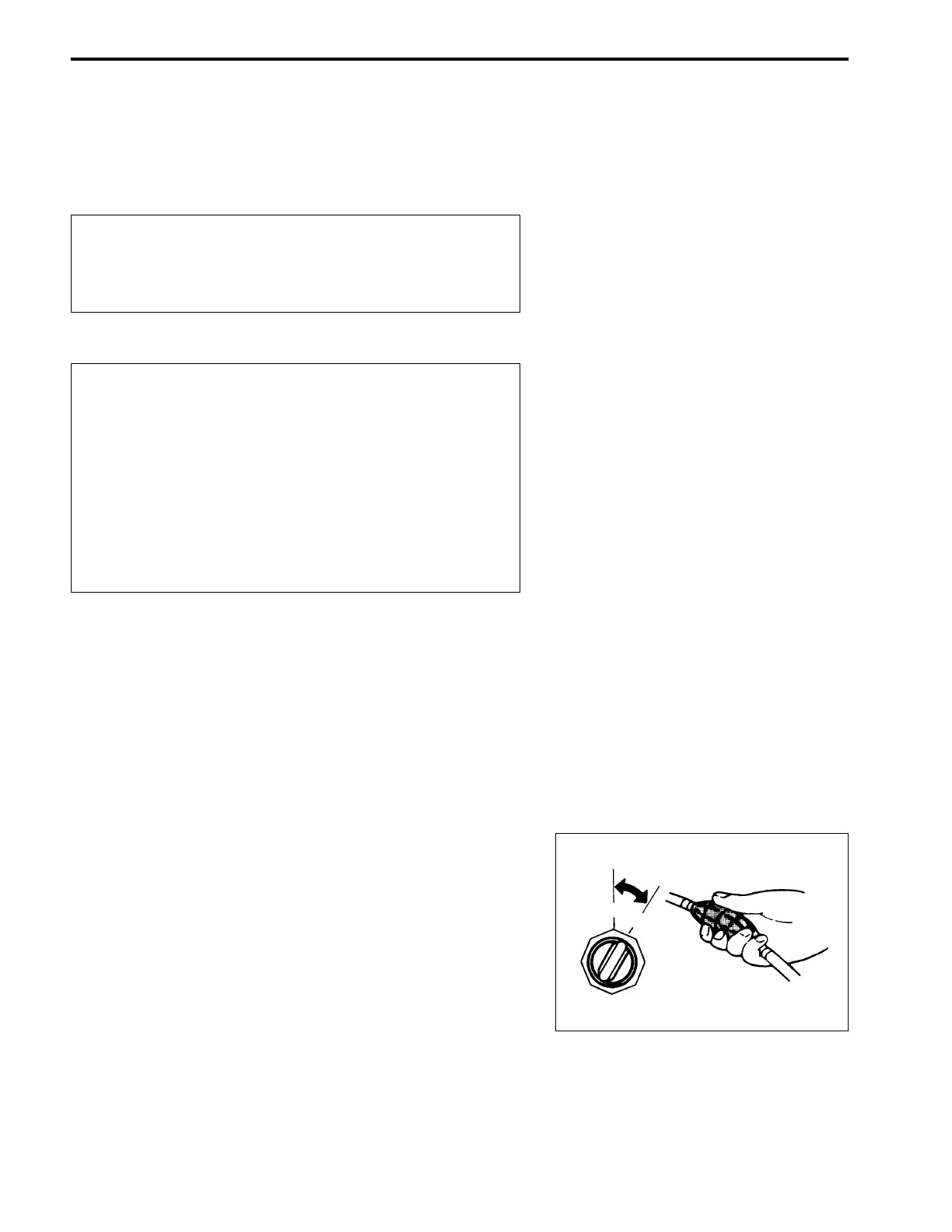

FUEL LEAKAGE CHECK PROCEDURE
After performing any fuel system service, always be sure there
is not fuel leakage by checking as follows.
1. Squeeze fuel primer bulb until you feel resistance.
2. Turn ignition switch “ON” for 3 seconds(to operate fuel
pump), then turn it “OFF”.
Repeat this (ON and OFF) procedure 3 or 4 times to pres-
surize the fuel system.
3. Once pressurized, check all connections and components
for any signs of leakage.

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
