Suzuki DF 50 Service Manual

1-17 GENERAL INFORMATION

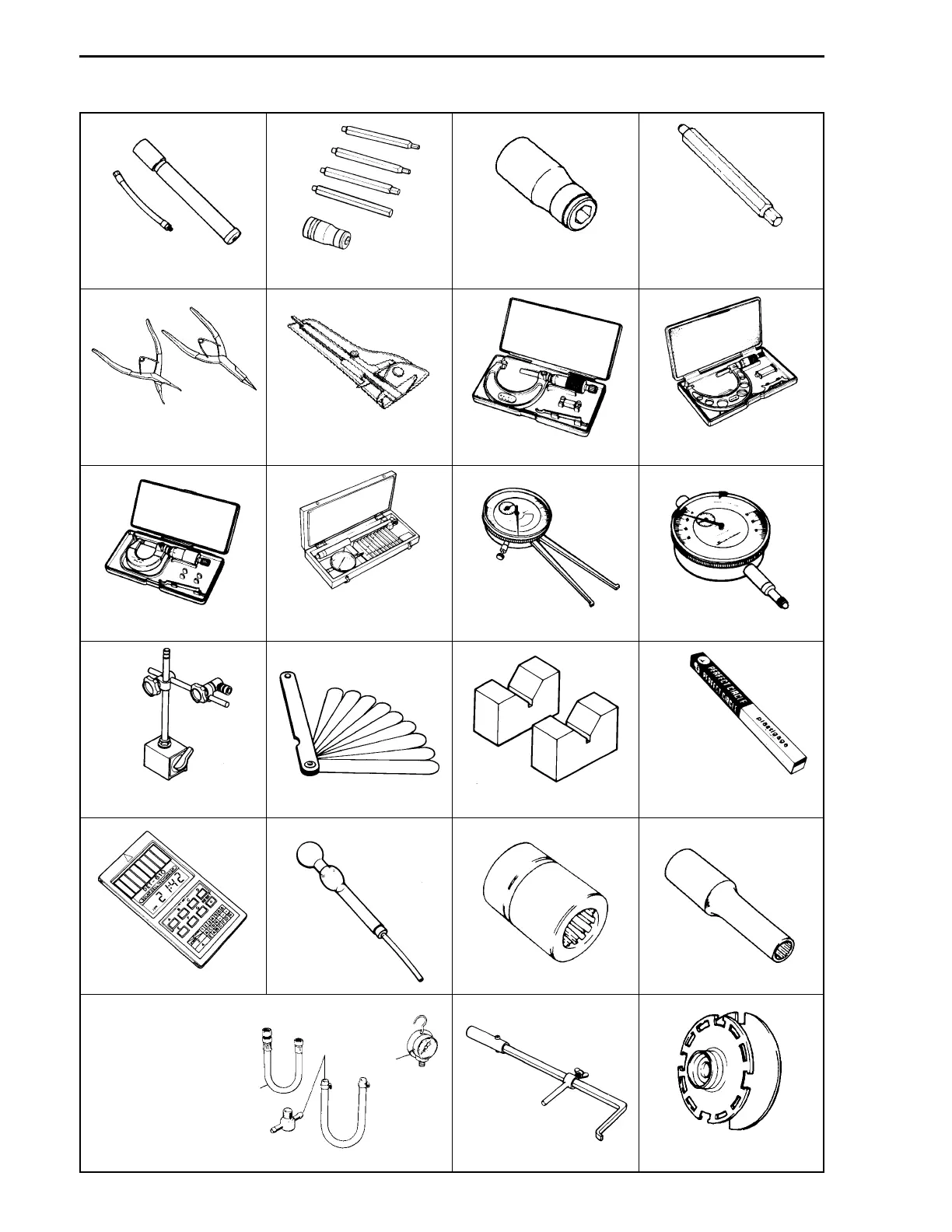

SPECIAL TOOLS
1. 2. 3. 4.
5. 6. 7. 8.
9. 10. 11. 12.
13. 14. 15. 16.
17. 18. 19. 20.
21. 22. 23.
09821-00004
Air pump Assy
(A) 09900-06107
(B) 09900-06108
Snap ring pliers
09900-20205
Micrometer (0 – 25 mm)
09900-20701
Magnetic stand
09900-26006
Engine tachometer
(1) 09912-58441
Fuel pressure gauge
(2) 09912-58431
Fuel pressure hose
(3) 09912-58490
3-way joint & hose
09900-00410
Hexagon wrench set
09900-20101 (150 mm)
09900-20102 (200 mm)
Vernier calipers
09900-20508
Cylinder gauge set
(40 – 80 mm)
09900-20803
Thickness gauge
09900-28403
Hydrometer
09900-00411
Hexagon socket
(included in 09900-00410)
09900-20202
Micrometer (25 – 50 mm)
09900-20605
Dial calipers (10 – 34 mm)
09900-21304
Steel “V” block set
09921-29510
Driveshaft holder
09913-50121
Oil seal remover
09900-00413 (5 mm)
09900-00414 (6 mm)
Hexagon bit
(included in 09900-00410)
09900-20203
Micrometer (50 – 75 mm)
09900-20606
Dial gauge
09900-22302
(0.051 – 0.125 mm)
09900-22301
(0.025 – 0.076 mm)
Plastigauge
09919-16010
Deep socket wrench
09914-79410
Test wheel
(A)
(B)
(1)
(2)
(3)

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
