Suzuki DF 50 Service Manual

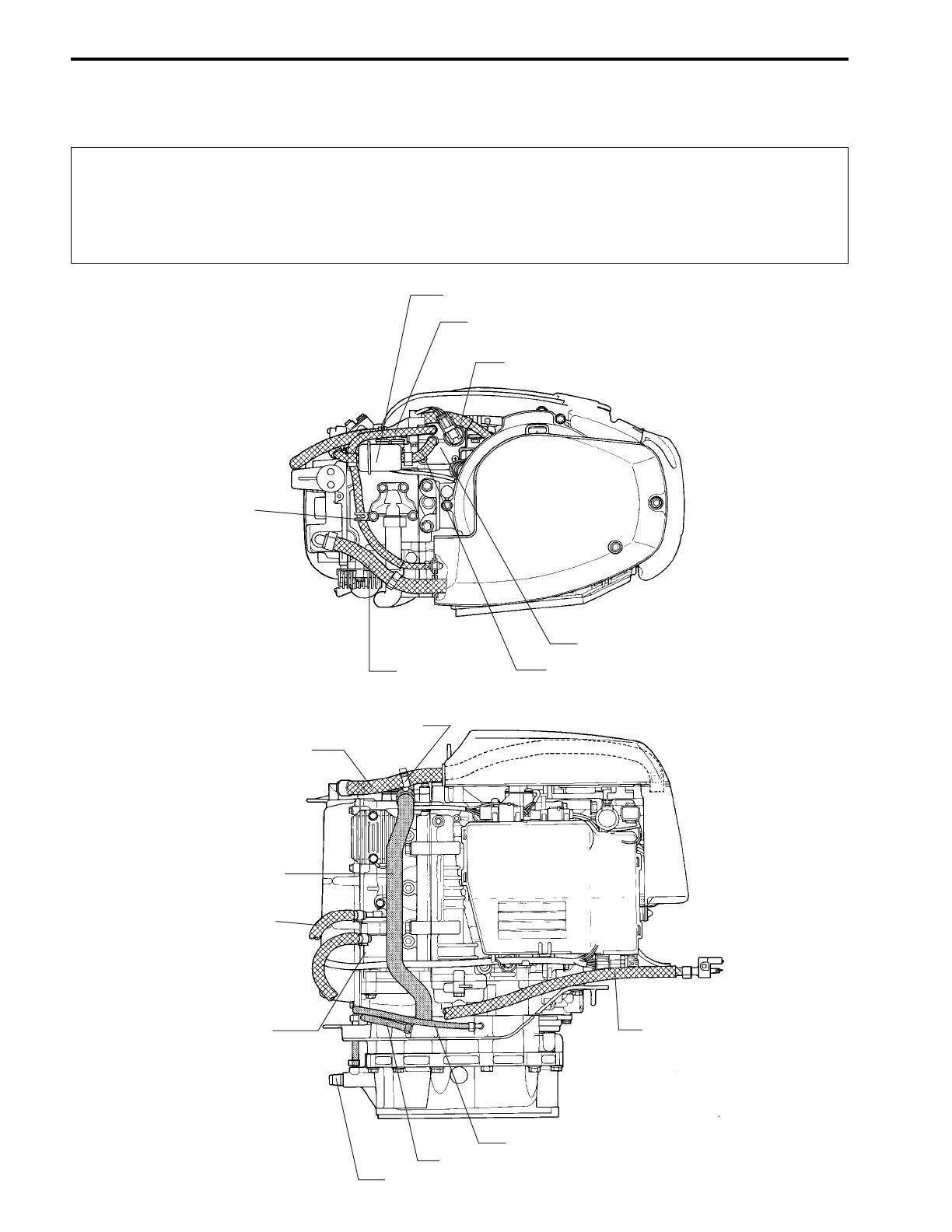

10-7 WIRE / HOSE ROUTING
High pressure fuel filter
Evaporation hose / Protector
(Vapor separator to flywheel cover)
Fuel hose / Protector
(Low fuel pump to vapor separator)
Vapor separator
Fuel hose
(Vapor separator to H fuel filter)
.
Breather hose
Clamp
Clamp
Breather hose
Water return hose
Fuel hose / Protector
(Fuel filter to Low fuel pump)
Fuel filter
Water hose (Engine holder to 3-way)
Water hose (Engine holder to vapor separator)
Pilot water hole
Fuel hose / Protector
(fuel connector to fuel filter)
FUEL / WATER HOSE ROUTING
B
• Do not over-bend (kink) or twist hoses when installing.
• When installing hose clips, position tabs to avoid contact with other parts.
• Check that hoses do not contact rods and levers during either engine operation or standstill.
• Extreme care should be taken not to cut, abrade or cause any other damage on hoses.
• Care should be taken not to cause hoses to be compressed excessively by any clamp when fitted.

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
