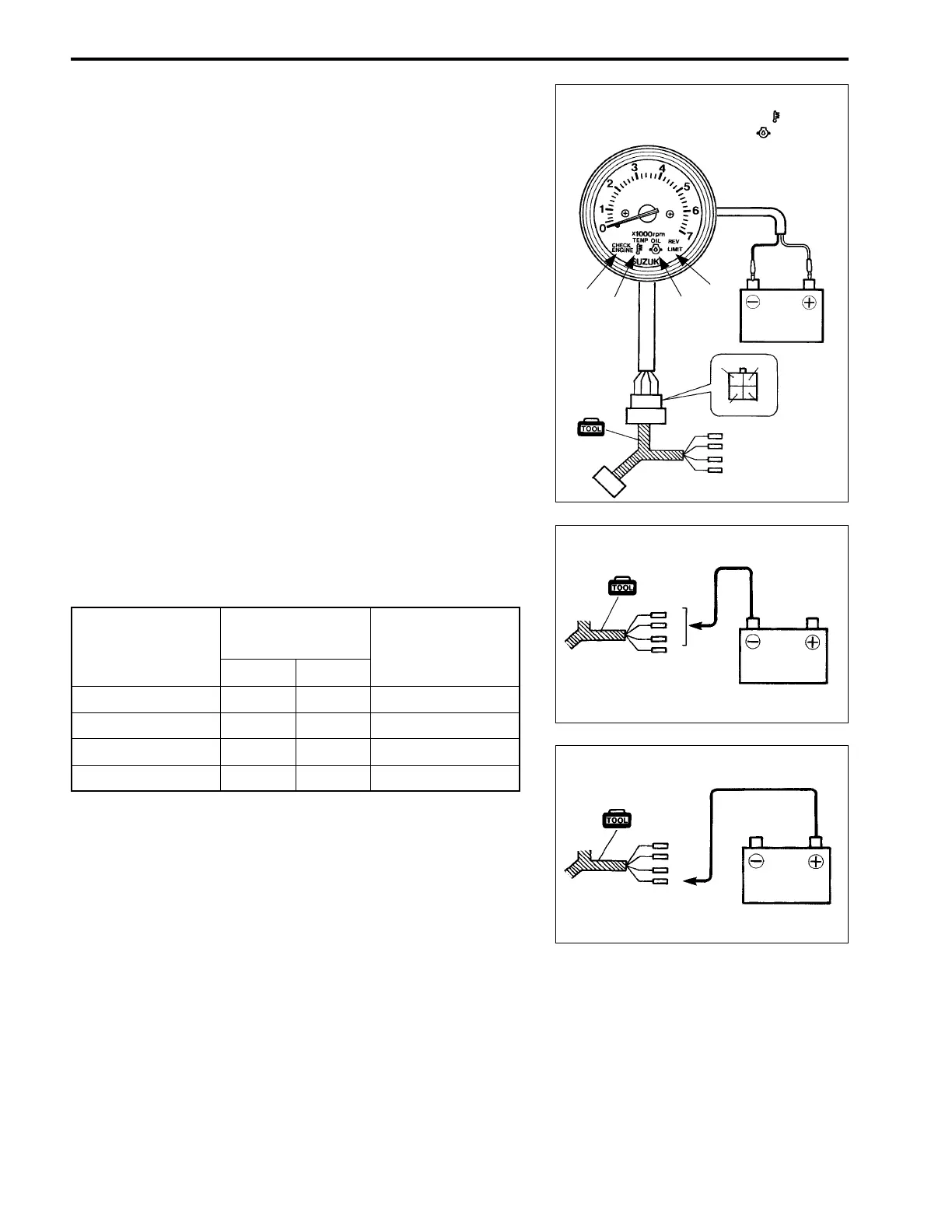

4-17 ELECTRICAL
MONITOR-TACHOMETER
INSPECTION
MONITOR LAMP CHECK
(1) Connect the test cord as shown.
09930-89240 : 4-pin test cord
NOTE:
This check can be performed without the test cord (P/no. 09930-
89240). If it is not available, directly connect battery to terminal
of meter.
(2) Apply 12V power to meter. Connect Gray wire to positive (+)
terminal, and Black wire to negative (–) terminal of battery.
(3) Check if lamp lights when connecting battery to test cord
terminal as shown.
Monitor lamp check:
If out of specification, replace monitor-tachometer.
Battery terminal
Terminal for
battery connection
Test cord Meter
Lighting lamp
Negative (–) Bl G/W Lamp 1
Negative (–) W G/Y Lamp 2
Negative (–) Y Bl/B Lamp 3
Positive (+) R P Lamp 4
1
2
3
4
BGr
12V
Battery
P
G/W
G/Y
Bl/B
11
11
1 “CHECK ENGINE”
22
22
2 TEMP “ ”
33
33
3 OIL “ ”
44
44
4 REV “LIMIT”
12V
Battery
12V
Battery
Bl
W
Y
R
z

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
