Suzuki DF 50 Service Manual

POWER UNIT 6-24

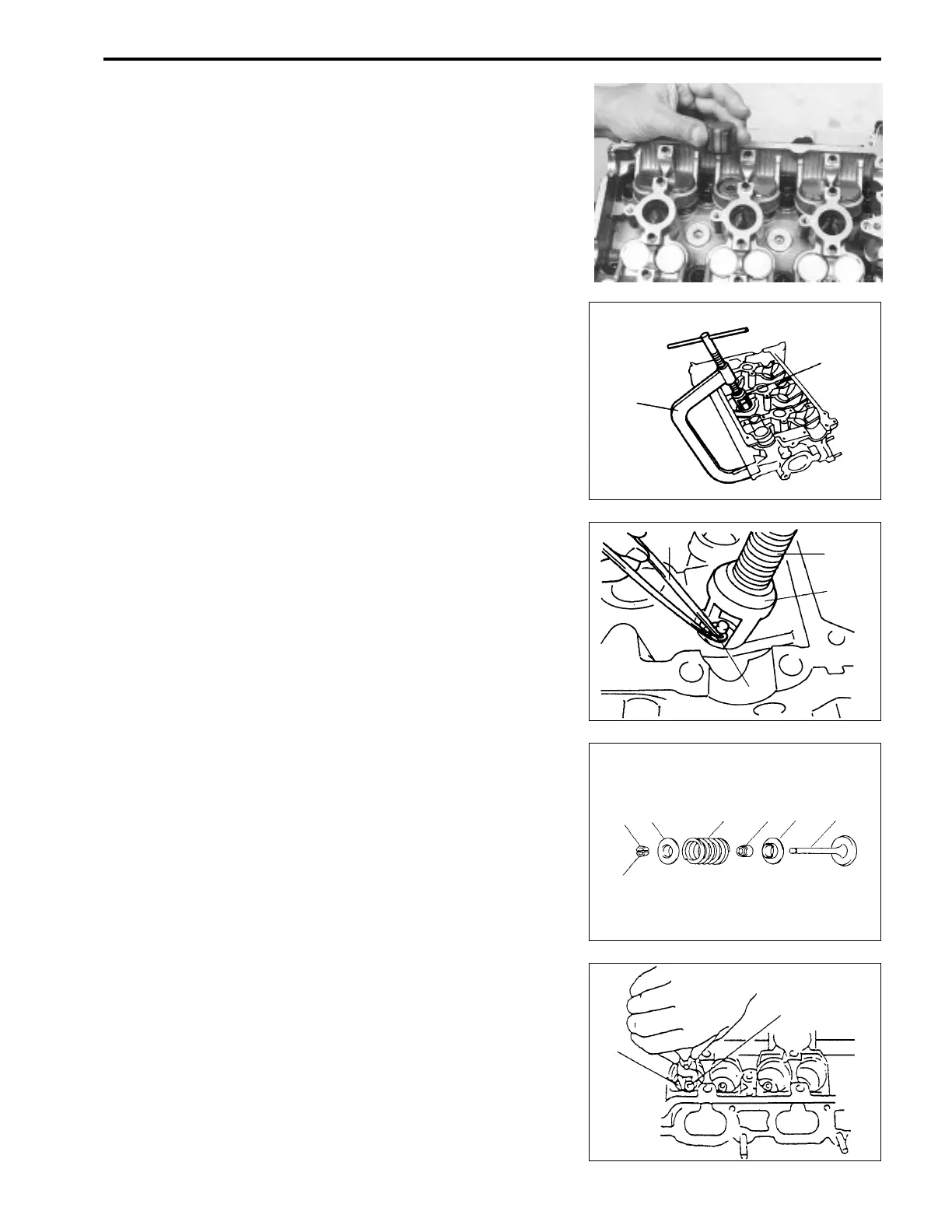

DISASSEMBLY
1. Remove tappets with shims.
2. Using valve lifter and attachment, remove valve cotters 1
while compressing valve spring.
09916-14510 : Valve lifter
09916-14910 : Attachment
09916-84511 : Tweezers
3. Remove valve spring retainer 2, valve spring 3 and valve
4.
4. Remove valve stem seal 5 and valve spring seat 6.
NOTE:
Reassemble each valve and valve spring in their original posi-
tions.
z
z
z
z
z
1
1
2
3
5
64
1
5
6
z

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
