DF40QH / DF50QH 25
INSTALLATION
Installation is reverse order of removal with special attention
to the following steps.

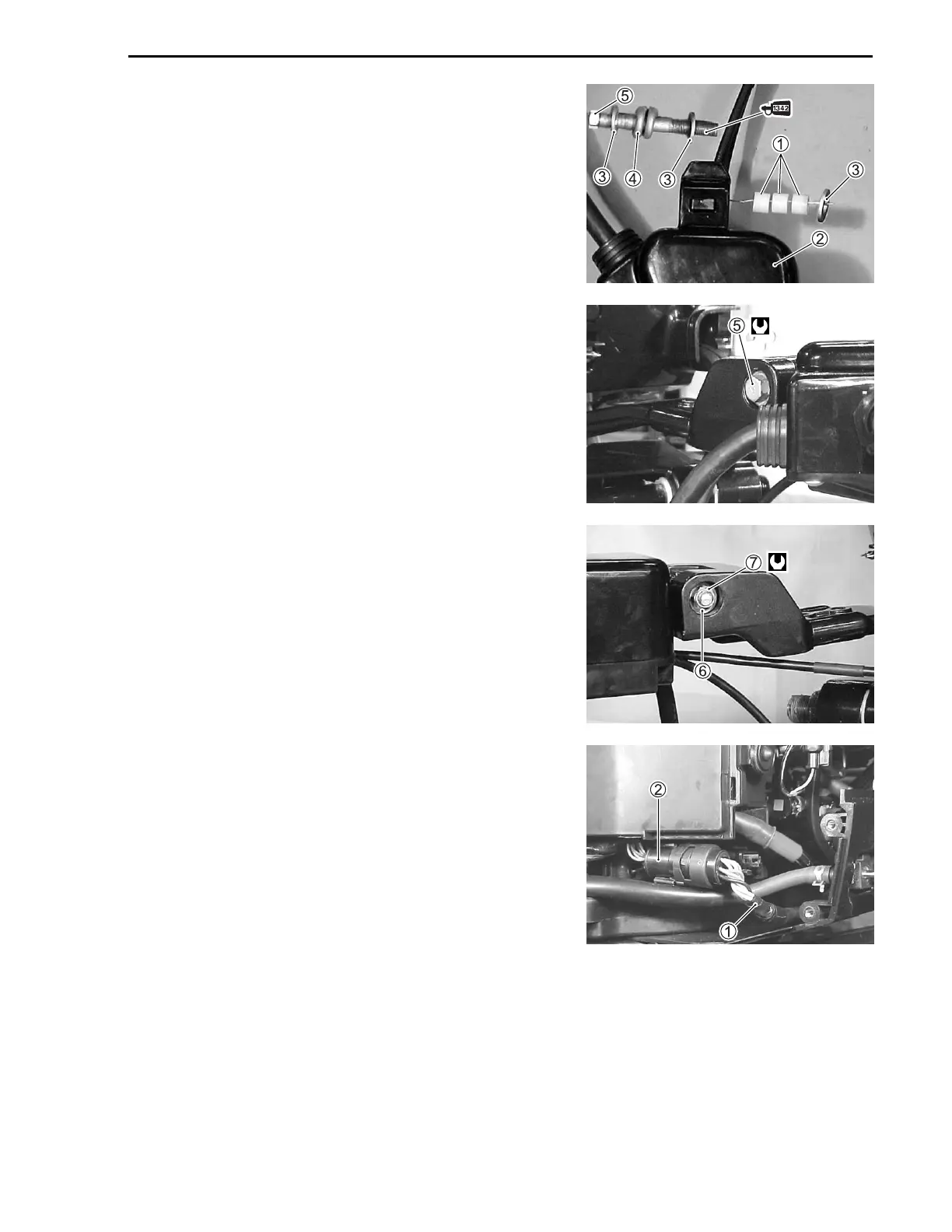

Tiller handle assembly
• Install three (3) nylon bushes 1 into tiller handle mounting
hole and set tiller handle 2 on handle bracket.
• Place three (3) washers 3 and spring 4 into position.
Insert handle pivot bolt 5.
Coat pivot bolt threads with thread lock and tighten pivot
bolt to specified torque.
@@
@@
@ Handle pivot bolt: 45 N
.
m (4.5 kg-m, 32.5 lb.-ft.)
hh
hh
h 99000-32050: Thread Lock 1342
• Install washer 6, nut 7 and tighten nut to specified torque.
@@
@@
@ Handle pivot nut: 45 N
.
m (4.5 kg-m, 32.5 lb.-ft.)
Handle wire harness
Route the handle wire harness 1 as shown in figure.
Connect handle wire harness connector to engine wiring har-
ness 2.

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
