20 DF40/50 “K6” (’06) MODEL

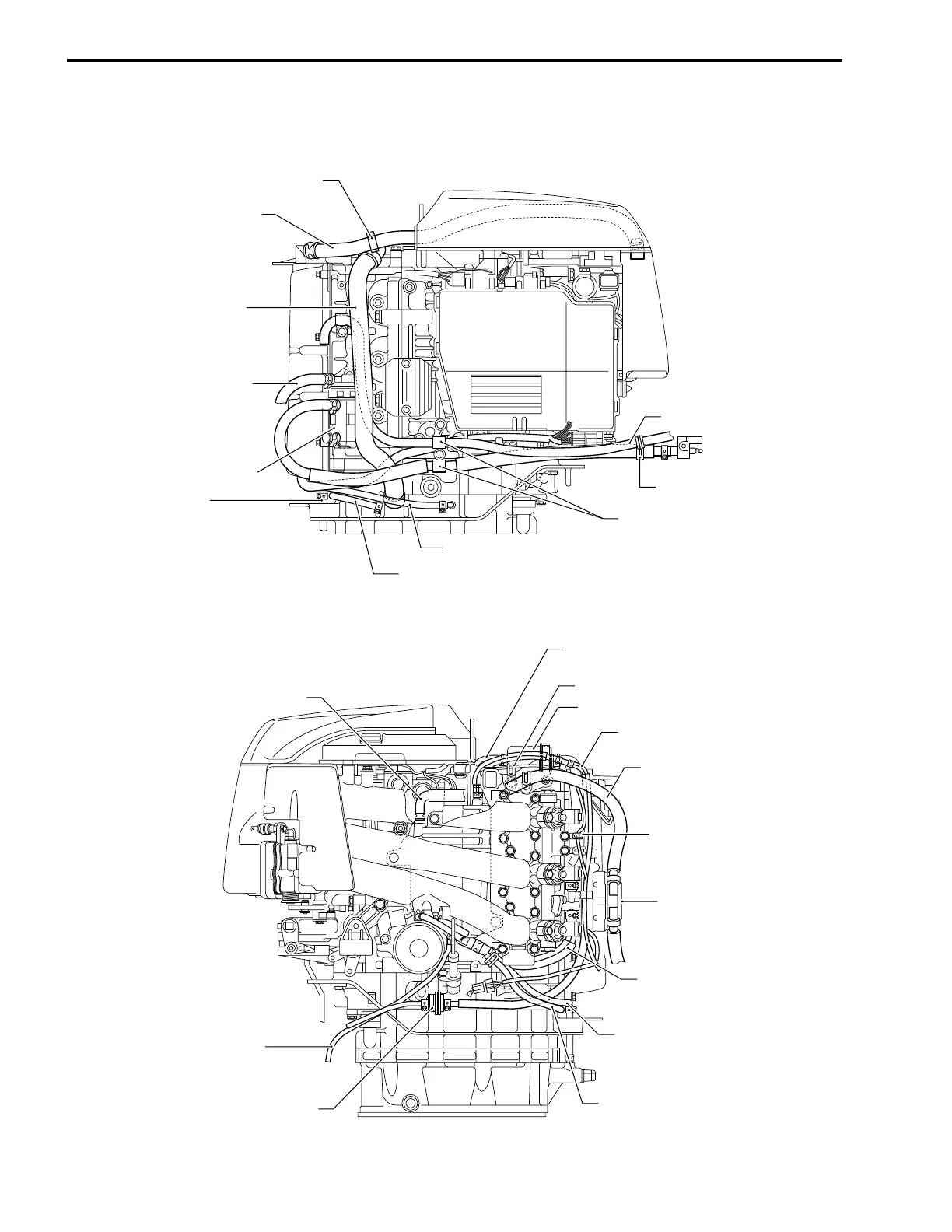

FUEL HOSE ROUTING
Clamp
Breather hose
Water return hose
Clamp
Clamp
High pressure fuel filter
Fuel hose
(Vapor separator to H·fuel filter
Evaporation hose
(3-way to fuel filter)
IAC hose
Fuel hose/Protector
(Low fuel pump to
vapor separator)
Fuel hose/Protector
(Fuel filter to
L·fuel pump)
Fuel filter
Water hose
(3-way joint to
Pilot water hole)
Water hose (Engine holder to Vapor separator)
Water hose (Engine holder to 3-way joint)
Clamp
Hose clamp
Evaporation hose
Fuel filter
Fuel hose
(Pump to separator)
Low pressure fuel pump
Water hose
(Engine holder to vapor
separator)
Water hose
(3-way to vapor separator)
Fuel hose/Protector
(3-way joint to vapor separator)

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
