Suzuki DF 50 Service Manual

ELECTRICAL 4-6
ELECTRIC STARTER SYSTEM
OUTLINE

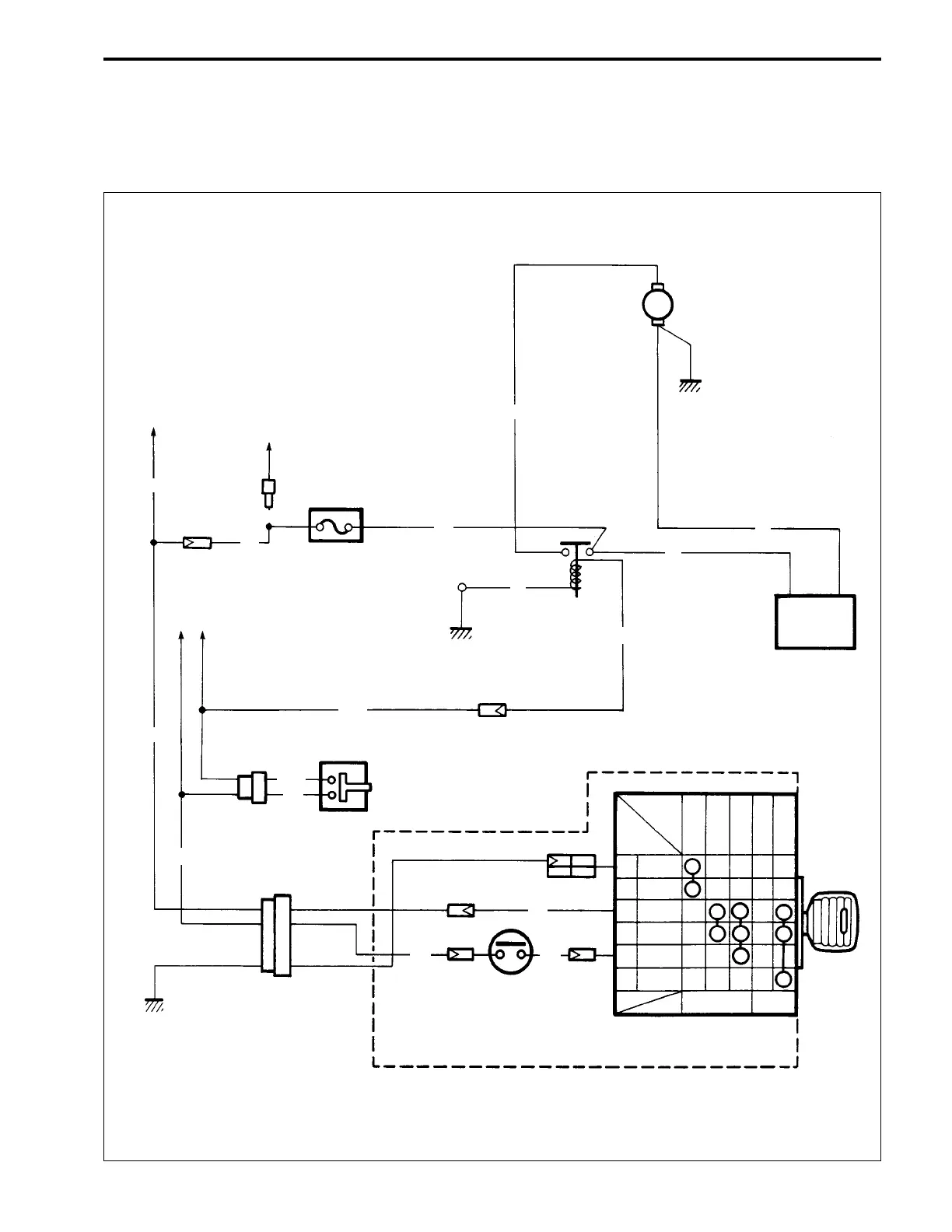

The circuit of the electric starter system is illustrated below.
This circuit is mainly composed of Battery, Starter motor, Relay, Neutral switches and Ignition switch.
To ECM
main relay
To Rectifier
& regulator
30A Fuse
To ECM
Neutral switch
Neutral switch
Remote control box
Ignition
switch
Battery
-+
Starter motor
M
B
W
Br
GND
BATT
START
OFF ON START FREE PUSH
BrBr
W
W
W
W
W
R
B
R
B
W
Br
Br
Y/G
Y/G
Y/G

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
