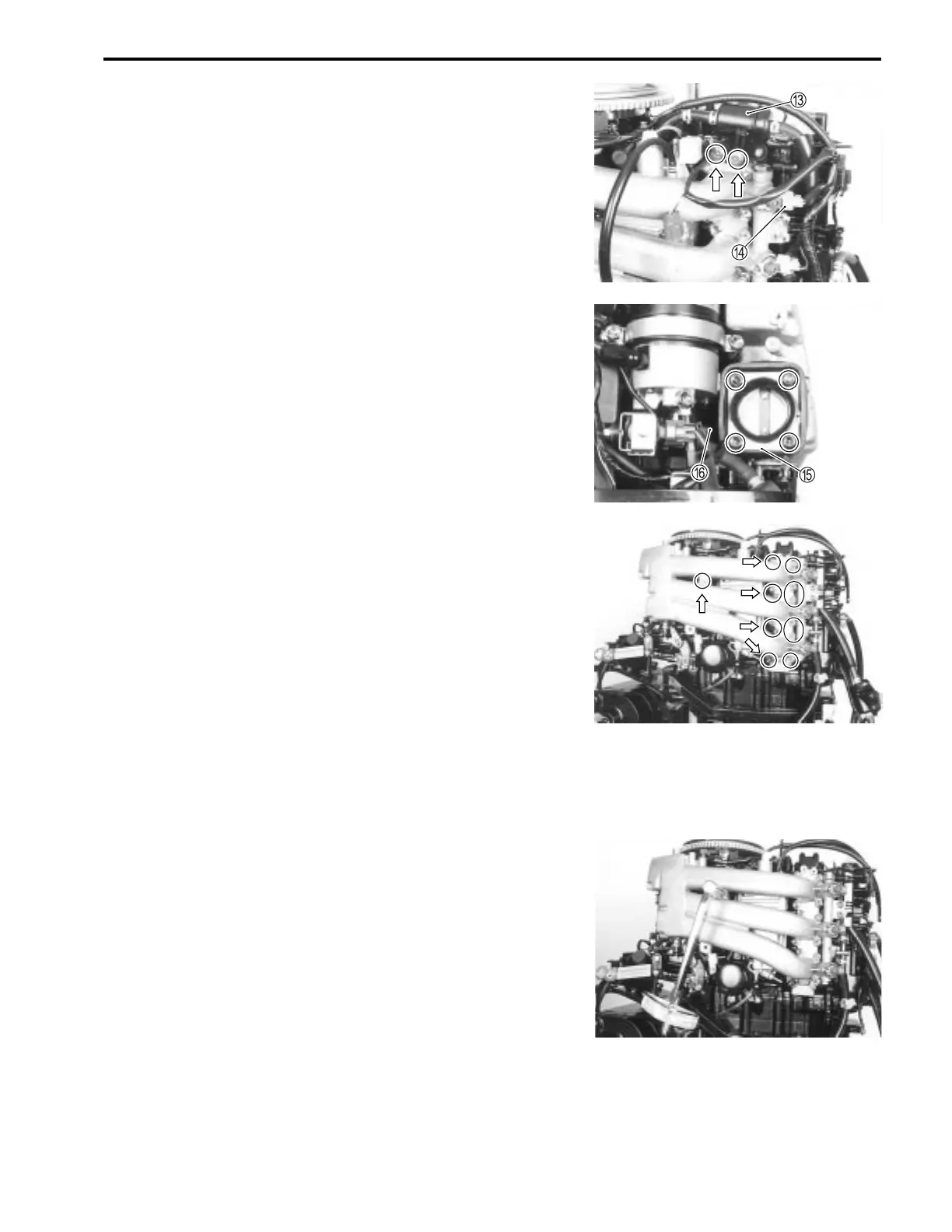

POWER UNIT 6-2
10. Remove two bolts and high pressure fuel filter C.
11. Disconnect lead wire connectors
D from all fuel injectors.
12. Remove four (4) bolts and Throttle body
E.
Remove IAC valve hose
F from Throttle body.
13. Remove bolts and nuts, and then remove intake manifold
assembly
G.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
NOTE:
Do not re-use gasket. Always use a new gasket.
• Install gasket and intake manifold.
• Tighten bolts and nuts securely.
• Check to ensure that all removed parts are back in place.
Checking
• Check fuel and water hose routing.
(See page 10-7 to 10-9)
• Check wire routing (See page 10-1 to 10-6)
• Check for fuel leakage. (See page 5-3)
• Check for water leakage.

Table of Contents

Other manuals for Suzuki DF 50

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki DF 50 and is the answer not in the manual?

Suzuki DF 50 Specifications

General IconGeneral
Engine Type4-Stroke
Cylinders3
Displacement941 cc
Starting SystemElectric
SteeringRemote
Engine Type DetailDOHC 12-Valve
Maximum Output50 HP
Ignition SystemDigital CDI
Alternator12V 19A
Gear Ratio2.27:1
ExhaustThrough Prop Hub Exhaust
Trim MethodPower Trim and Tilt
Max Power50 HP
Alternator Output12V 19A
Fuel Delivery SystemSequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range5, 300 - 6, 300 rpm
Engine Oil Capacity2.7 L
Full Throttle RPM Range5300 - 6300 RPM
Oil Capacity2.7 L
Bore x Stroke72.5 x 76.0 mm (2.85 x 2.99 in.)
