7-16 ELECTRICAL SYSTEM

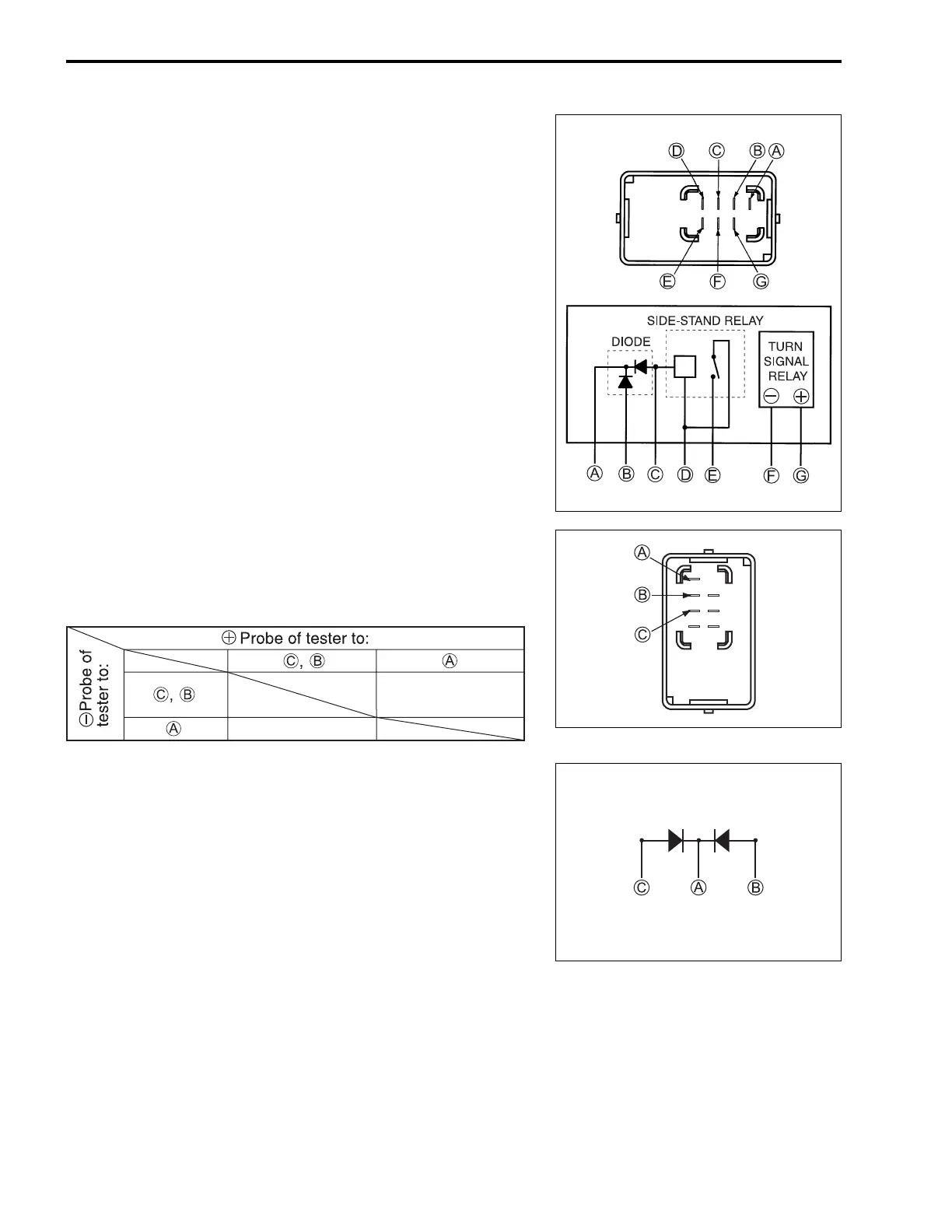

SIDE-STAND RELAY INSPECTION
First check the insulation between
D and E terminals with the
tester. Then apply 12 V to terminals
D and C ( + to D and -
to
C) and check the continuity between D and E. If there is no
continuity, replace the turn signal/side-stand relay with a new
one.
# 09900-25008: Multi circuit tester set
+ Tester knob indication: Continuity test (,)
DIODE INSPECTION
Measure the voltage between the terminals using the multi cir-
cuit tester. Refer to the following table.
# 09900-25008: Multi circuit tester set
) Tester knob indication: Diode test (*
**
*)
NOTE:
If the multi circuit tester reads under 1.4 V when the tester
probes are not connected, replace its battery.
More than 1.4 V
(Tester’s battery voltage)
0.4 – 0.6
Unit: V
