[3] LUBRICATING SYSTEM

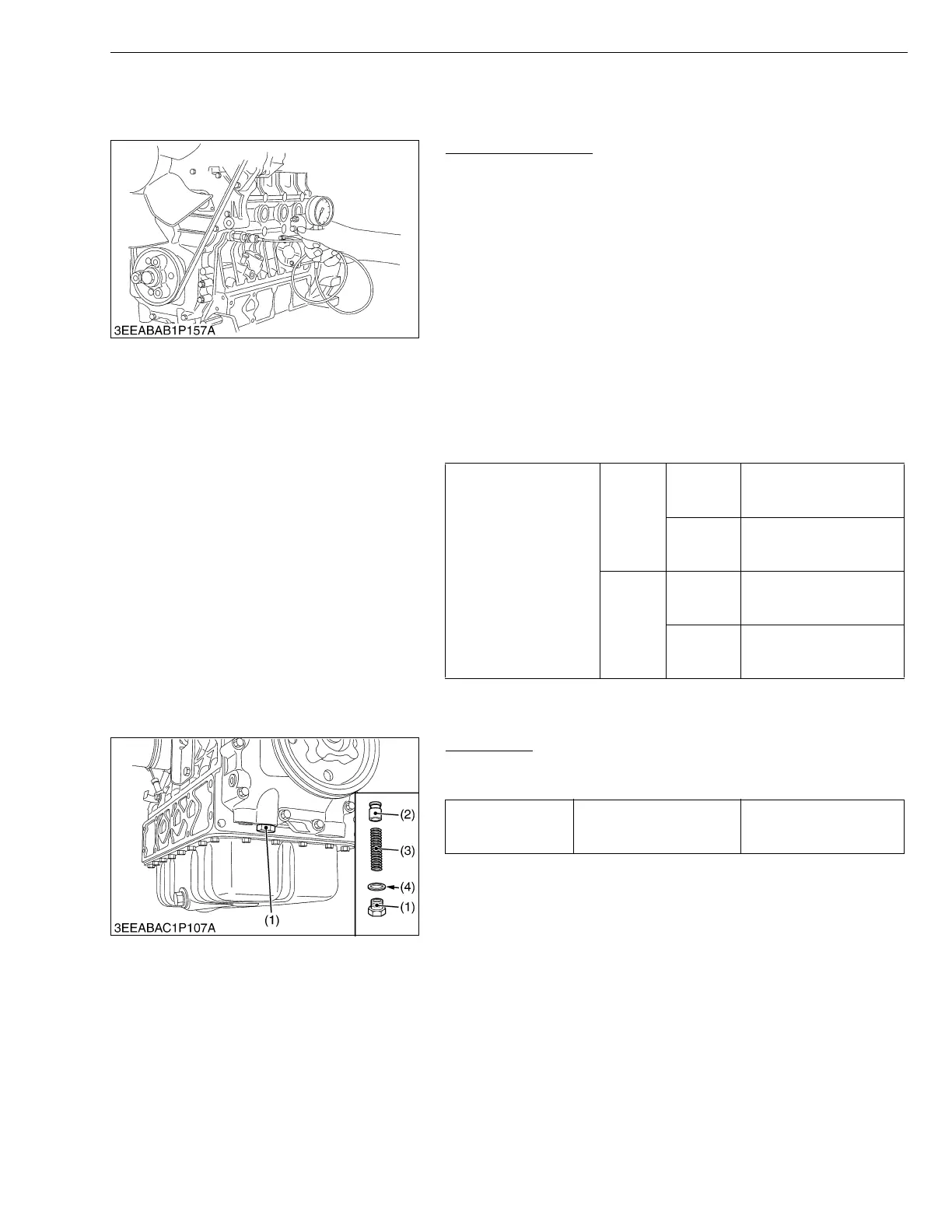

(1) Checking
Engine Oil Pressure
1. Remove the oil switch and set a pressure tester (Code No.
07916-32031).
2. Start the engine. After warming up, measure the oil pressure of
both idling and rated speeds.
3. If the oil pressure is less than the allowable limit, check the
following.
• Engine oil insufficient
• Oil pump defective
• Oil strainer clogged
• Oil filter cartridge clogged
• Oil gallery clogged
• Excessive oil clearance of bearing
• Foreign matter in the relief valve
(When reassembling)
• After checking the engine oil pressure, tighten the engine oil
pressure switch to the specified torque.
W1041543
(2) Disassembling and Assembling
Relief Valve
1. Remove the bolt (1).
2. Remove the relief valve (2), the spring (3) and the packing (4).
W1041886
Engine oil pressure
At idle
speed
Factory
spec.
98 kPa
1.0 kgf/cm
2
14 psi
Allowable
limit
49 kPa
0.5 kgf/cm
2
7 psi
At rated
speed
Factory
spec.
196 to 392 kPa
2.0 to 4.0 kgf/cm
2
28 to 56 psi
Allowable
limit
147.1 kPa
1.5 kgf/cm
2
21.3 psi
Tightening torque Relief valve
68.6 to 78.4 N·m
7.0 to 8.0 kgf·m
50.6 to 57.9 lbf·ft
(1) Bolt
(2) Relief Valve
(3) Spring
(4) Packing
